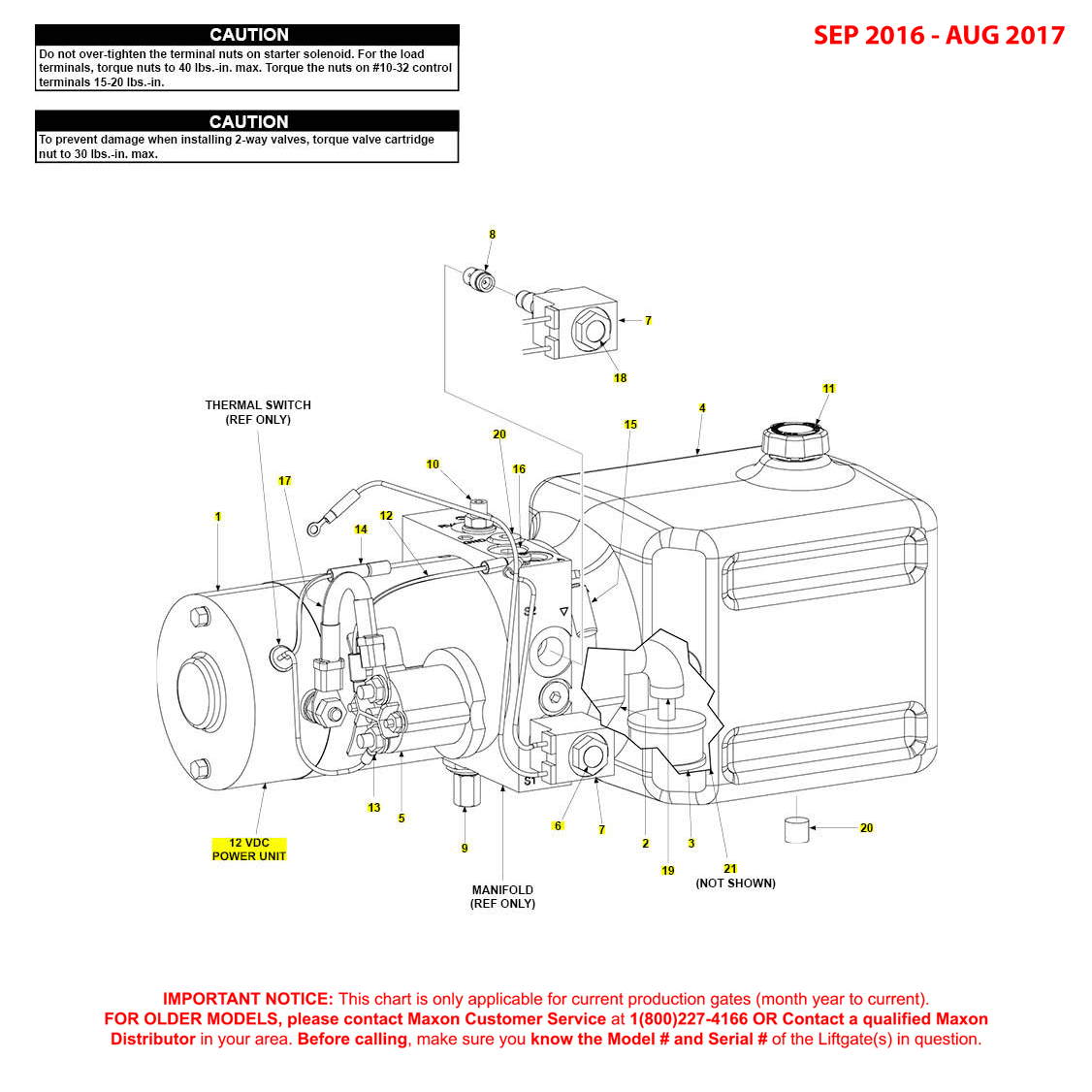

Maxon GPT (Sep 2016 - Aug 2017) 12VDC Power Unit Diagram

Maxon GPT (Sep 2016 – Aug 2017) 12VDC Power Unit Diagram

SKU: GPT-SEP16-AUG17-12VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 295785-01 - 12 VDC Power Unit 204 H/DutyMaxon 295785-01 - 12 VDC Power Unit 204 H/Duty295785-01-MAXO$1,174.88
1Maxon 290152 - Motor DC 12V 4.5 Inch 1TRM NC THMMaxon 290152 - Motor DC 12V 4.5 Inch 1TRM NC THM290152-MAXO$893.55
2Maxon 290150 - Pump Assembly QM MDLR DC BRGS BLD RSVMaxon 290150 - Pump Assembly QM MDLR DC BRGS BLD RSV290150-MAXO$698.15
4Maxon 290145 - Reservoir Plastic 6.7 X 6.7 X 9.0 H/MTMaxon 290145 - Reservoir Plastic 6.7 X 6.7 X 9.0 H/MT290145-MAXO$203.88
5Maxon 284080-01 - Switch Solenoid AssemblyMaxon 284080-01 - Switch Solenoid Assembly284080-01-MAXO$33.11
6Maxon 290153 - Cartridge 4-W/2-P 8 1/2 Inch StemMaxon 290153 - Cartridge 4-W/2-P 8 1/2 Inch Stem290153-MAXO$217.26
7Maxon 290169 - Coil 10VDC 8 Dual Lead 10 RingMaxon 290169 - Coil 10VDC 8 Dual Lead 10 Ring290169-MAXO$174.54
8Maxon 269417 - Cartridge 2W/2P NC Poppet 4000Maxon 269417 - Cartridge 2W/2P NC Poppet 4000269417-MAXO$192.21
9Maxon 290171 - Valve Max VM01 HDM 10 T.30-95Maxon 290171 - Valve Max VM01 HDM 10 T.30-95290171-MAXO$71.18
10Maxon 290158 - Valve Assembly R/V 1001 PSI And UpMaxon 290158 - Valve Assembly R/V 1001 PSI And Up290158-MAXO$55.17
17Maxon 290148 - Cable Insulated W/Lugs 4G 6LMaxon 290148 - Cable Insulated W/Lugs 4G 6L290148-MAXO$32.91
19Maxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPTMaxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPT290141-MAXO$11.30
21Maxon 290143 - Tube Return 90 DEG 1/8NPT 3 3/8Maxon 290143 - Tube Return 90 DEG 1/8NPT 3 3/8290143-MAXO$14.22

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
