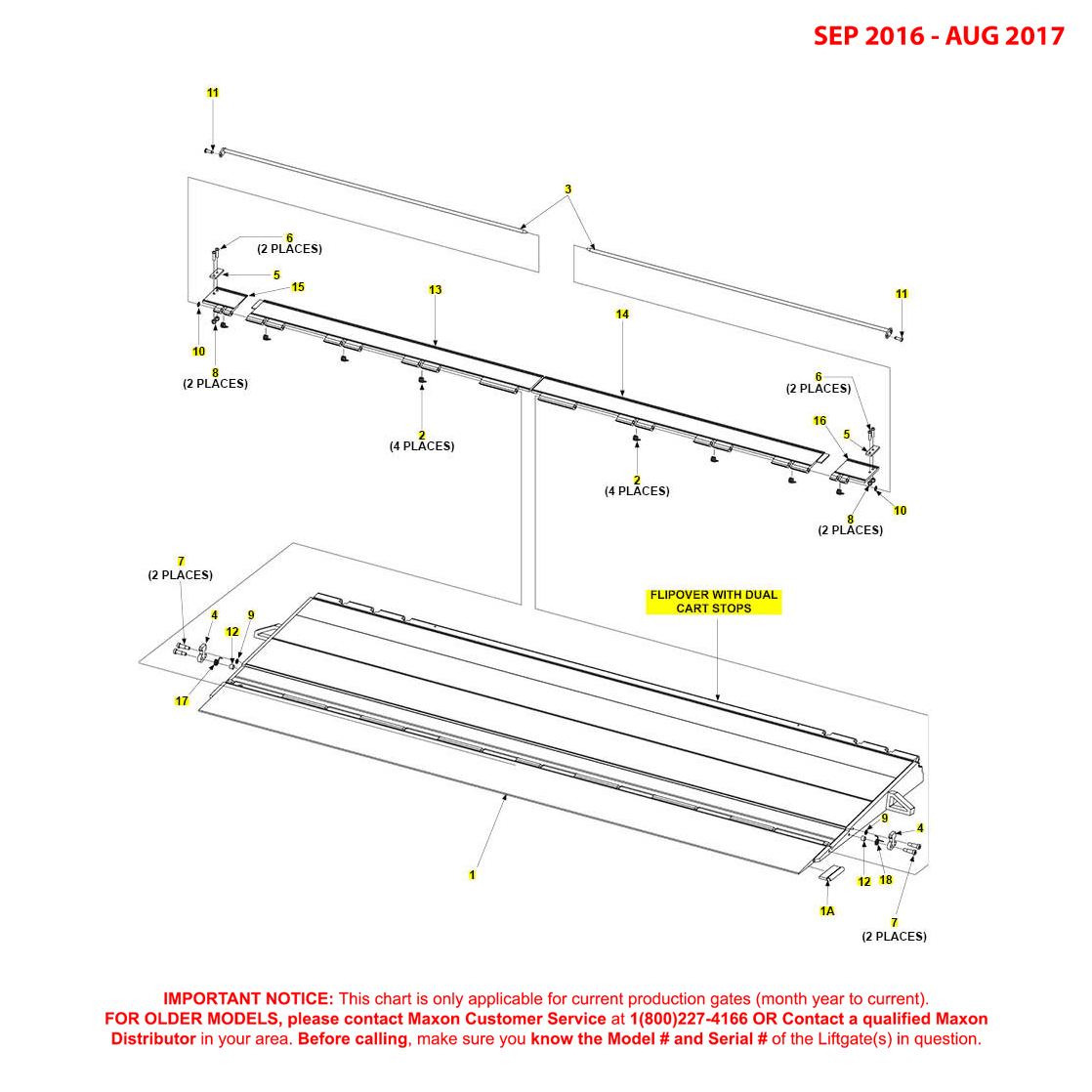

Maxon GPT (Sep 2016 - Aug 2017) Flipover With Dual Cart Stops Diagram

Maxon GPT (Sep 2016 – Aug 2017) Flipover With Dual Cart Stops Diagram

SKU: GPT-SEP16-AUG17-FO-DCS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286102-02 - F/O Assembly AL DCS GPTMaxon 286102-02 - F/O Assembly AL DCS GPT286102-02-MAXO$2,628.60
0Maxon 286102-102 - F/O Assembly AL DCS GPT MaxGripMaxon 286102-102 - F/O Assembly AL DCS GPT MaxGrip286102-102-MAXO$2,888.93
0Maxon 286102-202 - F/O Assembly AL DCS GPT A/SKDMaxon 286102-202 - F/O Assembly AL DCS GPT A/SKD286102-202-MAXO$3,207.75
1Maxon 265819-01 - Handle-Weldment AL F/OMaxon 265819-01 - Handle-Weldment AL F/O265819-01-MAXO$20.94
1Maxon 286104-01 - F/O Weldment AL C/Stop GPTMaxon 286104-01 - F/O Weldment AL C/Stop GPT286104-01-MAXO$1,087.13
2Maxon 282729-01 - Spring C/S .08 Wire 302 SSMaxon 282729-01 - Spring C/S .08 Wire 302 SS282729-01-MAXO$12.39
3Maxon 282738-01 - Pin Weldment Cart StopMaxon 282738-01 - Pin Weldment Cart Stop282738-01-MAXO$48.32
4Maxon 282739-01 - Hook Cart Stop LockingMaxon 282739-01 - Hook Cart Stop Locking282739-01-MAXO$25.01
5Maxon 282748-01 - Flat C/S Lock SupportMaxon 282748-01 - Flat C/S Lock Support282748-01-MAXO$16.68
6Maxon 900005-4 - Screw Button 1/4-20 X 1 AlloyMaxon 900005-4 - Screw Button 1/4-20 X 1 Alloy900005-4-MAXO$0.90
7Maxon 900723-05 - Screw SHLDR .38 X .75 Inch LG SSMaxon 900723-05 - Screw SHLDR .38 X .75 Inch LG SS900723-05-MAXO$4.44
8Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
9Maxon 902000-8 - Flat Washer - .312 .063 THKMaxon 902000-8 - Flat Washer - .312 .063 THK902000-8-MAXO$0.32
10Maxon 903402-08 - Washer Flat Nylon .38ID X .56ODMaxon 903402-08 - Washer Flat Nylon .38ID X .56OD903402-08-MAXO$0.18
11Maxon 903715-06 - Rivet BL/DM AL/AL .25 X .62-.75Maxon 903715-06 - Rivet BL/DM AL/AL .25 X .62-.75903715-06-MAXO$0.57
12Maxon 905328-01 - Bearing NYL .38ID X .5OD X .38LGMaxon 905328-01 - Bearing NYL .38ID X .5OD X .38LG905328-01-MAXO$2.07
13Maxon 286098-02 - Dual Cart Stop LH F/OMaxon 286098-02 - Dual Cart Stop LH F/O286098-02-MAXO$123.48
14Maxon 286098-03 - Dual Cart Stop RH F/OMaxon 286098-03 - Dual Cart Stop RH F/O286098-03-MAXO$123.48
15Maxon 286099-01 - Lock-Hinge Cart Stop LHMaxon 286099-01 - Lock-Hinge Cart Stop LH286099-01-MAXO$23.00
16Maxon 286099-02 - Lock-Hinge Cart Stop RHMaxon 286099-02 - Lock-Hinge Cart Stop RH286099-02-MAXO$23.00
17Maxon 282749-01 - Spring LH Hook .078 Wire 302SSMaxon 282749-01 - Spring LH Hook .078 Wire 302SS282749-01-MAXO$8.30
18Maxon 282749-02 - Spring RH Hook .078 Wire 302SSMaxon 282749-02 - Spring RH Hook .078 Wire 302SS282749-02-MAXO$8.30

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
