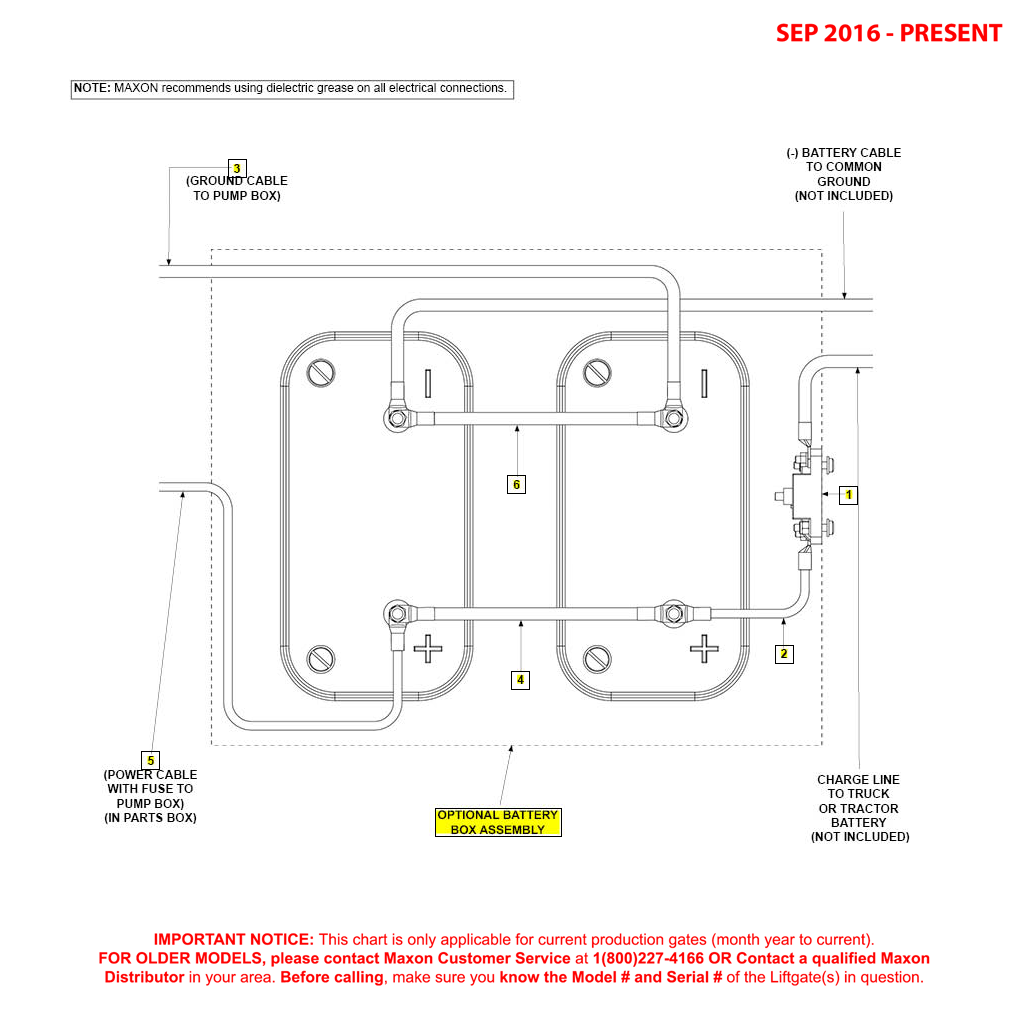

Maxon GPT (Sep 2016 - Present) Optional Battery Box Electrical Components Diagram
,

Maxon GPT (Sep 2016 – Present) Optional Battery Box Electrical Components Diagram

SKU: GPT-SEP16-PRES-OBBEC-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
1Maxon 907207-01 - Circuit Breaker 150 AMPMaxon 907207-01 - Circuit Breaker 150 AMP907207-01-MAXO$62.87
2Maxon 269308-12 - Cable Assembly 2GA Red 12INMaxon 269308-12 - Cable Assembly 2GA Red 12IN269308-12-MAXO$21.50
3Maxon 268226-06 - Cable Assembly 2GA .31 / .38 RING 74 InchMaxon 268226-06 - Cable Assembly 2GA .31 / .38 RING 74 Inch268226-06-MAXO$64.22
4Maxon 269308-10 - Cable Assembly 2 GA Red 8INMaxon 269308-10 - Cable Assembly 2 GA Red 8IN269308-10-MAXO$18.65
5Maxon 264422 - Cable Assembly 175 AMPS 38FTMaxon 264422 - Cable Assembly 175 AMPS 38FT264422-MAXO$344.22
6Maxon 251871-14 - Cable 2 GA Assembly 8 InchMaxon 251871-14 - Cable 2 GA Assembly 8 Inch251871-14-MAXO$29.16

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
