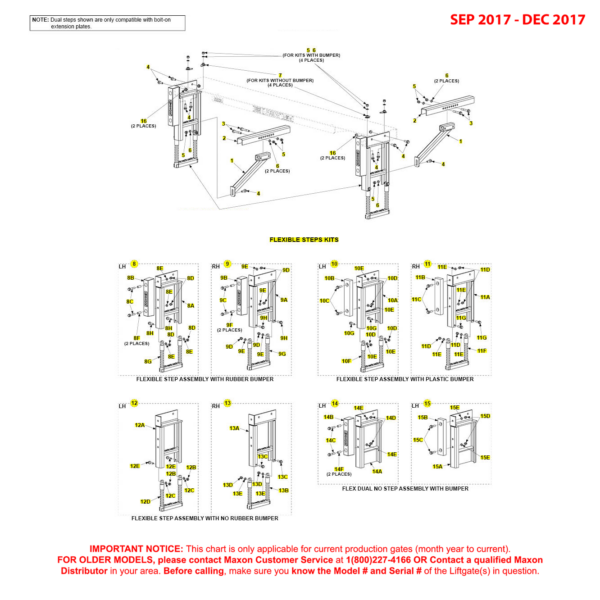

Maxon GPT (Sep 2017 - Dec 2017) Flexible Step Kits Diagram
,

Maxon GPT (Sep 2017 – Dec 2017) Flexible Step Kits Diagram

SKU: GPT-SEP17-DEC17-FSK-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
0Maxon 288705-21G - Kit Dual FLX Steps 14 Inch Rubber Bumper GMaxon 288705-21G - Kit Dual FLX Steps 14 Inch Rubber Bumper G288705-21G-MAXO$1,789.13
0Maxon 288705-22G - Kit Dual FLX Steps 13.5 Inch PE Bumper GMaxon 288705-22G - Kit Dual FLX Steps 13.5 Inch PE Bumper G288705-22G-MAXO$1,799.85
0Maxon 288705-25G - Kit Dual FLX Steps No Bumpers GMaxon 288705-25G - Kit Dual FLX Steps No Bumpers G288705-25G-MAXO$1,708.20
0Maxon 288705-26G - Kit Dual FLX Steps SS NO/STPS NO Bumpers GMaxon 288705-26G - Kit Dual FLX Steps SS NO/STPS NO Bumpers G288705-26G-MAXO$1,356.23
1Maxon 288688-01G - Steps Support Weldment - GALMaxon 288688-01G - Steps Support Weldment - GAL288688-01G-MAXO$119.06
2Maxon 288419-01 - Step Mount ChannelMaxon 288419-01 - Step Mount Channel288419-01-MAXO$80.06
3Maxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LGMaxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LG901024-10-MAXO$2.73
4Maxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LGMaxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LG901024-5-MAXO$1.55
7Maxon 283700-01 - Tear Drop WeldmentMaxon 283700-01 - Tear Drop Weldment283700-01-MAXO$5.93
8Maxon 288690-21G - Dual Step Assembly Flex LH 14 Inch Rubber Bumper GMaxon 288690-21G - Dual Step Assembly Flex LH 14 Inch Rubber Bumper G288690-21G-MAXO$692.00
8Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
8Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
9Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
9Maxon 288680-01 - Step Weldment Flexible LowerMaxon 288680-01 - Step Weldment Flexible Lower288680-01-MAXO$364.43
9Maxon 288690-22G - Dual Step Assembly Flex RH 14 Inch Rubber Bumper GMaxon 288690-22G - Dual Step Assembly Flex RH 14 Inch Rubber Bumper G288690-22G-MAXO$692.00
9Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
9Maxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LGMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG901024-2-MAXO$1.85
9Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
9Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
9Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
10Maxon 288675-21G - Dual Step Weldment Flex LH GMaxon 288675-21G - Dual Step Weldment Flex LH G288675-21G-MAXO$257.22
10Maxon 288680-01 - Step Weldment Flexible LowerMaxon 288680-01 - Step Weldment Flexible Lower288680-01-MAXO$364.43
10Maxon 288690-23G - Dual Step Assembly Flex LH 13.5 Inch PE BMPR GMaxon 288690-23G - Dual Step Assembly Flex LH 13.5 Inch PE BMPR G288690-23G-MAXO$697.43
10Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
10Maxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LGMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG901024-2-MAXO$1.85
10Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
11Maxon 288675-22G - Dual Step Weldment Flex RH GMaxon 288675-22G - Dual Step Weldment Flex RH G288675-22G-MAXO$257.22
11Maxon 288680-01 - Step Weldment Flexible LowerMaxon 288680-01 - Step Weldment Flexible Lower288680-01-MAXO$364.43
11Maxon 288690-24G - Dual Step Assembly Flex RH 13.5 Inch PE BMPR GMaxon 288690-24G - Dual Step Assembly Flex RH 13.5 Inch PE BMPR G288690-24G-MAXO$697.43
11Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
11Maxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LGMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG901024-2-MAXO$1.85
11Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
11Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
11Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
12Maxon 288675-21G - Dual Step Weldment Flex LH GMaxon 288675-21G - Dual Step Weldment Flex LH G288675-21G-MAXO$257.22
12Maxon 288680-01 - Step Weldment Flexible LowerMaxon 288680-01 - Step Weldment Flexible Lower288680-01-MAXO$364.43
12Maxon 288690-27G - Dual Step Assembly Flex LH No Bumper GMaxon 288690-27G - Dual Step Assembly Flex LH No Bumper G288690-27G-MAXO$642.77
12Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
12Maxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LGMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG901024-2-MAXO$1.85
12Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
13Maxon 288675-22G - Dual Step Weldment Flex RH GMaxon 288675-22G - Dual Step Weldment Flex RH G288675-22G-MAXO$257.22
13Maxon 288680-01 - Step Weldment Flexible LowerMaxon 288680-01 - Step Weldment Flexible Lower288680-01-MAXO$364.43
13Maxon 288690-28G - Dual Step Assembly Flex RH No Bumper GMaxon 288690-28G - Dual Step Assembly Flex RH No Bumper G288690-28G-MAXO$451.05
13Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
13Maxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LGMaxon 901024-2 - Bolt Hex Frame - 0.5-13 X 1.75 Inch LG901024-2-MAXO$1.85
13Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
14Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
14Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
14Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
14Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
14Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
15Maxon 288675-23G - Channel Weldment 19.5 Inch LG No Steps LH GMaxon 288675-23G - Channel Weldment 19.5 Inch LG No Steps LH G288675-23G-MAXO$270.96
15Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
15Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
15Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
15Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
16Maxon 901023 - Flange Lock NutMaxon 901023 - Flange Lock Nut901023-MAXO$1.29

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
