| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 0 |  | Maxon 288700-01G - EXT Plate Assembly .25THK GPT 96 Inch GALV | 288700-01G-MAXO | $1,010.72 | ||
| 0 | | Maxon 288700-02G - Galvanized Deck Extension 1/4-Inch Thick For GPT (102 Inch L) | 288700-02G-MAXO | $1,072.50 | ||
| 0 | | Maxon 288700-03G - EXT Plate Assembly .38THK GPT 96 Inch GALV | 288700-03G-MAXO | $1,469.33 | ||
| 1 | | Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565 | 904005-2-MAXO | $0.72 | ||
| 2 | | Maxon 287014-01 - Bracket LIC PL and Light Mount | 287014-01-MAXO | $55.59 |
GPT (Sep 2017 - Jul 2019) Diagrams

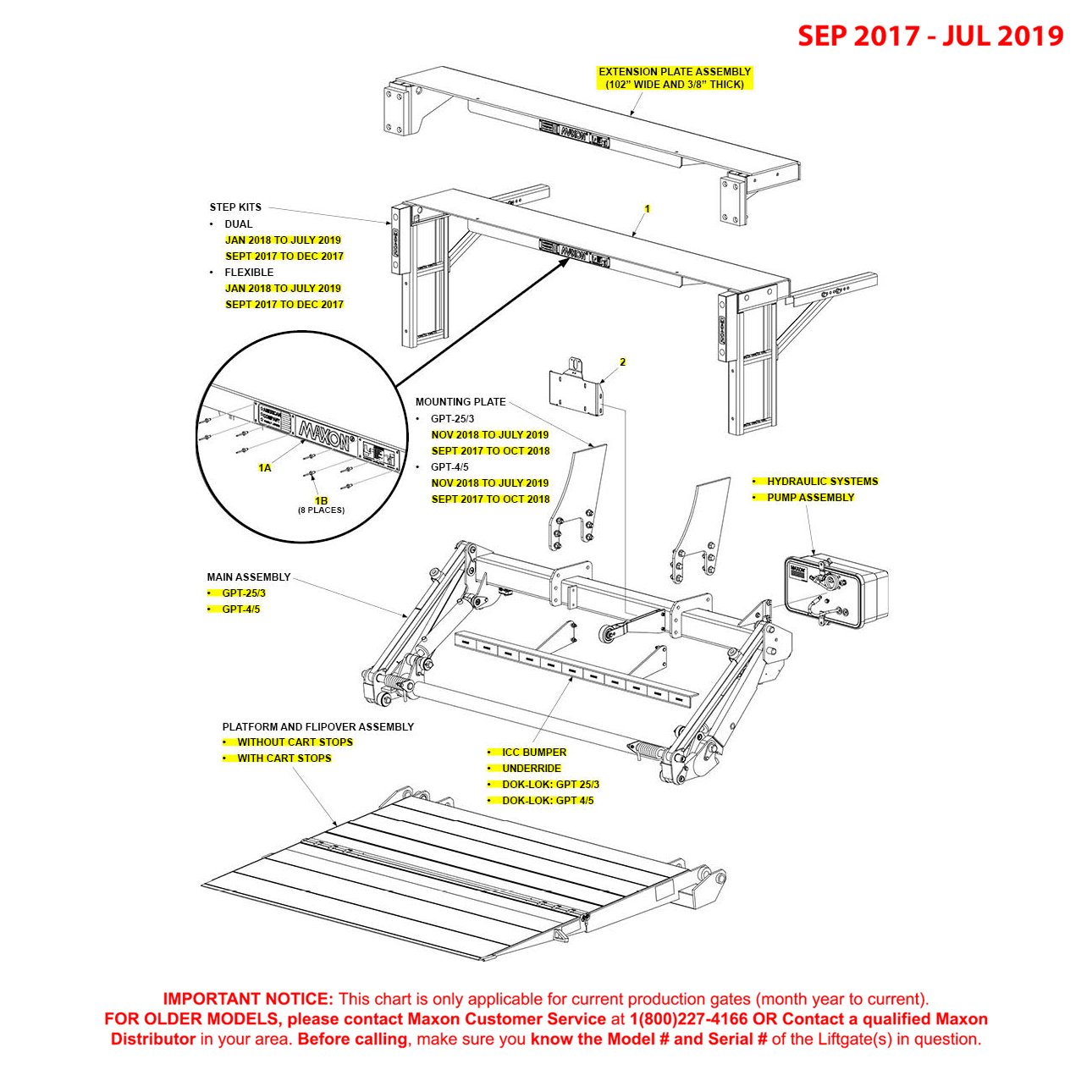

Maxon GPT (Sep 2017 – Jul 2019) Final Assembly Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
