Maxon GPT (Sep 2017 - Jul 2019) Pump Assembly Diagram

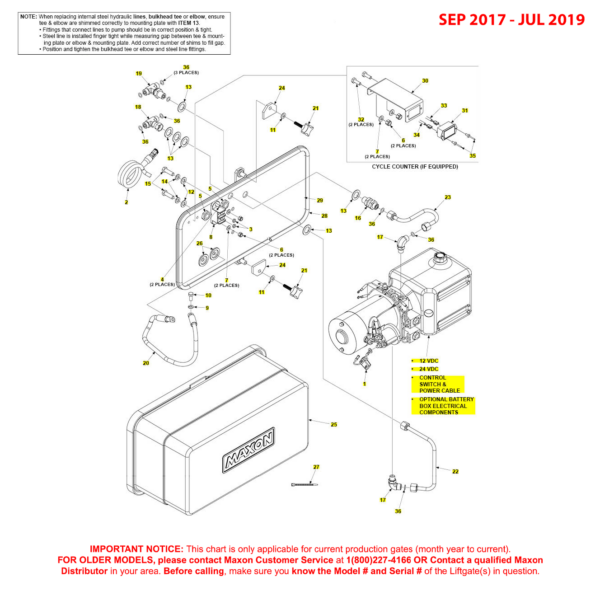

Maxon GPT (Sep 2017 – Jul 2019) Pump Assembly Diagram

SKU: GPT-SEP17-JUL19-PA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 298280-01G - Pump Assembly H/D P/D 12V GPT GALMaxon 298280-01G - Pump Assembly H/D P/D 12V GPT GAL298280-01G-MAXO$2,260.05
0Maxon 298280-03G - Pump Assembly H/D P/D CC 12V GPT GALMaxon 298280-03G - Pump Assembly H/D P/D CC 12V GPT GAL298280-03G-MAXO$2,379.00
1Maxon 297046-01 - Fuse Holder AssemblyMaxon 297046-01 - Fuse Holder Assembly297046-01-MAXO$11.22
2Maxon 282625-13 - Cable Assembly Lock Valve 16/2 X 56 InchMaxon 282625-13 - Cable Assembly Lock Valve 16/2 X 56 Inch282625-13-MAXO$67.02
4Maxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZCMaxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZC900000-4-MAXO$0.23
5Maxon 268034-04 - Cord Grip NYL M20-1.5 .27 IDMaxon 268034-04 - Cord Grip NYL M20-1.5 .27 ID268034-04-MAXO$6.06
6Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
7Maxon 903412-01 - Flat Washer .25 SSMaxon 903412-01 - Flat Washer .25 SS903412-01-MAXO$0.20
8Maxon 296859-01 - Power Down ModuleMaxon 296859-01 - Power Down Module296859-01-MAXO$54.87
9Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
10Maxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZCMaxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZC900009-3-MAXO$0.38
11Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
12Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
13Maxon 902028-12 - Washer Flat - 1.250 OD X .757 IDMaxon 902028-12 - Washer Flat - 1.250 OD X .757 ID902028-12-MAXO$0.77
14Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
15Maxon 900764-07 - Screw Hex Cap .38-16 X 1.25 Inch SSMaxon 900764-07 - Screw Hex Cap .38-16 X 1.25 Inch SS900764-07-MAXO$0.60
16Maxon 906744-01 - Bulkhead Union SAE#6 ORFS M-MMaxon 906744-01 - Bulkhead Union SAE#6 ORFS M-M906744-01-MAXO$12.99
17Maxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-M906707-01-MAXO$8.45
18Maxon 906802-01 - Tee - SW Nut Branch - ORFS #6Maxon 906802-01 - Tee - SW Nut Branch - ORFS #6906802-01-MAXO$18.39
19Maxon 906810-01 - Tee - Bulkhead Branch - ORFS #6Maxon 906810-01 - Tee - Bulkhead Branch - ORFS #6906810-01-MAXO$30.57
20Maxon 269191-03 - Cable Assembly Ground 2 GA X 22 Inch LGMaxon 269191-03 - Cable Assembly Ground 2 GA X 22 Inch LG269191-03-MAXO$29.00
21Maxon 286729-01 - Knob/Stud AssemblyMaxon 286729-01 - Knob/Stud Assembly286729-01-MAXO$19.61
22Maxon 282892-01 - Tube Assembly Down Line GPT PumpMaxon 282892-01 - Tube Assembly Down Line GPT Pump282892-01-MAXO$42.69
23Maxon 282874-01 - Tube Assembly Up Line GPTB PumpMaxon 282874-01 - Tube Assembly Up Line GPTB Pump282874-01-MAXO$29.48
24Maxon 281062-02 - Flat Holder 1.56 LGMaxon 281062-02 - Flat Holder 1.56 LG281062-02-MAXO$6.17
25Maxon 281038-02 - Horizontal Pump CoverMaxon 281038-02 - Horizontal Pump Cover281038-02-MAXO$47.03
26Maxon 266428-04 - Grommet 1.0 Diaph .38 HoleMaxon 266428-04 - Grommet 1.0 Diaph .38 Hole266428-04-MAXO$2.91
27Maxon 208153 - Plastic Tie 4 Inch - 18 LBMaxon 208153 - Plastic Tie 4 Inch - 18 LB208153-MAXO$0.11
28Maxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LGMaxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LG093203-10-MAXO$46.20
29Maxon 288051-01G - Plate Weldment Pump Mount GPTB GMaxon 288051-01G - Plate Weldment Pump Mount GPTB G288051-01G-MAXO$104.49
29Maxon 288051-02G - Plate Weldment Pump Mount C/CNTR GPTB GMaxon 288051-02G - Plate Weldment Pump Mount C/CNTR GPTB G288051-02G-MAXO$123.00
30Maxon 297358-01 - Bracket Digital C/CountMaxon 297358-01 - Bracket Digital C/Count297358-01-MAXO$7.98
31Maxon 297269-01 - Digital Cycle CounterMaxon 297269-01 - Digital Cycle Counter297269-01-MAXO$103.50
32Maxon 900004-2 - Screw Cap 1/4-20 X 3/4 Inch GR8 ZCMaxon 900004-2 - Screw Cap 1/4-20 X 3/4 Inch GR8 ZC900004-2-MAXO$0.24
36Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
