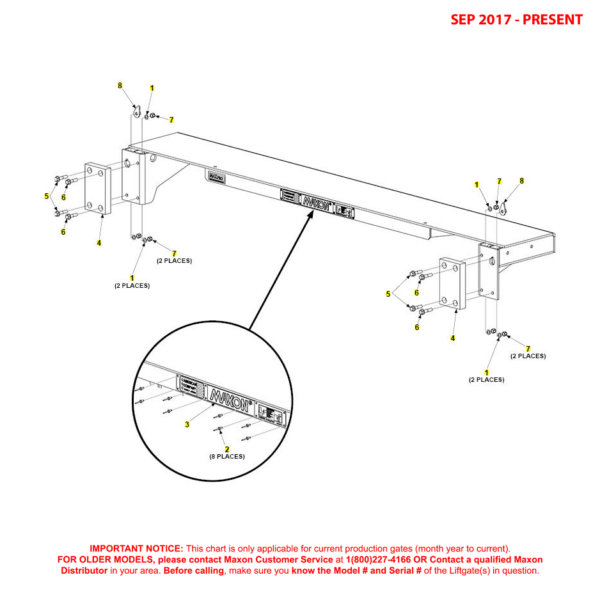

Maxon GPT (Sep 2017 – Present) 102-Inches Wide And 3/8 Inch Thick Extension Plate Assembly Diagram

ID	Title	SKU	Price
0	Maxon 288700-04G - EXT Plate Assembly .38THK GPT 102 Inch GALV	288700-04G-MAXO	$1,599.00
1	Maxon 902000-14 - Flat Washer .500 X .063 THK	902000-14-MAXO	$0.98
2	Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565	904005-2-MAXO	$0.72
4	Maxon 280853-01 - Polyethylene Bumper 1.5 X 5.5 X 9 Inch	280853-01-MAXO	$93.72
5	Maxon 901024-3 - Bolt Hex Frame .5-13 X 2.25 Inch LG	901024-3-MAXO	$5.97
6	Maxon 901024-8 - Bolt Hex Frame - .5-13 X 2.50 Inch LG	901024-8-MAXO	$2.00
7	Maxon 901010 - Nylon Lock Nut 1/2-13 ZC	901010-MAXO	$0.54
8	Maxon 283700-01 - Tear Drop Weldment	283700-01-MAXO	$5.93

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
