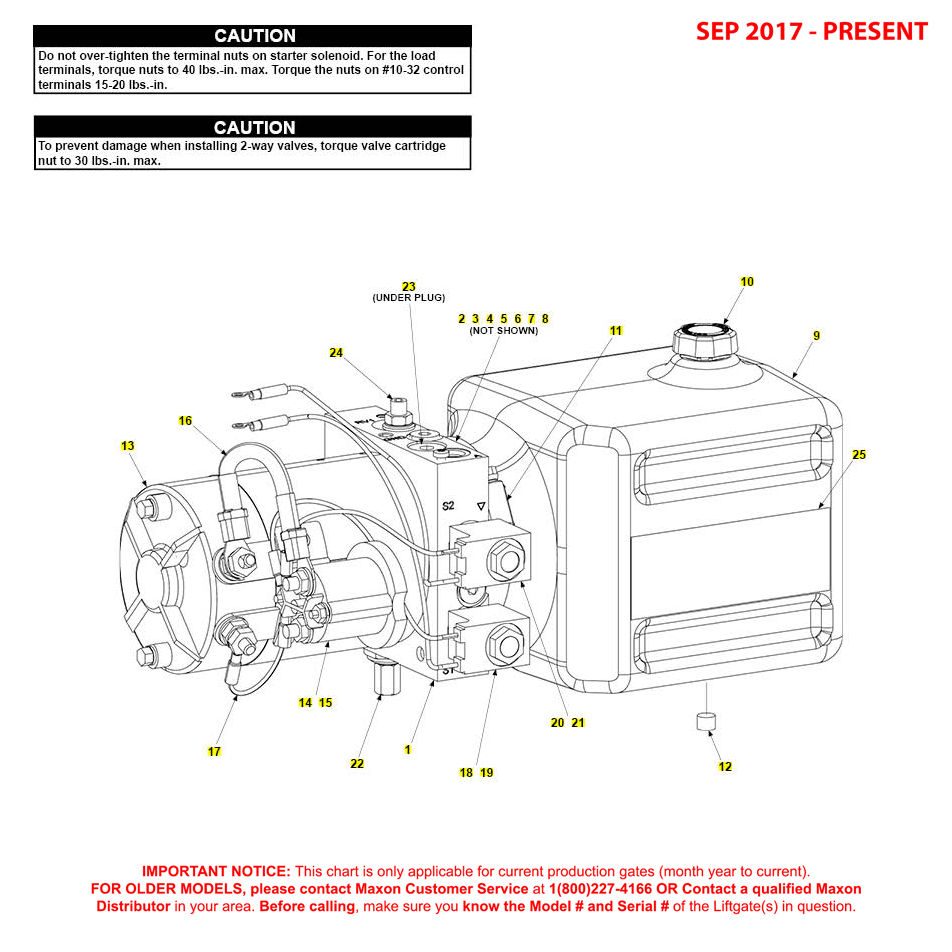

Maxon GPT (Sep 2017 - Present) 24VDC Power Unit Diagram
,

Maxon GPT (Sep 2017 – Present) 24VDC Power Unit Diagram

SKU: GPT-SEP17-PRES-24VDC-PU-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
1Maxon 290151 - Base Assembly M3551 MOD STD MTRMaxon 290151 - Base Assembly M3551 MOD STD MTR290151-MAXO$998.57
2Maxon 290159 - O-Ring Reservoir 3.75 X 4.0 X .13-240Maxon 290159 - O-Ring Reservoir 3.75 X 4.0 X .13-240290159-MAXO$7.98
3Maxon 290160 - Seal Shaft Heavy DutyMaxon 290160 - Seal Shaft Heavy Duty290160-MAXO$17.49
4Maxon 297565 - O-Ring 0.50 X 0.63 X 0.06 -014Maxon 297565 - O-Ring 0.50 X 0.63 X 0.06 -014297565-MAXO$0.93
5Maxon 290150 - Pump Assembly QM MDLR DC BRGS BLD RSVMaxon 290150 - Pump Assembly QM MDLR DC BRGS BLD RSV290150-MAXO$698.15
6Maxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPTMaxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPT290141-MAXO$11.30
7Maxon 269331 - Filter Screen M-Series SUCTMaxon 269331 - Filter Screen M-Series SUCT269331-MAXO$7.82
8Maxon 290143 - Tube Return 90 DEG 1/8NPT 3 3/8Maxon 290143 - Tube Return 90 DEG 1/8NPT 3 3/8290143-MAXO$14.22
9Maxon 290145 - Reservoir Plastic 6.7 X 6.7 X 9.0 H/MTMaxon 290145 - Reservoir Plastic 6.7 X 6.7 X 9.0 H/MT290145-MAXO$203.88
10Maxon 287281 - Plug RESEV Breather-FillerMaxon 287281 - Plug RESEV Breather-Filler287281-MAXO$11.78
11Maxon 287277 - Clam Hose Worm Gear RSV M-SERMaxon 287277 - Clam Hose Worm Gear RSV M-SER287277-MAXO$18.21
12Maxon 287282 - Plug SAE O-Ring 9/16-18 HEX SOMaxon 287282 - Plug SAE O-Ring 9/16-18 HEX SO287282-MAXO$11.30
13Maxon 269351 - Motor DC 24 Volt 2 TermMaxon 269351 - Motor DC 24 Volt 2 Term269351-MAXO$887.57
14Maxon 284080-02 - Switch Solenoid Assembly 24VDCMaxon 284080-02 - Switch Solenoid Assembly 24VDC284080-02-MAXO$55.40
15Maxon 269340 - Screw Pan HD TORX 10-32 X 5/16 InchMaxon 269340 - Screw Pan HD TORX 10-32 X 5/16 Inch269340-MAXO$1.52
16Maxon 287274 - Cable Insulated W/Lugs 4G 6 Inch LMaxon 287274 - Cable Insulated W/Lugs 4G 6 Inch L287274-MAXO$23.42
17Maxon 290227 - Wire Assembly CNTRL 16AWG HS RingMaxon 290227 - Wire Assembly CNTRL 16AWG HS Ring290227-MAXO$22.86
18Maxon 290153 - Cartridge 4-W/2-P 8 1/2 Inch StemMaxon 290153 - Cartridge 4-W/2-P 8 1/2 Inch Stem290153-MAXO$217.26
19Maxon 290226 - Coil Assembly 18VDC W/Terms - RED ENDMaxon 290226 - Coil Assembly 18VDC W/Terms - RED END290226-MAXO$154.62
20Maxon 269417 - Cartridge 2W/2P NC Poppet 4000Maxon 269417 - Cartridge 2W/2P NC Poppet 4000269417-MAXO$192.21
21Maxon 290168 - 18VDC 8 Dual Lead 10 Ring CoilMaxon 290168 - 18VDC 8 Dual Lead 10 Ring Coil290168-MAXO$206.18
22Maxon 290171 - Valve Max VM01 HDM 10 T.30-95Maxon 290171 - Valve Max VM01 HDM 10 T.30-95290171-MAXO$71.18
23Maxon 269346 - Poppet Assembly PRSS CMP FL CNTRLMaxon 269346 - Poppet Assembly PRSS CMP FL CNTRL269346-MAXO$90.11
24Maxon 290158 - Valve Assembly R/V 1001 PSI And UpMaxon 290158 - Valve Assembly R/V 1001 PSI And Up290158-MAXO$55.17

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
