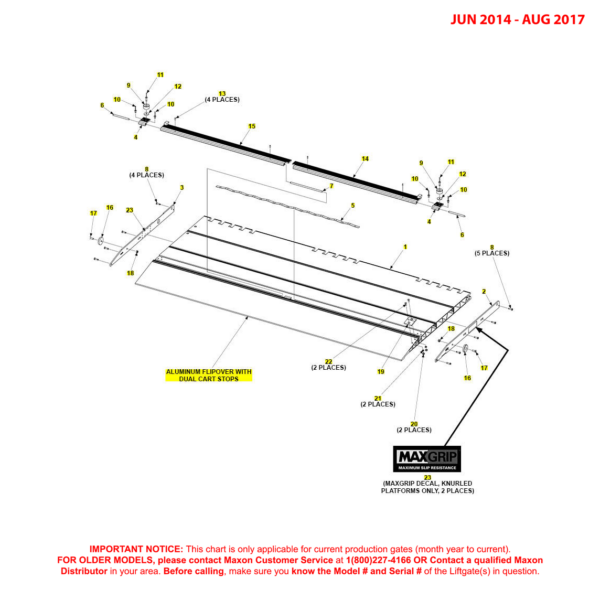

Maxon GPTLR-25 And GPTLR-33 (Jun 2014 - Aug 2017) Aluminum Flipover With Dual Cart Stops Diagram

Maxon GPTLR-25 And GPTLR-33 (Jun 2014 – Aug 2017) Aluminum Flipover With Dual Cart Stops Diagram

SKU: GPTLR25-GPTLR33-JUN14-AUG17-ALFODCS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 284820-01 - F/O Assembly W/CST 79.5 Inch LGMaxon 284820-01 - F/O Assembly W/CST 79.5 Inch LG284820-01-MAXO$2,565.23
0Maxon 284820-02 - F/O Assembly W/CST 85.5 Inch LGMaxon 284820-02 - F/O Assembly W/CST 85.5 Inch LG284820-02-MAXO$2,787.53
0Maxon 284820-102 - F/O Assembly W/CST 85.5 Inch LG MAXGRIPMaxon 284820-102 - F/O Assembly W/CST 85.5 Inch LG MAXGRIP284820-102-MAXO$1,996.80
1Maxon 284817-02 - F/O Weldment C/ST 85 Inch LGMaxon 284817-02 - F/O Weldment C/ST 85 Inch LG284817-02-MAXO$1,428.38
2Maxon 284814-01 - Side Plate GPTLR AL F/O RHMaxon 284814-01 - Side Plate GPTLR AL F/O RH284814-01-MAXO$48.20
3Maxon 284816-01 - Side Plate GPTLR AL F/O LHMaxon 284816-01 - Side Plate GPTLR AL F/O LH284816-01-MAXO$63.84
4Maxon 267088-01 - Link - Cart StopMaxon 267088-01 - Link - Cart Stop267088-01-MAXO$15.92
5Maxon 267581-01 - Spring F/OVER C/ST .63 X 42 Inch LGMaxon 267581-01 - Spring F/OVER C/ST .63 X 42 Inch LG267581-01-MAXO$114.81
6Maxon 267094-03 - Pin Cart Stop 5 Inch LGMaxon 267094-03 - Pin Cart Stop 5 Inch LG267094-03-MAXO$14.67
7Maxon 267094-04 - Pin Cart Stop 9.75 Inch LGMaxon 267094-04 - Pin Cart Stop 9.75 Inch LG267094-04-MAXO$14.67
8Maxon 900705-01 - SCR Self Tap .25-20 X 1.00 PH ZCMaxon 900705-01 - SCR Self Tap .25-20 X 1.00 PH ZC900705-01-MAXO$0.18
9Maxon 905314-05 - Bumper CYL w/ Washer 1.5 X .75 InchMaxon 905314-05 - Bumper CYL w/ Washer 1.5 X .75 Inch905314-05-MAXO$4.59
10Maxon 903705-02 - Rivet BLD DOME AL/ST .25 X .6Maxon 903705-02 - Rivet BLD DOME AL/ST .25 X .6903705-02-MAXO$0.36
11Maxon 903705-06 - Rivet BLD Dome AL/ST .25 X 1.2 InchMaxon 903705-06 - Rivet BLD Dome AL/ST .25 X 1.2 Inch903705-06-MAXO$0.78
12Maxon 903409-07 - Washer FEND .28 X 1.25 Inch OD SSMaxon 903409-07 - Washer FEND .28 X 1.25 Inch OD SS903409-07-MAXO$0.41
13Maxon 904719-03 - Pin Roll .188 X .56 Inch LG SSMaxon 904719-03 - Pin Roll .188 X .56 Inch LG SS904719-03-MAXO$0.27
14Maxon 267092-04 - Cart Stop Weldment 79 Inch P/F Dual RHMaxon 267092-04 - Cart Stop Weldment 79 Inch P/F Dual RH267092-04-MAXO$125.87
14Maxon 267092-06 - Cart Stop Weldment 85 Inch P/F Dual RHMaxon 267092-06 - Cart Stop Weldment 85 Inch P/F Dual RH267092-06-MAXO$132.29
15Maxon 267092-05 - Cart Stop Weldment 79 Inch P/F Dual LHMaxon 267092-05 - Cart Stop Weldment 79 Inch P/F Dual LH267092-05-MAXO$125.87
15Maxon 267092-07 - Cart Stop Weldment 85 Inch P/F Dual LHMaxon 267092-07 - Cart Stop Weldment 85 Inch P/F Dual LH267092-07-MAXO$132.29
16Maxon 284657-01 - Gusset Extension Plate LHMaxon 284657-01 - Gusset Extension Plate LH284657-01-MAXO$14.67
17Maxon 900021-3 - Screw SOC .312-18 X 1 FLMaxon 900021-3 - Screw SOC .312-18 X 1 FL900021-3-MAXO$0.92
18Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
19Maxon 269477-01 - Plate Latch SupportMaxon 269477-01 - Plate Latch Support269477-01-MAXO$17.70
20Maxon 901016-2 - Nut Hex THN HD LKG .250-20 UNCMaxon 901016-2 - Nut Hex THN HD LKG .250-20 UNC901016-2-MAXO$0.11
21Maxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZCMaxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZC902000-1-MAXO$0.20
22Maxon 900044-5 - Screw SOC FL 1/4-20 X .875 Inch AlloyMaxon 900044-5 - Screw SOC FL 1/4-20 X .875 Inch Alloy900044-5-MAXO$0.69

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
