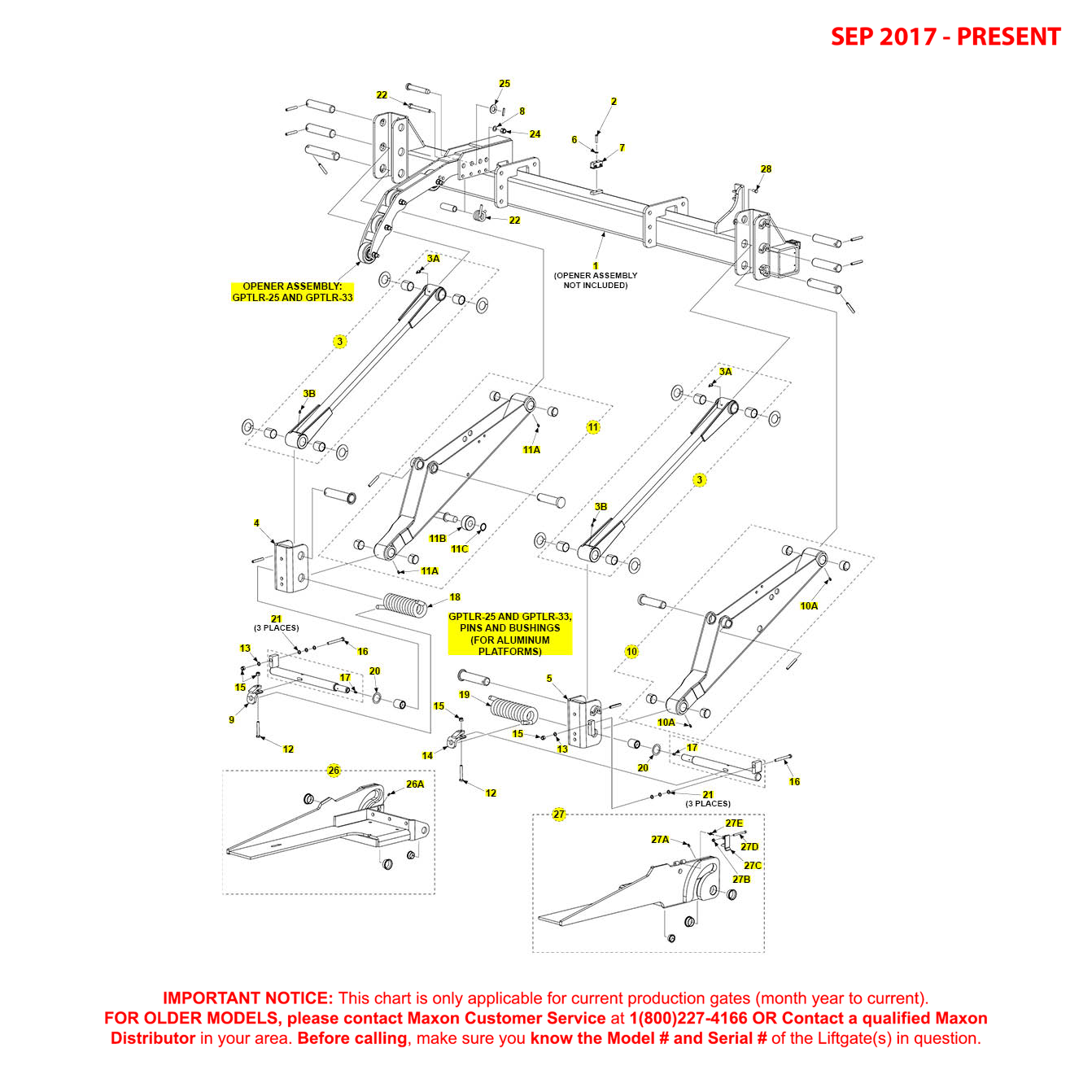

Maxon GPTLR-25 And GPTLR-33 (Sep 2017 - Present) Main Assembly For Aluminum Platforms Diagram

Maxon GPTLR-25 And GPTLR-33 (Sep 2017 – Present) Main Assembly For Aluminum Platforms Diagram

SKU: GPTLR25-GPTLR33-SEP17-PRES-MAALPF-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 297315-02G - M/F Weldment 102 Inch EXT GPTLR25/33 GMaxon 297315-02G - M/F Weldment 102 Inch EXT GPTLR25/33 G297315-02G-MAXO$1,674.08
2Maxon 900719-08 - Button Screw .25-20 X 1.25 Inch SSMaxon 900719-08 - Button Screw .25-20 X 1.25 Inch SS900719-08-MAXO$0.51
3Maxon 282435-01G - Parallel Arm Assembly GALVMaxon 282435-01G - Parallel Arm Assembly GALV282435-01G-MAXO$555.21
3Maxon 906796-01 - THD Forming 45Deg Lube FittingMaxon 906796-01 - THD Forming 45Deg Lube Fitting906796-01-MAXO$1.67
4Maxon 280971-02G - Shackle Weldment LH GalvanizedMaxon 280971-02G - Shackle Weldment LH Galvanized280971-02G-MAXO$289.80
5Maxon 280971-01G - Shackle Weldment RH GalvanizedMaxon 280971-01G - Shackle Weldment RH Galvanized280971-01G-MAXO$289.80
6Maxon 903412-01 - Flat Washer .25 SSMaxon 903412-01 - Flat Washer .25 SS903412-01-MAXO$0.20
7Maxon 905071-03 - Double-Line Plastic Clamp 0.5 Inch DIAMaxon 905071-03 - Double-Line Plastic Clamp 0.5 Inch DIA905071-03-MAXO$4.86
8Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
9Maxon 287767-01 - Bracket Reinforcement Weldment RHMaxon 287767-01 - Bracket Reinforcement Weldment RH287767-01-MAXO$38.90
10Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
10Maxon 282440-01G - Lift Arm Assembly RH GALVMaxon 282440-01G - Lift Arm Assembly RH GALV282440-01G-MAXO$832.17
11Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
11Maxon 282440-02G - Lift Arm Assembly LH GALVMaxon 282440-02G - Lift Arm Assembly LH GALV282440-02G-MAXO$820.11
11Maxon 282780-05 - Roller P/F SPRT 2.38 OD X 1.05 ID GPTLR-25/3Maxon 282780-05 - Roller P/F SPRT 2.38 OD X 1.05 ID GPTLR-25/3282780-05-MAXO$9.20
11Maxon 903420-02 - Ring Retain SLF/LCK 1.0 SSMaxon 903420-02 - Ring Retain SLF/LCK 1.0 SS903420-02-MAXO$3.15
12Maxon 900014-10 - Screw Hex Cap .38-16 X 2.5 Inch G8 ZCMaxon 900014-10 - Screw Hex Cap .38-16 X 2.5 Inch G8 ZC900014-10-MAXO$0.89
13Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
14Maxon 287767-02 - Bracket Reinforcement Weldment LHMaxon 287767-02 - Bracket Reinforcement Weldment LH287767-02-MAXO$38.90
15Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
16Maxon 900014-13 - Screw Hex Cap .38-16 X 3.5 Inch G8 ZCMaxon 900014-13 - Screw Hex Cap .38-16 X 3.5 Inch G8 ZC900014-13-MAXO$1.55
17Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
18Maxon 280950-01 - Torsion SpringMaxon 280950-01 - Torsion Spring280950-01-MAXO$117.23
19Maxon 281319-02 - Torsion SpringMaxon 281319-02 - Torsion Spring281319-02-MAXO$201.74
20Maxon 903407-02 - Shim SS 1.38 ID X 1.88 OD X .030 THK InchMaxon 903407-02 - Shim SS 1.38 ID X 1.88 OD X .030 THK Inch903407-02-MAXO$2.09
21Maxon 903447-02 - Flat Washer .375 X .063 Inch THK SSMaxon 903447-02 - Flat Washer .375 X .063 Inch THK SS903447-02-MAXO$0.17
22Maxon 282272-01 - Spring Torsion OpenerMaxon 282272-01 - Spring Torsion Opener282272-01-MAXO$49.70
23Maxon 900035-12 - Screw Cap HXHD .5-13UNC-2A 4.50Maxon 900035-12 - Screw Cap HXHD .5-13UNC-2A 4.50900035-12-MAXO$3.23
24Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
25Maxon 902000-20 - Flat Washer - .750 .090 Inch THKMaxon 902000-20 - Flat Washer - .750 .090 Inch THK902000-20-MAXO$1.31
26Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
26Maxon 287684-01G - P/F SPRT Assembly LH GPTLR25 GALVMaxon 287684-01G - P/F SPRT Assembly LH GPTLR25 GALV287684-01G-MAXO$915.41
27Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
27Maxon 284568-01 - Spring - TRSN 180 DEG X .048W X .38ODMaxon 284568-01 - Spring - TRSN 180 DEG X .048W X .38OD284568-01-MAXO$47.58
27Maxon 284645-01 - Latch Weldment GPTLR P/FMaxon 284645-01 - Latch Weldment GPTLR P/F284645-01-MAXO$31.85
27Maxon 287684-02G - P/F SPRT Assembly RH GPTLR25 GALVMaxon 287684-02G - P/F SPRT Assembly RH GPTLR25 GALV287684-02G-MAXO$1,070.55
27Maxon 900732-14 - Screw SOC .2520 X 2.75 SSMaxon 900732-14 - Screw SOC .2520 X 2.75 SS900732-14-MAXO$1.10
27Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
28Maxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZCMaxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZC900009-3-MAXO$0.38

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
