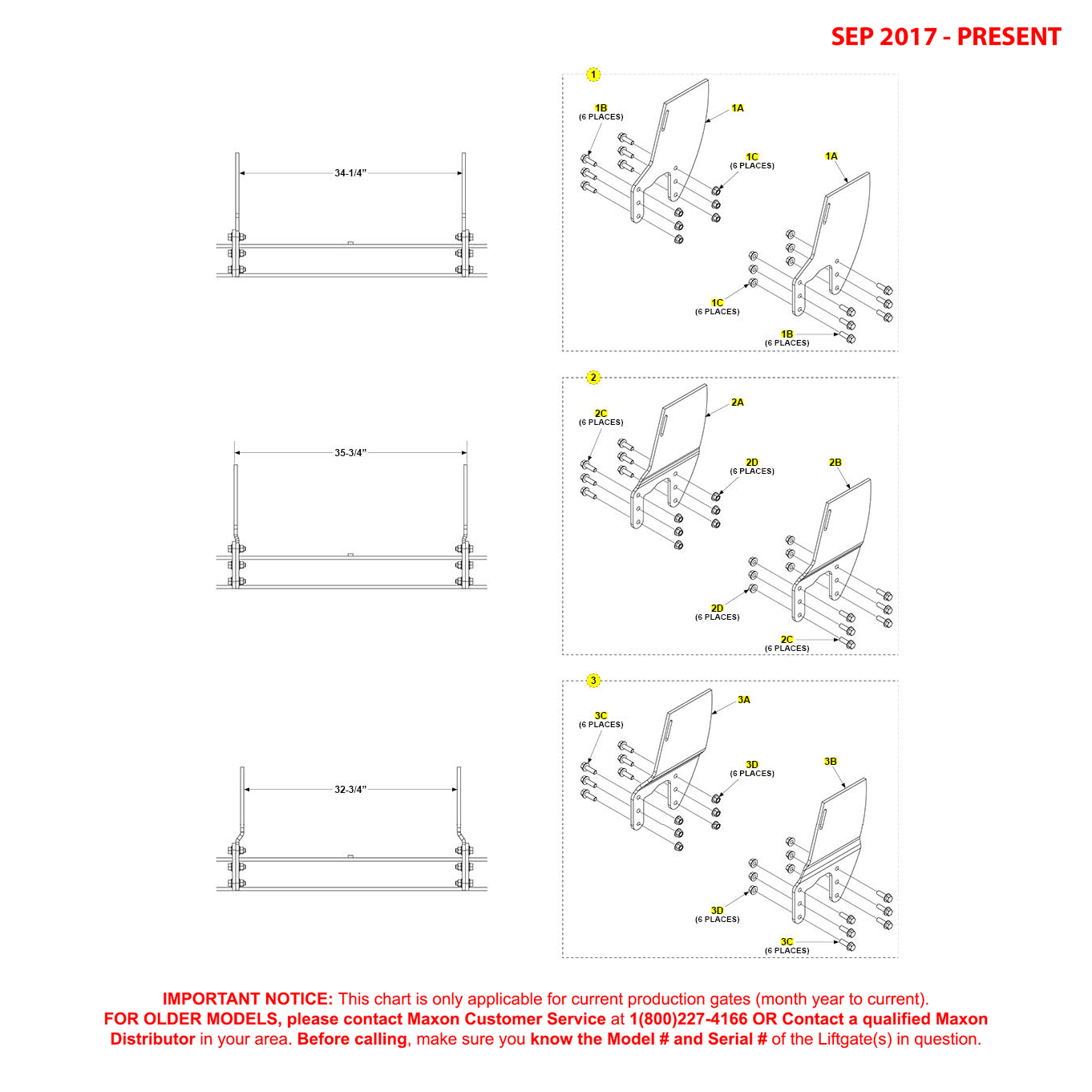

Maxon GPTLR-25 And GPTLR-33 (Sep 2017 - Present) Mounting Plate Diagram

GPTLR (Sep 2017 - Present) Diagrams

Maxon GPTLR-25 And GPTLR-33 (Sep 2017 – Present) Mounting Plate Diagram

SKU: GPTLR25-GPTLR33-SEP17-PRES-MP-DG Category: GPTLR (Sep 2017 - Present) Diagrams

Options
Description

ID	Image	Title	SKU	Price	Quantity	Add to Cart
2		Maxon 901023-04 - Flange Lock Nut 63-11 ZC	901023-04-MAXO	$1.82
2		Maxon 901615-04 - Bolt Hex Flange .63-11 X 2 Inch LG	901615-04-MAXO	$3.24
3		Maxon 901023-04 - Flange Lock Nut 63-11 ZC	901023-04-MAXO	$1.82
3		Maxon 901615-04 - Bolt Hex Flange .63-11 X 2 Inch LG	901615-04-MAXO	$3.24

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
