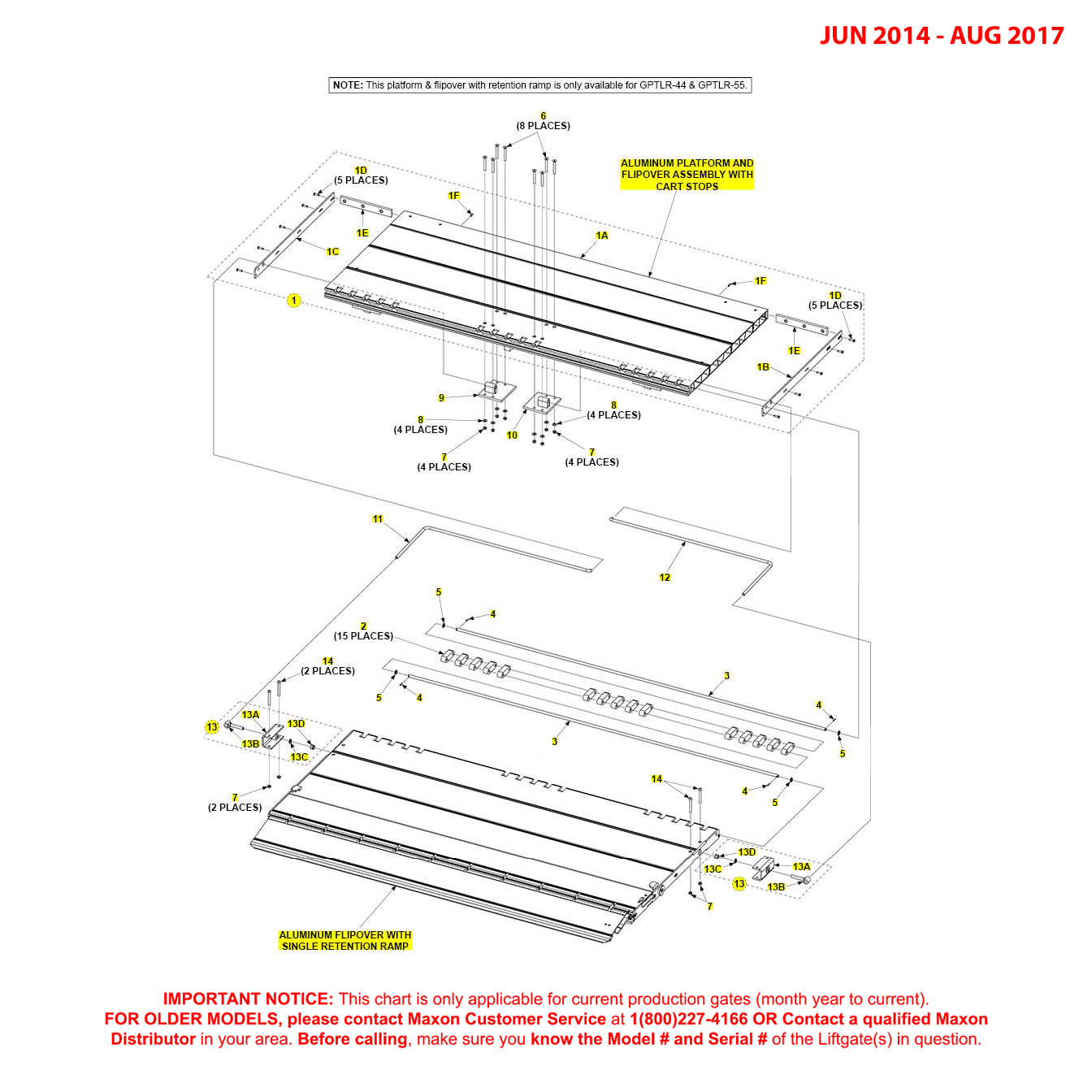

Maxon GPTLR-44 And GPTLR-55 (Jun 2014 - Aug 2017) Aluminum Platform And Flipover Assembly With Single Retention Ramp Diagram

Maxon GPTLR-44 And GPTLR-55 (Jun 2014 – Aug 2017) Aluminum Platform And Flipover Assembly With Single Retention Ramp Diagram

SKU: GPTLR44-GPTLR55-JUN14-AUG17-ALPFFOA-SRR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 284825-142 - P/F and F/O Assembly W/SRR 85.5 Inch LG MAXGRIPMaxon 284825-142 - P/F and F/O Assembly W/SRR 85.5 Inch LG MAXGRIP284825-142-MAXO$4,359.23
0Maxon 284825-41 - P/F and F/O Assembly W/SRR 79.5 Inch LGMaxon 284825-41 - P/F and F/O Assembly W/SRR 79.5 Inch LG284825-41-MAXO$6,256.58
0Maxon 284825-42 - P/F and F/O Assembly W/SRR 85.5 Inch LGMaxon 284825-42 - P/F and F/O Assembly W/SRR 85.5 Inch LG284825-42-MAXO$6,690.45
1Maxon 281143-01 - Side Plate P/F LHMaxon 281143-01 - Side Plate P/F LH281143-01-MAXO$40.73
1Maxon 281143-02 - Side Plate P/F RHMaxon 281143-02 - Side Plate P/F RH281143-02-MAXO$35.93
1Maxon 283340-04 - P/F Assembly RR 85.5 Inch LGMaxon 283340-04 - P/F Assembly RR 85.5 Inch LG283340-04-MAXO$2,252.25
1Maxon 900705-01 - SCR Self Tap .25-20 X 1.00 PH ZCMaxon 900705-01 - SCR Self Tap .25-20 X 1.00 PH ZC900705-01-MAXO$0.18
1Maxon 905033-3 - Roll Pin .250 O.D. X 0.75 Inch LGMaxon 905033-3 - Roll Pin .250 O.D. X 0.75 Inch LG905033-3-MAXO$0.30
2Maxon 283354-10 - Hinge SpacerMaxon 283354-10 - Hinge Spacer283354-10-MAXO$8.70
3Maxon 263456-12 - Hinge Rod .50 Inch DIA X 80.38 Inch LGMaxon 263456-12 - Hinge Rod .50 Inch DIA X 80.38 Inch LG263456-12-MAXO$145.13
3Maxon 263456-13 - Rod Hinge .50 Inch DIA X 86.38 Inch LGMaxon 263456-13 - Rod Hinge .50 Inch DIA X 86.38 Inch LG263456-13-MAXO$163.47
4Maxon 905015-1 - Pin Roll .188 X .75 ZincMaxon 905015-1 - Pin Roll .188 X .75 Zinc905015-1-MAXO$0.20
6Maxon 900014-11 - Screw Hex Cap 0.38-16 X 3 Inch G8 ZCMaxon 900014-11 - Screw Hex Cap 0.38-16 X 3 Inch G8 ZC900014-11-MAXO$1.85
7Maxon 901016-4 - Nut Hex THN HD LKG .375-16UNCMaxon 901016-4 - Nut Hex THN HD LKG .375-16UNC901016-4-MAXO$0.21
8Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
9Maxon 281410-01 - Holder Weldment LHMaxon 281410-01 - Holder Weldment LH281410-01-MAXO$49.59
10Maxon 281410-02 - Holder Weldment RHMaxon 281410-02 - Holder Weldment RH281410-02-MAXO$57.11
11Maxon 281414-01 - Torsion Bar LHMaxon 281414-01 - Torsion Bar LH281414-01-MAXO$92.94
12Maxon 281414-02 - Torsion Bar RHMaxon 281414-02 - Torsion Bar RH281414-02-MAXO$92.94
13Maxon 267206-01 - Anchor Bolt WeldmentMaxon 267206-01 - Anchor Bolt Weldment267206-01-MAXO$31.31
13Maxon 281134-01 - Bracket Weldment Torsion BarMaxon 281134-01 - Bracket Weldment Torsion Bar281134-01-MAXO$52.40
13Maxon 281135-01 - Bracket Assembly Torsion BarMaxon 281135-01 - Bracket Assembly Torsion Bar281135-01-MAXO$61.47
13Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
13Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
14Maxon 900064-07 - Screw BTN SCT Cap .375-16 X 3.00 InchMaxon 900064-07 - Screw BTN SCT Cap .375-16 X 3.00 Inch900064-07-MAXO$2.12

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
