Maxon GPTWR (Apr 2015 - Aug 2016) Opener Assembly Diagram

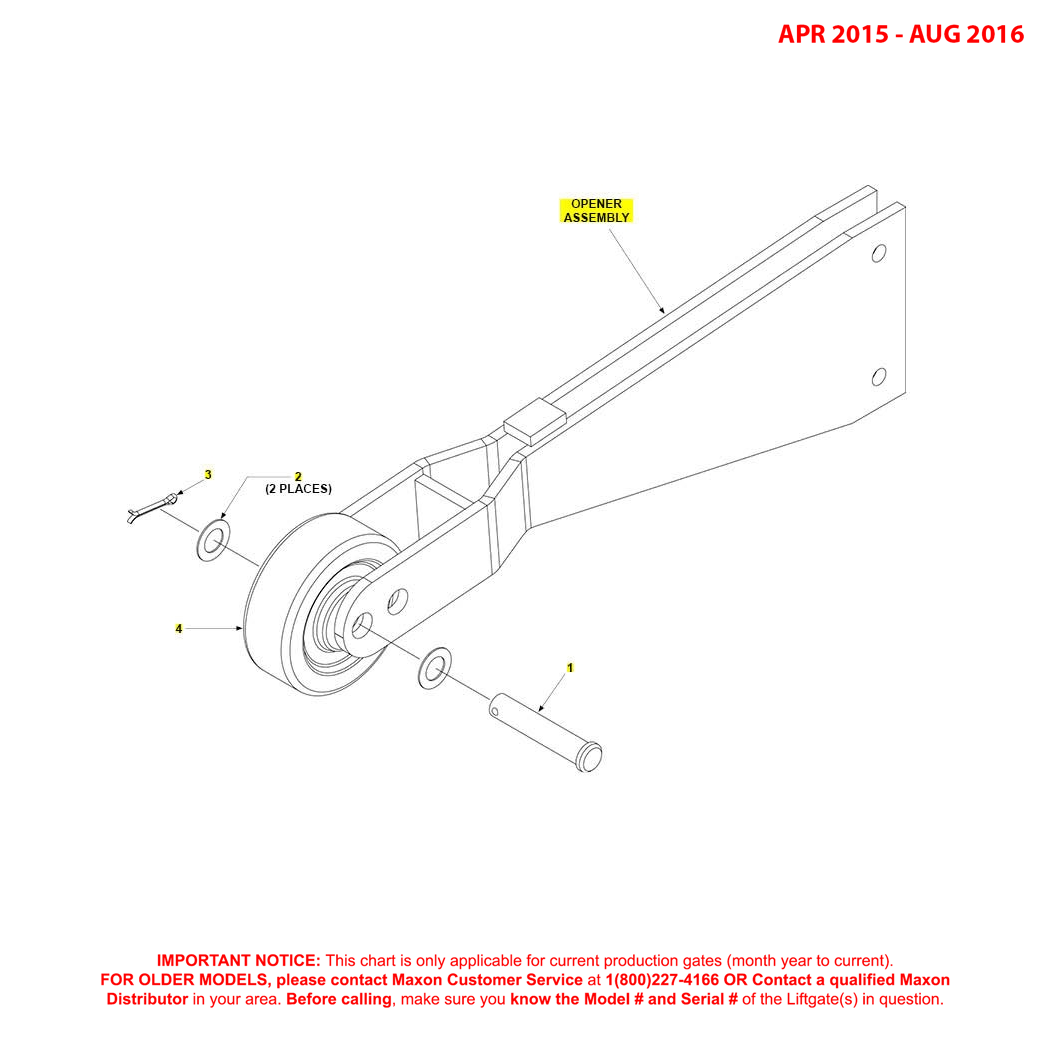

Maxon GPTWR (Apr 2015 – Aug 2016) Opener Assembly Diagram

SKU: GPTWR-APR15-AUG16-OA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 287030-01G - Galvanized GPTB Opener AssemblyMaxon 287030-01G - Galvanized GPTB Opener Assembly287030-01G-MAXO$144.26
0Maxon 287030-01 - GPTB Opener AssemblyMaxon 287030-01 - GPTB Opener Assembly287030-01-MAXO$152.37
1Maxon 905202-03 - Clevis Pin - .500 DIA X 2.50 InchMaxon 905202-03 - Clevis Pin - .500 DIA X 2.50 Inch905202-03-MAXO$3.63
2Maxon 902000-13 - Flat Washer .500 .032 Inch THKMaxon 902000-13 - Flat Washer .500 .032 Inch THK902000-13-MAXO$0.18
4Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5280082-01-MAXO$23.28

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
