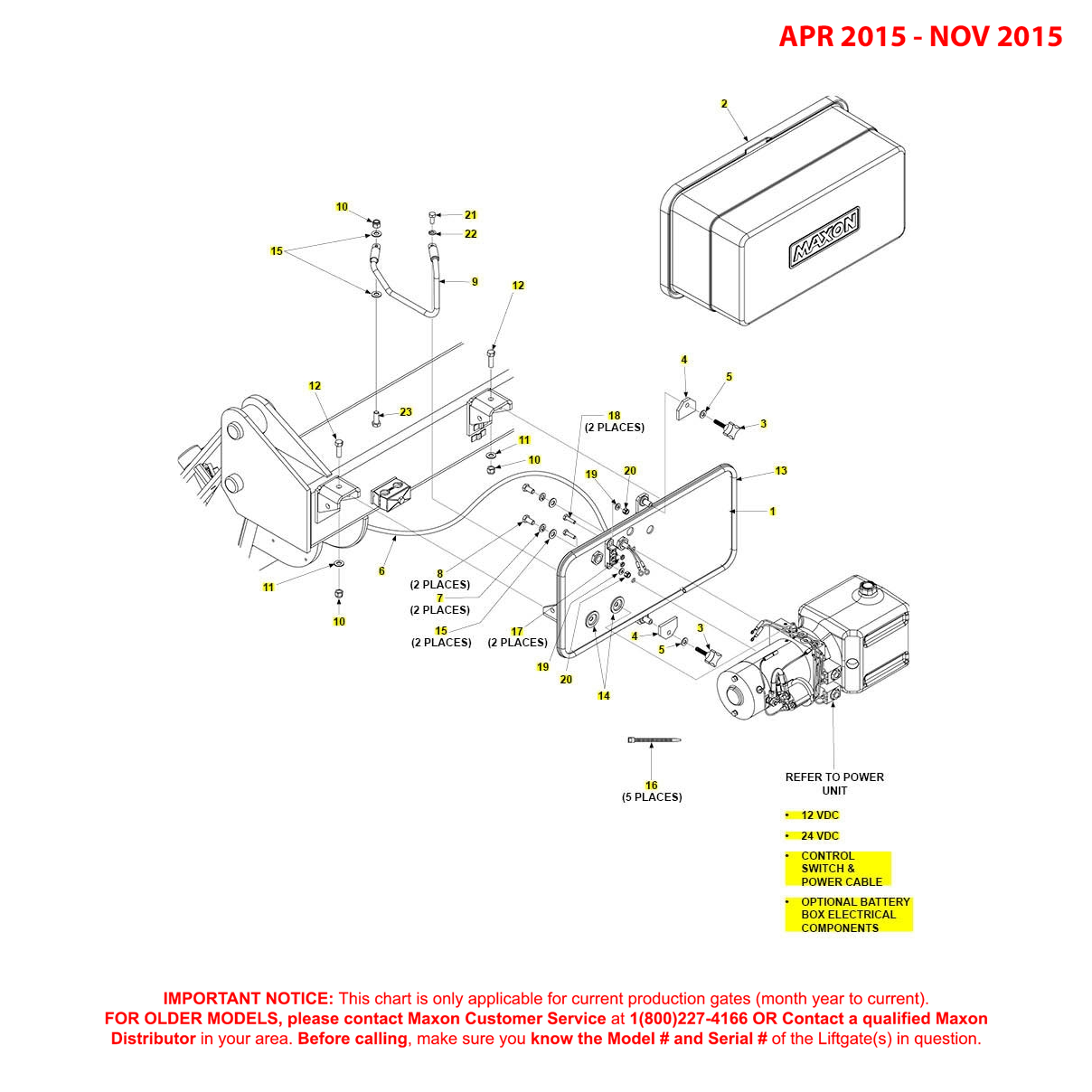

Maxon GPTWR (Apr 2015 - Nov 2015) Pump Cover And Mounting Plate Assembly Diagram

Maxon GPTWR (Apr 2015 – Nov 2015) Pump Cover And Mounting Plate Assembly Diagram

SKU: GPTWR-APR15-NOV15-PCMPA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 295787-01g - PL Weldment GPTB Pump Mount GMaxon 295787-01g - PL Weldment GPTB Pump Mount G295787-01G-MAXO$205.73
2Maxon 281038-02 - Horizontal Pump CoverMaxon 281038-02 - Horizontal Pump Cover281038-02-MAXO$47.03
3Maxon 286729-01 - Knob/Stud AssemblyMaxon 286729-01 - Knob/Stud Assembly286729-01-MAXO$19.61
4Maxon 281062-02 - Flat Holder 1.56 LGMaxon 281062-02 - Flat Holder 1.56 LG281062-02-MAXO$6.17
5Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
6Maxon 282625-13 - Cable Assembly Lock Valve 16/2 X 56 InchMaxon 282625-13 - Cable Assembly Lock Valve 16/2 X 56 Inch282625-13-MAXO$67.02
7Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
8Maxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SSMaxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SS900764-06-MAXO$1.64
9Maxon 251871-05 - Cable Assembly X 16 Inch LGMaxon 251871-05 - Cable Assembly X 16 Inch LG251871-05-MAXO$26.88
10Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
11Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
12Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
13Maxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LGMaxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LG093203-10-MAXO$46.20
14Maxon 266428-04 - Grommet 1.0 Diaph .38 HoleMaxon 266428-04 - Grommet 1.0 Diaph .38 Hole266428-04-MAXO$2.91
15Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
16Maxon 208153 - Plastic Tie 4 Inch - 18 LBMaxon 208153 - Plastic Tie 4 Inch - 18 LB208153-MAXO$0.11
17Maxon 903107-06 - Hex Nut 10-24 UNC SSMaxon 903107-06 - Hex Nut 10-24 UNC SS903107-06-MAXO$0.11
18Maxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZCMaxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZC900000-4-MAXO$0.23
19Maxon 903412-01 - Flat Washer .25 SSMaxon 903412-01 - Flat Washer .25 SS903412-01-MAXO$0.20
20Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
21Maxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZCMaxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZC900009-3-MAXO$0.38
22Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
23Maxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZCMaxon 900014-4 - Hex Cap Screw - .38-16 X 1 G8 ZC900014-4-MAXO$0.71

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
