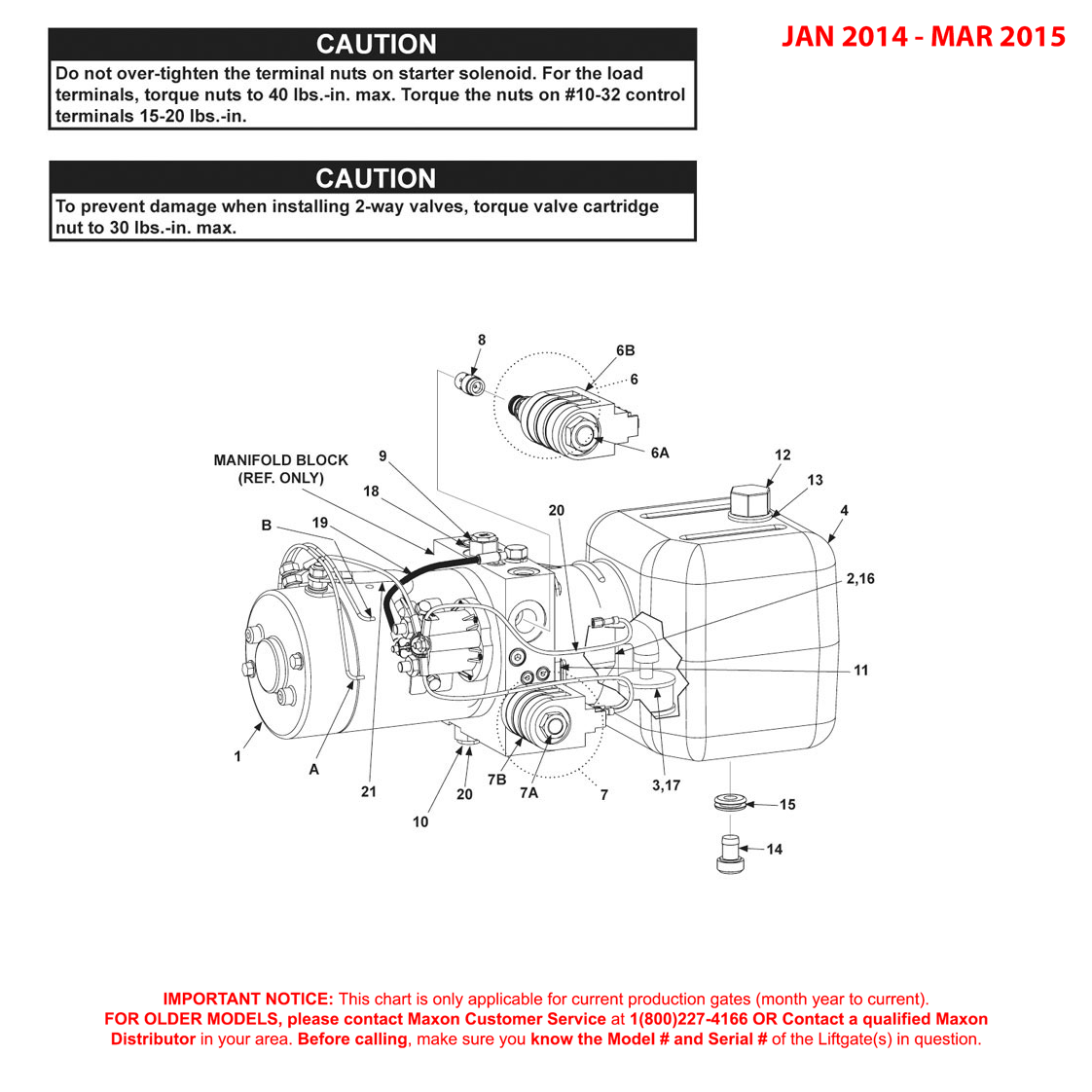

Maxon GPTWR (Jan 2014 - Mar 2015) 24VDC Power Unit Diagram

Maxon GPTWR (Jan 2014 – Mar 2015) 24VDC Power Unit Diagram

SKU: GPTWR-JAN14-MAR15-24VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 267991-24 - 24 VDC Power Unit 204Maxon 267991-24 - 24 VDC Power Unit 204267991-24-MAXO$1,318.20
1Maxon 285107-01 - 24 VDC Motor W/THERM SWMaxon 285107-01 - 24 VDC Motor W/THERM SW285107-01-MAXO$448.92
3Maxon 290034 - Filter Pump InletMaxon 290034 - Filter Pump Inlet290034-MAXO$9.54
4Maxon 268020-01 - Reservoir SQ CUT HORIZ 1GALMaxon 268020-01 - Reservoir SQ CUT HORIZ 1GAL268020-01-MAXO$82.17
5Maxon 284080-02 - Switch Solenoid Assembly 24VDCMaxon 284080-02 - Switch Solenoid Assembly 24VDC284080-02-MAXO$55.40
6Maxon 268539-01 - Coil 24 VDC Double SpadeMaxon 268539-01 - Coil 24 VDC Double Spade268539-01-MAXO$34.52
6Maxon 906822-01 - 2P2W ValveMaxon 906822-01 - 2P2W Valve906822-01-MAXO$98.40
7Maxon 268538-01 - Coil 24 VDC Double Spade 2P4W ValveMaxon 268538-01 - Coil 24 VDC Double Spade 2P4W Valve268538-01-MAXO$33.30
7Maxon 290047 - Valve Cartridge 4 WayMaxon 290047 - Valve Cartridge 4 Way290047-MAXO$158.60
8Maxon 268017-01 - Valve Flow Control 4GPMMaxon 268017-01 - Valve Flow Control 4GPM268017-01-MAXO$54.87
9Maxon 906738-02 - Cartridge Relief Valve HPMaxon 906738-02 - Cartridge Relief Valve HP906738-02-MAXO$48.44
10Maxon 268174-01 - Relief Valve Adjust 1100PSIMaxon 268174-01 - Relief Valve Adjust 1100PSI268174-01-MAXO$46.68
11Maxon 290061 - Seal Square Cut PL ReservoirMaxon 290061 - Seal Square Cut PL Reservoir290061-MAXO$5.70
12Maxon 280806-01 - Breather FillerMaxon 280806-01 - Breather Filler280806-01-MAXO$6.32
13Maxon 908016-01 - Rubber Grommet .60 IDMaxon 908016-01 - Rubber Grommet .60 ID908016-01-MAXO$2.69
14Maxon 908017-01 - Drain Port PlugMaxon 908017-01 - Drain Port Plug908017-01-MAXO$3.36
15Maxon 908018-01 - Rubber Grommet .31 IDMaxon 908018-01 - Rubber Grommet .31 ID908018-01-MAXO$1.94
16Maxon 260261 - Oil Seal - PumpMaxon 260261 - Oil Seal - Pump260261-MAXO$6.32
17Maxon 290020 - O-Ring Kepner Check ValveMaxon 290020 - O-Ring Kepner Check Valve290020-MAXO$7.14
18Maxon 261067 - Plug SAE #6 O RingMaxon 261067 - Plug SAE #6 O Ring261067-MAXO$6.81
19Maxon 268027-01 - Wire Assembly 18GA #10RING-.31RINGMaxon 268027-01 - Wire Assembly 18GA #10RING-.31RING268027-01-MAXO$4.95
20Maxon 268016-01 - Wire Assembly #10 Ring/Q.DISCMaxon 268016-01 - Wire Assembly #10 Ring/Q.DISC268016-01-MAXO$9.05
21Maxon 280404 - Cable AssemblyMaxon 280404 - Cable Assembly280404-MAXO$9.51

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
