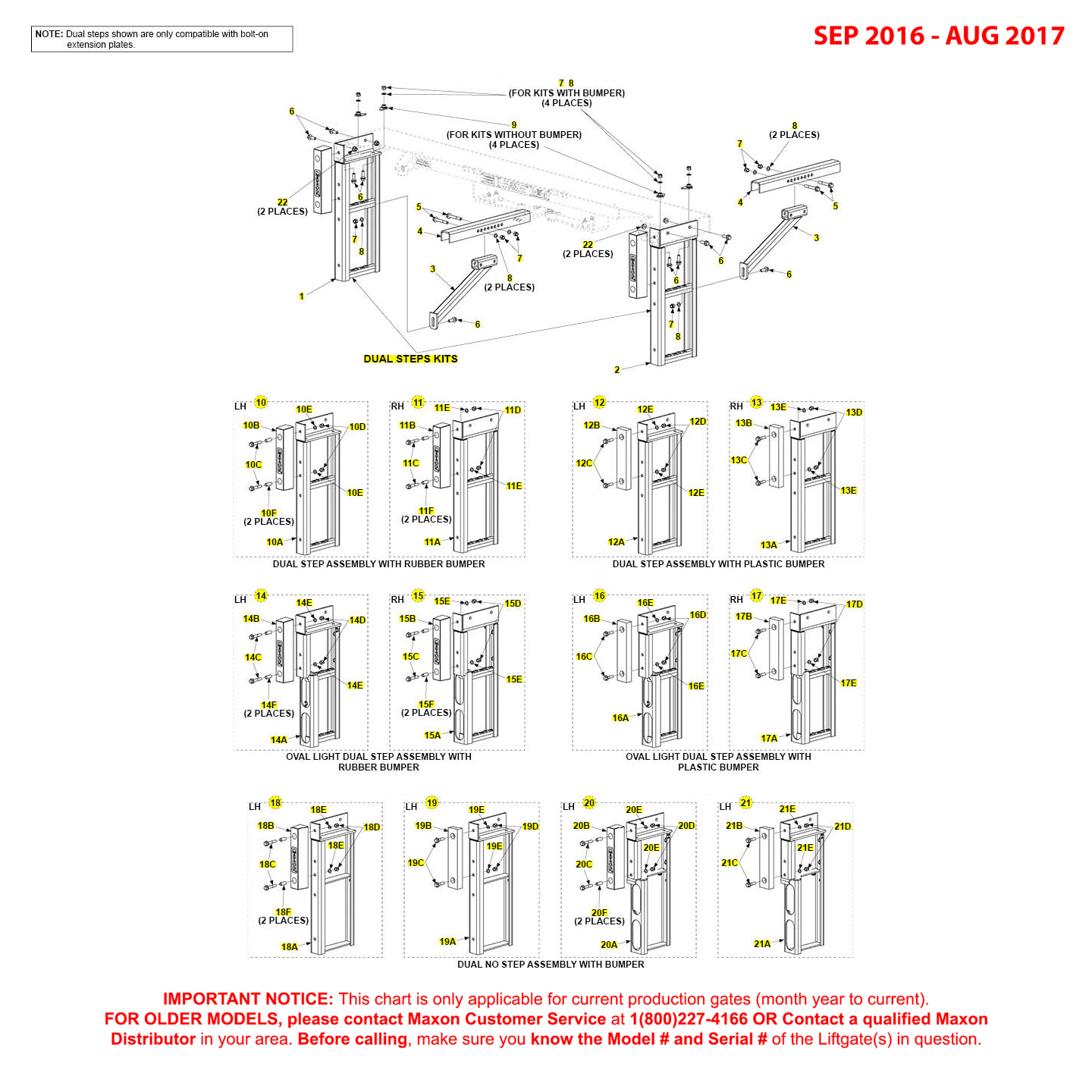

Maxon GPTWR (Sep 2016 - Aug 2017) Dual Step Kits Diagram

Maxon GPTWR (Sep 2016 – Aug 2017) Dual Step Kits Diagram

SKU: GPTWR-SEP16-AUG17-DSK-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 288705-01G - Kit Dual Steps 14 Inch Rubber Bumpers GMaxon 288705-01G - Kit Dual Steps 14 Inch Rubber Bumpers G288705-01G-MAXO$1,187.55
0Maxon 288705-01 - Kit Dual Steps 14 Inch Rubber BumpersMaxon 288705-01 - Kit Dual Steps 14 Inch Rubber Bumpers288705-01-MAXO$1,124.18
0Maxon 288705-02G - Kit Dual Steps 13.5 Inch PE Bumpers GMaxon 288705-02G - Kit Dual Steps 13.5 Inch PE Bumpers G288705-02G-MAXO$1,199.25
0Maxon 288705-02 - Kit Dual Steps 13.5 Inch PE BMPRSMaxon 288705-02 - Kit Dual Steps 13.5 Inch PE BMPRS288705-02-MAXO$1,134.90
0Maxon 288705-05G - Kit Dual Steps No Bumpers GMaxon 288705-05G - Kit Dual Steps No Bumpers G288705-05G-MAXO$1,075.43
0Maxon 288705-05 - Kit Dual Steps No BumpersMaxon 288705-05 - Kit Dual Steps No Bumpers288705-05-MAXO$1,011.18
0Maxon 288705-31G - Kit Dual Steps w/Light 14 Inch Rubber Bumpers GMaxon 288705-31G - Kit Dual Steps w/Light 14 Inch Rubber Bumpers G288705-31G-MAXO$1,356.23
0Maxon 288705-31 - Kit Dual Steps W/LGHT 14 Inch Rubber BumpersMaxon 288705-31 - Kit Dual Steps W/LGHT 14 Inch Rubber Bumpers288705-31-MAXO$1,224.60
0Maxon 288705-32G - Kit Dual Steps w/Light 13.5 Inch PE Bumpers GMaxon 288705-32G - Kit Dual Steps w/Light 13.5 Inch PE Bumpers G288705-32G-MAXO$1,366.95
0Maxon 288705-32 - Kit Dual Steps W/LGHT 13.5 Inch PE BumpersMaxon 288705-32 - Kit Dual Steps W/LGHT 13.5 Inch PE Bumpers288705-32-MAXO$1,235.33
0Maxon 288705-33G - Kit Dual Steps w/Light SS No/STPS 14 Inch Rubber Bumpers GMaxon 288705-33G - Kit Dual Steps w/Light SS No/STPS 14 Inch Rubber Bumpers G288705-33G-MAXO$1,428.38
0Maxon 288705-35G - Kit Dual Steps w/Light No Bumpers GMaxon 288705-35G - Kit Dual Steps w/Light No Bumpers G288705-35G-MAXO$1,243.13
3Maxon 288688-01G - Steps Support Weldment - GALMaxon 288688-01G - Steps Support Weldment - GAL288688-01G-MAXO$119.06
3Maxon 288688-01 - Support Weldment - StepsMaxon 288688-01 - Support Weldment - Steps288688-01-MAXO$117.75
4Maxon 288419-01 - Step Mount ChannelMaxon 288419-01 - Step Mount Channel288419-01-MAXO$80.06
5Maxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LGMaxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LG901024-10-MAXO$2.73
6Maxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LGMaxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LG901024-5-MAXO$1.55
9Maxon 283700-01 - Tear Drop WeldmentMaxon 283700-01 - Tear Drop Weldment283700-01-MAXO$5.93
10Maxon 288675-01G - Dual Step Weldment LH GMaxon 288675-01G - Dual Step Weldment LH G288675-01G-MAXO$327.32
10Maxon 288675-01 - Dual Step Weldment LHMaxon 288675-01 - Dual Step Weldment LH288675-01-MAXO$303.47
10Maxon 288690-01G - Dual Step Assembly - LH 14 Inch - Rubber Bumper GMaxon 288690-01G - Dual Step Assembly - LH 14 Inch - Rubber Bumper G288690-01G-MAXO$463.85
10Maxon 288690-01 - Dual Step Assembly LH 14 Inch RBR BMPRMaxon 288690-01 - Dual Step Assembly LH 14 Inch RBR BMPR288690-01-MAXO$364.86
10Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
10Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
11Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
11Maxon 288675-02G - Dual Step Weldment RH GMaxon 288675-02G - Dual Step Weldment RH G288675-02G-MAXO$395.06
11Maxon 288675-02 - Dual Step Weldment RHMaxon 288675-02 - Dual Step Weldment RH288675-02-MAXO$303.47
11Maxon 288690-02G - Dual Step Assembly RH 14 Inch Rubber Bumper GMaxon 288690-02G - Dual Step Assembly RH 14 Inch Rubber Bumper G288690-02G-MAXO$392.39
11Maxon 288690-02 - Dual Step Assembly RH 14 Inch Rubber BumperMaxon 288690-02 - Dual Step Assembly RH 14 Inch Rubber Bumper288690-02-MAXO$364.86
11Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
11Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
11Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
11Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
12Maxon 288675-01G - Dual Step Weldment LH GMaxon 288675-01G - Dual Step Weldment LH G288675-01G-MAXO$327.32
12Maxon 288675-01 - Dual Step Weldment LHMaxon 288675-01 - Dual Step Weldment LH288675-01-MAXO$303.47
12Maxon 288690-03G - Dual Step Assembly LH 13.5 Inch PE BMPR GMaxon 288690-03G - Dual Step Assembly LH 13.5 Inch PE BMPR G288690-03G-MAXO$397.82
12Maxon 288690-03 - Dual Step Assembly LH 13.5 Inch PE BumperMaxon 288690-03 - Dual Step Assembly LH 13.5 Inch PE Bumper288690-03-MAXO$370.29
12Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
12Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
13Maxon 288675-02G - Dual Step Weldment RH GMaxon 288675-02G - Dual Step Weldment RH G288675-02G-MAXO$395.06
13Maxon 288675-02 - Dual Step Weldment RHMaxon 288675-02 - Dual Step Weldment RH288675-02-MAXO$303.47
13Maxon 288690-04G - Dual Step Assembly RH 13.5 Inch PE BMPR GMaxon 288690-04G - Dual Step Assembly RH 13.5 Inch PE BMPR G288690-04G-MAXO$397.82
13Maxon 288690-04 - Dual Step Assembly RH 13.5 Inch PE BumperMaxon 288690-04 - Dual Step Assembly RH 13.5 Inch PE Bumper288690-04-MAXO$431.78
13Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
13Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
13Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
13Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
14Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
14Maxon 288675-31G - Dual Step Weldment w/ Oval Light LH GMaxon 288675-31G - Dual Step Weldment w/ Oval Light LH G288675-31G-MAXO$410.51
14Maxon 288675-31 - Dual Step Weldment w/ Oval Light LHMaxon 288675-31 - Dual Step Weldment w/ Oval Light LH288675-31-MAXO$349.41
14Maxon 288690-31G - Dual Step Assembly O/LGHT LH 14 Inch Rubber Bumper GMaxon 288690-31G - Dual Step Assembly O/LGHT LH 14 Inch Rubber Bumper G288690-31G-MAXO$475.56
14Maxon 288690-31 - Dual Step Assembly O/LGHT LH 14 Inch Rubber BumperMaxon 288690-31 - Dual Step Assembly O/LGHT LH 14 Inch Rubber Bumper288690-31-MAXO$414.50
14Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
14Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
14Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
14Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
15Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
15Maxon 288675-32G - Dual Step Weldment w/ Oval Light RH GMaxon 288675-32G - Dual Step Weldment w/ Oval Light RH G288675-32G-MAXO$457.04
15Maxon 288675-32 - Dual Step Weldment w/ Oval Light RHMaxon 288675-32 - Dual Step Weldment w/ Oval Light RH288675-32-MAXO$349.41
15Maxon 288690-32G - Dual Step Assembly O/LGHT RH 14 Inch Rubber Bumper GMaxon 288690-32G - Dual Step Assembly O/LGHT RH 14 Inch Rubber Bumper G288690-32G-MAXO$475.56
15Maxon 288690-32 - Dual Step Assembly O/ Light RH 14 Inch Rubber BumperMaxon 288690-32 - Dual Step Assembly O/ Light RH 14 Inch Rubber Bumper288690-32-MAXO$403.11
15Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
15Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
15Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
15Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
16Maxon 288675-31G - Dual Step Weldment w/ Oval Light LH GMaxon 288675-31G - Dual Step Weldment w/ Oval Light LH G288675-31G-MAXO$410.51
16Maxon 288675-31 - Dual Step Weldment w/ Oval Light LHMaxon 288675-31 - Dual Step Weldment w/ Oval Light LH288675-31-MAXO$349.41
16Maxon 288690-33G - Dual Step Assembly O/ Light LH 13.5 Inch PE Bumper GMaxon 288690-33G - Dual Step Assembly O/ Light LH 13.5 Inch PE Bumper G288690-33G-MAXO$480.99
16Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
16Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
16Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
16Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
17Maxon 288675-32G - Dual Step Weldment w/ Oval Light RH GMaxon 288675-32G - Dual Step Weldment w/ Oval Light RH G288675-32G-MAXO$457.04
17Maxon 288675-32 - Dual Step Weldment w/ Oval Light RHMaxon 288675-32 - Dual Step Weldment w/ Oval Light RH288675-32-MAXO$349.41
17Maxon 288690-34g - Dual Step Assembly O/LGHT RH 13.5 Inch PE Bumper GMaxon 288690-34g - Dual Step Assembly O/LGHT RH 13.5 Inch PE Bumper G288690-34G-MAXO$480.99
17Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
17Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
17Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
17Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
18Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
18Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
18Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
18Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
18Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
19Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
19Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
19Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
19Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
20Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
20Maxon 288675-33G - Channel Weldment w/ Oval Light - No Steps LH GMaxon 288675-33G - Channel Weldment w/ Oval Light - No Steps LH G288675-33G-MAXO$470.43
20Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
20Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
20Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
20Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
21Maxon 288675-33G - Channel Weldment w/ Oval Light - No Steps LH GMaxon 288675-33G - Channel Weldment w/ Oval Light - No Steps LH G288675-33G-MAXO$470.43
21Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
21Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
21Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
21Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
