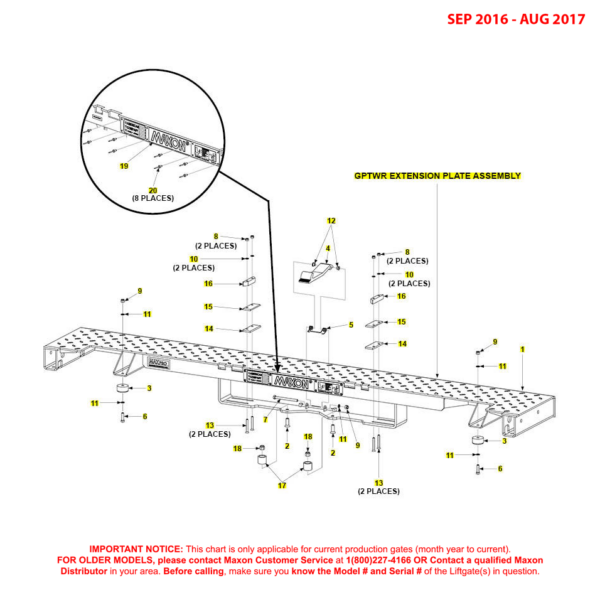

Maxon GPTWR (Sep 2016 - Aug 2017) Extension Plate Assembly Diagram

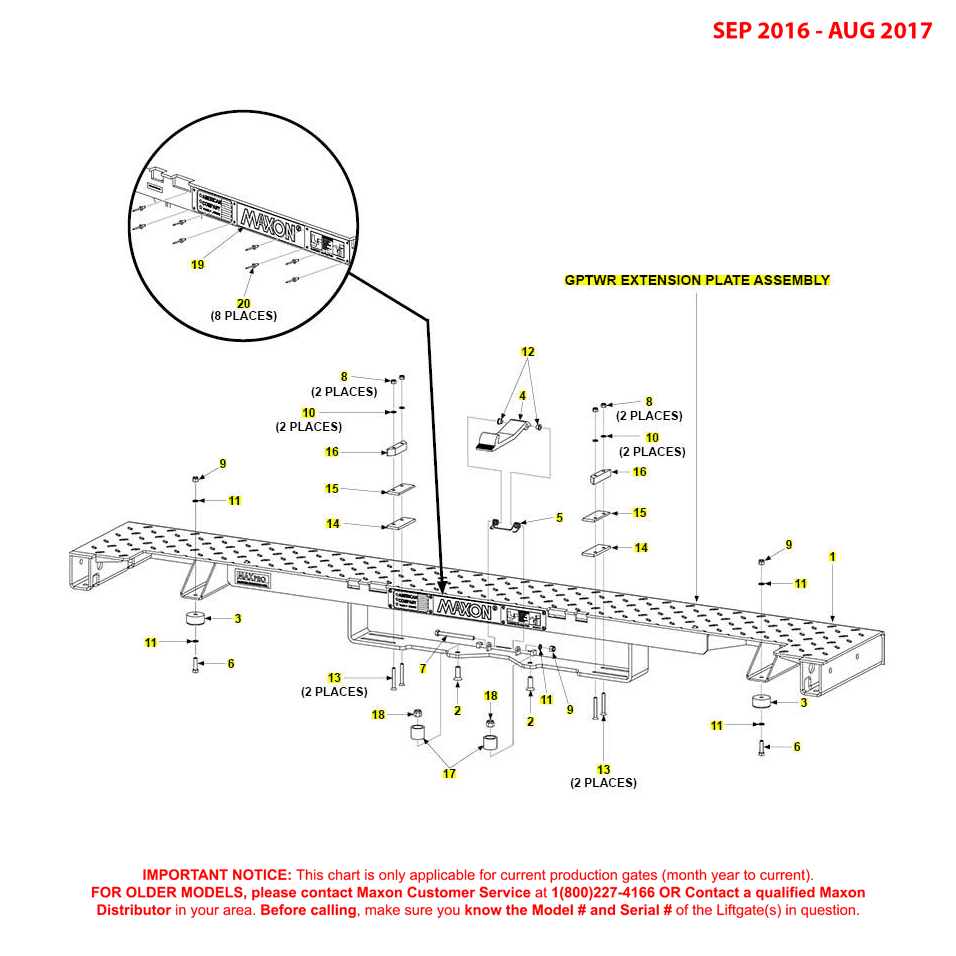

Maxon GPTWR (Sep 2016 – Aug 2017) Extension Plate Assembly Diagram

SKU: GPTWR-SEP16-AUG17-EPA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 288701-01G - EXT PL Assembly GPTWR 96 Inch GALVMaxon 288701-01G - EXT PL Assembly GPTWR 96 Inch GALV288701-01G-MAXO$1,655.55
0Maxon 288701-02g - EXT Plate Assembly GPTWR 102 Inch GALVMaxon 288701-02g - EXT Plate Assembly GPTWR 102 Inch GALV288701-02G-MAXO$1,733.55
0Maxon 288701-02 - EXT PL Assembly GPTWR 102 InchMaxon 288701-02 - EXT PL Assembly GPTWR 102 Inch288701-02-MAXO$1,301.63
1Maxon 288711-02g - EXT PL Weldment GPTWR 102 Inch GALMaxon 288711-02g - EXT PL Weldment GPTWR 102 Inch GAL288711-02G-MAXO$1,498.58
2Maxon 900745-04 - Screw Soc FL .5-13 X 1.5 InchMaxon 900745-04 - Screw Soc FL .5-13 X 1.5 Inch900745-04-MAXO$3.69
3Maxon 267708-01 - Nylon BumperMaxon 267708-01 - Nylon Bumper267708-01-MAXO$24.17
4Maxon 282257-01 - Latch Walk RampMaxon 282257-01 - Latch Walk Ramp282257-01-MAXO$33.23
5Maxon 282258-01 - Spring W/Ramp LatchMaxon 282258-01 - Spring W/Ramp Latch282258-01-MAXO$17.31
6Maxon 900014-1 - Screw Hex Cap .38-16 X 1.38 G8 ZCMaxon 900014-1 - Screw Hex Cap .38-16 X 1.38 G8 ZC900014-1-MAXO$0.80
7Maxon 900014-15 - Screw Hex Cap .38-16 X 4.5 G8 ZCMaxon 900014-15 - Screw Hex Cap .38-16 X 4.5 G8 ZC900014-15-MAXO$3.17
8Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
9Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
10Maxon 902000-8 - Flat Washer - .312 .063 THKMaxon 902000-8 - Flat Washer - .312 .063 THK902000-8-MAXO$0.32
11Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
12Maxon 908094-01 - BRG Flange .38 ID X .38 LGMaxon 908094-01 - BRG Flange .38 ID X .38 LG908094-01-MAXO$1.74
13Maxon 900021-9 - Screw SOC .312-18 X 2-1/2 FLMaxon 900021-9 - Screw SOC .312-18 X 2-1/2 FL900021-9-MAXO$0.95
14Maxon 282346-01G - Flat GalvanizedMaxon 282346-01G - Flat Galvanized282346-01G-MAXO$13.46
14Maxon 282346-01 - FlatMaxon 282346-01 - Flat282346-01-MAXO$10.22
15Maxon 282348-01 - Flat SpacerMaxon 282348-01 - Flat Spacer282348-01-MAXO$8.33
16Maxon 282347-01 - Walk-In Ramp PadMaxon 282347-01 - Walk-In Ramp Pad282347-01-MAXO$22.11
17Maxon 282344-01G - Stopper 1.5 DIA X 1.25 LG GALVMaxon 282344-01G - Stopper 1.5 DIA X 1.25 LG GALV282344-01G-MAXO$29.78
17Maxon 282344-01 - StopperMaxon 282344-01 - Stopper282344-01-MAXO$21.72
18Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
20Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565904005-2-MAXO$0.72

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
