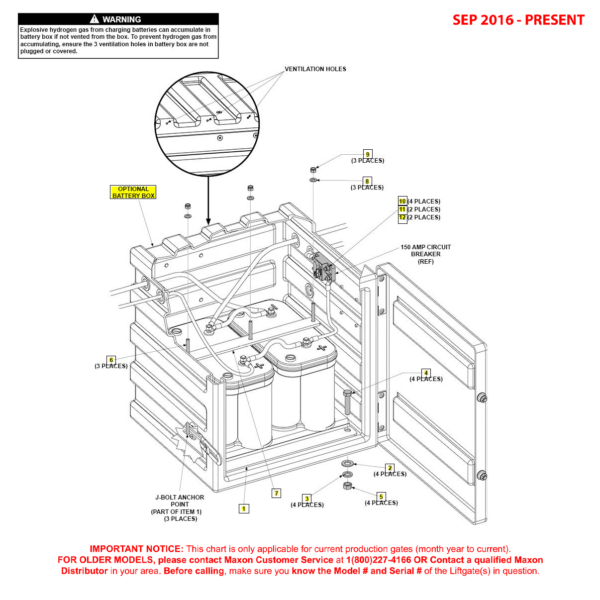

Maxon GPTWR (Sep 2016 – Present) Optional Battery Box Assembly Diagram

ID	Title	SKU	Price
1	Maxon 289871-01 - Mounting Plate 2 Battery	289871-01-MAXO	$88.52
2	Maxon 902013-14 - Washer Flat 9/16 Inch SAE ZC	902013-14-MAXO	$0.48
3	Maxon 902011-7 - Washer Lock .563 .141 THK	902011-7-MAXO	$0.26
4	Maxon 900033-6 - Screw Cap .5-20 X 2.25 Inch GR8 ZC	900033-6-MAXO	$1.77
5	Maxon 901011-10 - Nut Hex Head .500-20 UNF-2B	901011-10-MAXO	$0.44
6	Maxon 289872-01 - Battery Tie Down J-Bolt 5/16	289872-01-MAXO	$4.26
7	Maxon 289874-01 - Battery Strap 2 Battery	289874-01-MAXO	$17.73
8	Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZC	902013-10-MAXO	$0.18
9	Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS	903106-10-MAXO	$0.35
10	Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564	902013-09-MAXO	$0.11
11	Maxon 900002-5 - Screw PH Pan HD ZC 1/4-20 X 1.25 Inch	900002-5-MAXO	$0.20
12	Maxon 901000 - Nylon Nut 1/4-20 Inch Zinc	901000-MAXO	$0.15

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
