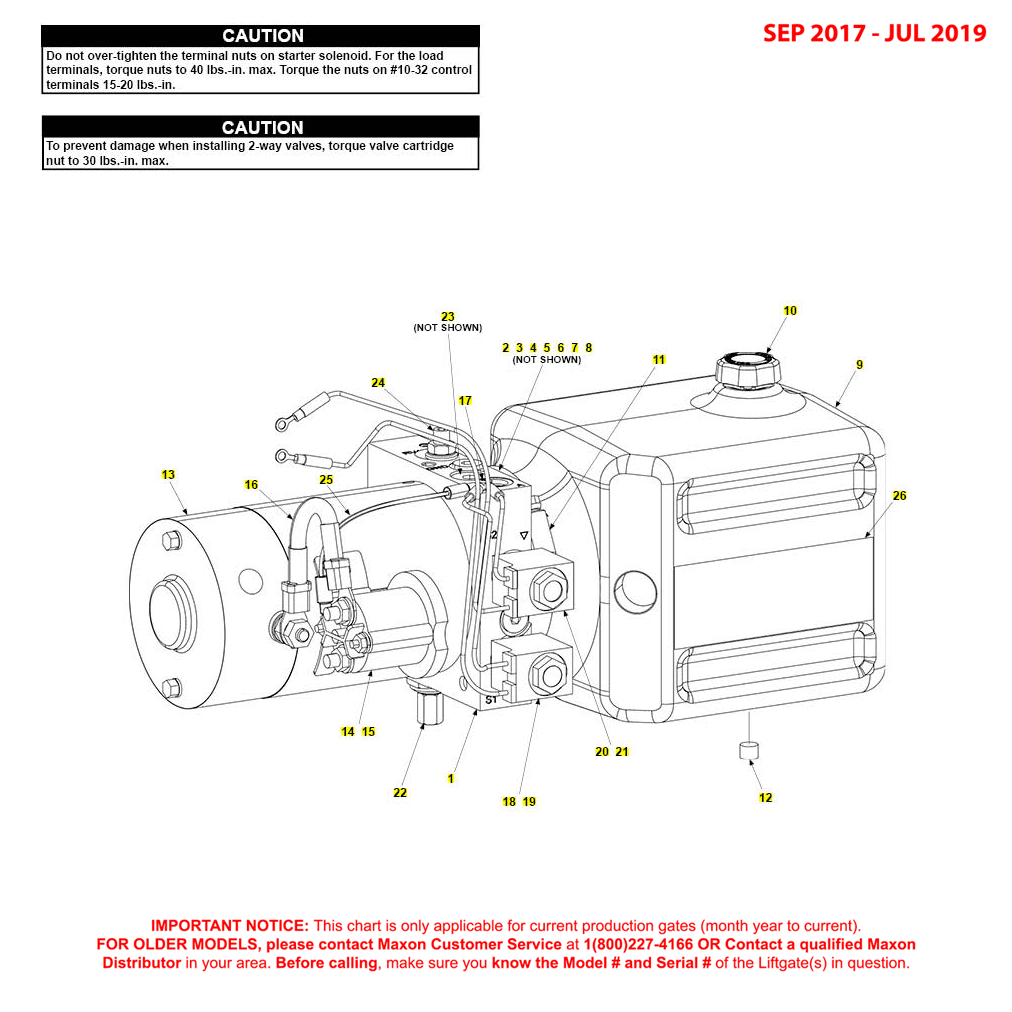

Maxon GPTWR (Sep 2017 - Jul 2019) 12VDC Power Unit Diagram

Maxon GPTWR (Sep 2017 – Jul 2019) 12VDC Power Unit Diagram

SKU: GPTWR-SEP17-JUL19-12VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 298281-01 - 12 VDC Power Unit 204 H/DutyMaxon 298281-01 - 12 VDC Power Unit 204 H/Duty298281-01-MAXO$1,185.60
1Maxon 290151 - Base Assembly M3551 MOD STD MTRMaxon 290151 - Base Assembly M3551 MOD STD MTR290151-MAXO$998.57
2Maxon 290159 - O-Ring Reservoir 3.75 X 4.0 X .13-240Maxon 290159 - O-Ring Reservoir 3.75 X 4.0 X .13-240290159-MAXO$7.98
3Maxon 290160 - Seal Shaft Heavy DutyMaxon 290160 - Seal Shaft Heavy Duty290160-MAXO$17.49
4Maxon 297565 - O-Ring 0.50 X 0.63 X 0.06 -014Maxon 297565 - O-Ring 0.50 X 0.63 X 0.06 -014297565-MAXO$0.93
5Maxon 290150 - Pump Assembly QM MDLR DC BRGS BLD RSVMaxon 290150 - Pump Assembly QM MDLR DC BRGS BLD RSV290150-MAXO$698.15
6Maxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPTMaxon 290141 - Tube SUCT 90 H/MT M-400 3/8NPT290141-MAXO$11.30
7Maxon 269331 - Filter Screen M-Series SUCTMaxon 269331 - Filter Screen M-Series SUCT269331-MAXO$7.82
8Maxon 290143 - Tube Return 90 DEG 1/8NPT 3 3/8Maxon 290143 - Tube Return 90 DEG 1/8NPT 3 3/8290143-MAXO$14.22
9Maxon 290145 - Reservoir Plastic 6.7 X 6.7 X 9.0 H/MTMaxon 290145 - Reservoir Plastic 6.7 X 6.7 X 9.0 H/MT290145-MAXO$203.88
10Maxon 287281 - Plug RESEV Breather-FillerMaxon 287281 - Plug RESEV Breather-Filler287281-MAXO$11.78
11Maxon 287277 - Clam Hose Worm Gear RSV M-SERMaxon 287277 - Clam Hose Worm Gear RSV M-SER287277-MAXO$18.21
12Maxon 287282 - Plug SAE O-Ring 9/16-18 HEX SOMaxon 287282 - Plug SAE O-Ring 9/16-18 HEX SO287282-MAXO$11.30
13Maxon 290198 - Motor DC 12V 4.5 Inch 1 Term LongMaxon 290198 - Motor DC 12V 4.5 Inch 1 Term Long290198-MAXO$866.31
14Maxon 269339 - Switch SOL ACT MTR ST 12 VDCMaxon 269339 - Switch SOL ACT MTR ST 12 VDC269339-MAXO$114.96
15Maxon 269340 - Screw Pan HD TORX 10-32 X 5/16 InchMaxon 269340 - Screw Pan HD TORX 10-32 X 5/16 Inch269340-MAXO$1.52
16Maxon 287274 - Cable Insulated W/Lugs 4G 6 Inch LMaxon 287274 - Cable Insulated W/Lugs 4G 6 Inch L287274-MAXO$23.42
18Maxon 290153 - Cartridge 4-W/2-P 8 1/2 Inch StemMaxon 290153 - Cartridge 4-W/2-P 8 1/2 Inch Stem290153-MAXO$217.26
19Maxon 290225 - Coil Assembly 10VDC W/Terms - RED ENDMaxon 290225 - Coil Assembly 10VDC W/Terms - RED END290225-MAXO$157.73
20Maxon 269417 - Cartridge 2W/2P NC Poppet 4000Maxon 269417 - Cartridge 2W/2P NC Poppet 4000269417-MAXO$192.21
21Maxon 290169 - Coil 10VDC 8 Dual Lead 10 RingMaxon 290169 - Coil 10VDC 8 Dual Lead 10 Ring290169-MAXO$174.54
22Maxon 290171 - Valve Max VM01 HDM 10 T.30-95Maxon 290171 - Valve Max VM01 HDM 10 T.30-95290171-MAXO$71.18
23Maxon 269346 - Poppet Assembly PRSS CMP FL CNTRLMaxon 269346 - Poppet Assembly PRSS CMP FL CNTRL269346-MAXO$90.11
24Maxon 290158 - Valve Assembly R/V 1001 PSI And UpMaxon 290158 - Valve Assembly R/V 1001 PSI And Up290158-MAXO$55.17

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
