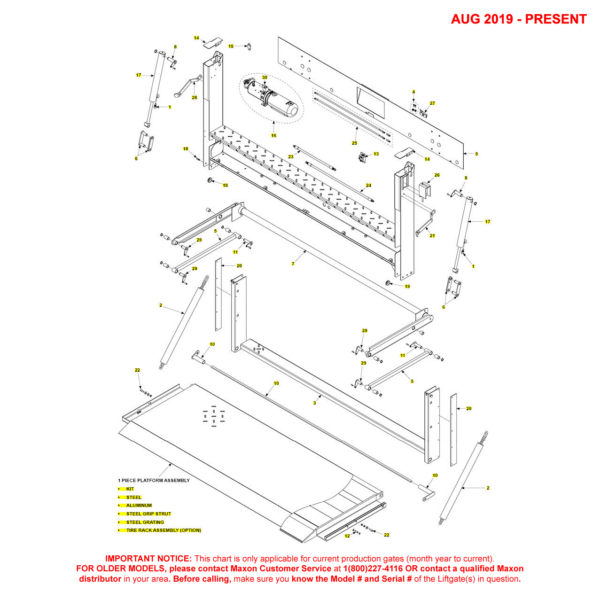

Maxon Me2 C2 Stakebed And Van Body (Aug 2019 - Present) Diagram

Maxon Me2 C2 Stakebed And Van Body (Aug 2019 – Present) Diagram

SKU: ME2-C2-STAKEVAN-AUG19-PRES-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 295055-04-301 - C2 ST P/F Weldment 90.25 Inch X 35.75 InchMaxon 295055-04-301 - C2 ST P/F Weldment 90.25 Inch X 35.75 Inch295055-04-301-MAXO$1,599.98
1Maxon 295055-04 - C2 ST P/F Weldment 95.25 Inch X 35.75 InchMaxon 295055-04 - C2 ST P/F Weldment 95.25 Inch X 35.75 Inch295055-04-MAXO$1,199.25
1Maxon 295477-01 - C2 92 Replacement Steel Platform 95.25 x 42 Inches (2532)Maxon 295477-01 - C2 92 Replacement Steel Platform 95.25 x 42 Inches (2532)295477-01-MAXO$1,530.75
1Maxon 295478-01 - C2 92 Replacement Aluminum Platform 95.25 x 37.50 Inches (2533 1642)Maxon 295478-01 - C2 92 Replacement Aluminum Platform 95.25 x 37.50 Inches (2533 1642)295478-01-MAXO$2,106.00
1Maxon 295479-01 - C2 92 Replacement Aluminum Platform 95.25 x 42.25 Inch (2534 1224)Maxon 295479-01 - C2 92 Replacement Aluminum Platform 95.25 x 42.25 Inch (2534 1224)295479-01-MAXO$2,575.95
1Maxon 295640-01 - AL P/F Weldment 95.25 X 37.50 InchMaxon 295640-01 - AL P/F Weldment 95.25 X 37.50 Inch295640-01-MAXO$1,298.70
1Maxon 295640-02 - AL P/F Weldment 95.25 Inch X 42.25 InchMaxon 295640-02 - AL P/F Weldment 95.25 Inch X 42.25 Inch295640-02-MAXO$1,315.28
1Maxon 906934-01 - Cylinder Flow ValveMaxon 906934-01 - Cylinder Flow Valve906934-01-MAXO$60.18
2Maxon 295436-02 - C2 Replacement 40-Link Chain And Sleeve AssemblyMaxon 295436-02 - C2 Replacement 40-Link Chain And Sleeve Assembly295436-02-MAXO$131.28
2Maxon 295437-02 - C2 Replacement 33-Link Chain And Sleeve For Aluminum Platform (13650)Maxon 295437-02 - C2 Replacement 33-Link Chain And Sleeve For Aluminum Platform (13650)295437-02-MAXO$106.67
3Maxon 295481-01 - C2 Replacement Pin Mount Assembly For 92 Inch Gate (2538)Maxon 295481-01 - C2 Replacement Pin Mount Assembly For 92 Inch Gate (2538)295481-01-MAXO$808.13
4Maxon 295440-01 - License Plate Mount Kit (1111)Maxon 295440-01 - License Plate Mount Kit (1111)295440-01-MAXO$5.51
5Maxon 295482-01 - C2 92 Replacement Parallel Arm Assembly (2539)Maxon 295482-01 - C2 92 Replacement Parallel Arm Assembly (2539)295482-01-MAXO$170.81
6Maxon 295483-01 - C2 92 Replacement Link Plate (2540)Maxon 295483-01 - C2 92 Replacement Link Plate (2540)295483-01-MAXO$71.66
7Maxon 295484-01 - C2 Replacement Lift Frame 91 Inch LG (2544)Maxon 295484-01 - C2 Replacement Lift Frame 91 Inch LG (2544)295484-01-MAXO$1,025.70
8Maxon 295444-01 - C2 7/8 Inch Replacement Cylinder Pin (2180)Maxon 295444-01 - C2 7/8 Inch Replacement Cylinder Pin (2180)295444-01-MAXO$44.42
9Maxon 299665-01 - M/F Cover Assembly STKBD 92 InchMaxon 299665-01 - M/F Cover Assembly STKBD 92 Inch299665-01-MAXO$301.67
10Maxon 295486-01 - C2 Torsion Spring Kit For Steel Platform (8119)Maxon 295486-01 - C2 Torsion Spring Kit For Steel Platform (8119)295486-01-MAXO$285.05
10Maxon 295487-01 - C2 Torsion Spring Kit For Aluminum Platform (8033)Maxon 295487-01 - C2 Torsion Spring Kit For Aluminum Platform (8033)295487-01-MAXO$138.78
11Maxon 295449-01 - C2 3/4 Inch Replacement PLC Front Arm Pin (2181)Maxon 295449-01 - C2 3/4 Inch Replacement PLC Front Arm Pin (2181)295449-01-MAXO$48.41
12Maxon 295473-01 - Replacement Platform Chain Pin (4712)Maxon 295473-01 - Replacement Platform Chain Pin (4712)295473-01-MAXO$12.72
13Maxon 295450-01 - Replacement 150 AMP Circuit Breaker (998)Maxon 295450-01 - Replacement 150 AMP Circuit Breaker (998)295450-01-MAXO$78.32
14Maxon 295451-01 - C2 Replacement Column Cover (2015)Maxon 295451-01 - C2 Replacement Column Cover (2015)295451-01-MAXO$19.79
16Maxon 295151-01 - 12 VDC Pump and MotorMaxon 295151-01 - 12 VDC Pump and Motor295151-01-MAXO$833.87
17Maxon 295489-01 - C2 92 Replacement Cylinder STK Bed (2559)Maxon 295489-01 - C2 92 Replacement Cylinder STK Bed (2559)295489-01-MAXO$668.00
18Maxon 295472-01 - Replacement Drop Away Pin (1010)Maxon 295472-01 - Replacement Drop Away Pin (1010)295472-01-MAXO$14.09
20Maxon 295456-02 - C2 92 Replacement Plastic Cover (2560)Maxon 295456-02 - C2 92 Replacement Plastic Cover (2560)295456-02-MAXO$41.30
21Maxon 295494-02 - C2 92 Replacement Latch Kit - Right (2584)Maxon 295494-02 - C2 92 Replacement Latch Kit - Right (2584)295494-02-MAXO$45.00
22Maxon 295468-01 - C2 Replacement Platform Latch Pin (2020)Maxon 295468-01 - C2 Replacement Platform Latch Pin (2020)295468-01-MAXO$16.14
23Maxon 289446-06 - 1/4 Hydraulic Hose 27 Inch LGMaxon 289446-06 - 1/4 Hydraulic Hose 27 Inch LG289446-06-MAXO$29.49
24Maxon 289446-05 - 1/4 Hydraulic Hose 86 Inch LGMaxon 289446-05 - 1/4 Hydraulic Hose 86 Inch LG289446-05-MAXO$59.90
25Maxon 295459-02 - Replacement 4 GA. 2 Wire w/ Lugs-36 Ft (4708)Maxon 295459-02 - Replacement 4 GA. 2 Wire w/ Lugs-36 Ft (4708)295459-02-MAXO$258.68
26Maxon 295461-01 - Replacement Control Switch (987)Maxon 295461-01 - Replacement Control Switch (987)295461-01-MAXO$167.39
27Maxon 295462-01 - Replacement License Plate Bracket (10199)Maxon 295462-01 - Replacement License Plate Bracket (10199)295462-01-MAXO$30.98
27Maxon 907210-01 - License Plate Light Assembly KitMaxon 907210-01 - License Plate Light Assembly Kit907210-01-MAXO$4.25
28Maxon 295494-01 - C2 92 Replacement Latch Kit-Left (2583)Maxon 295494-01 - C2 92 Replacement Latch Kit-Left (2583)295494-01-MAXO$45.00
29Maxon 295449-02 - C2 3/4 Inch Replacement Front Arm Pin (2183)Maxon 295449-02 - C2 3/4 Inch Replacement Front Arm Pin (2183)295449-02-MAXO$43.73
30Maxon 295465-01 - Solenoid With Connector (9645)Maxon 295465-01 - Solenoid With Connector (9645)295465-01-MAXO$136.92
32Maxon 295055-03 - C2 ST P/F Weldment 95.25 Inch X 41.75 InchMaxon 295055-03 - C2 ST P/F Weldment 95.25 Inch X 41.75 Inch295055-03-MAXO$1,685.78

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
