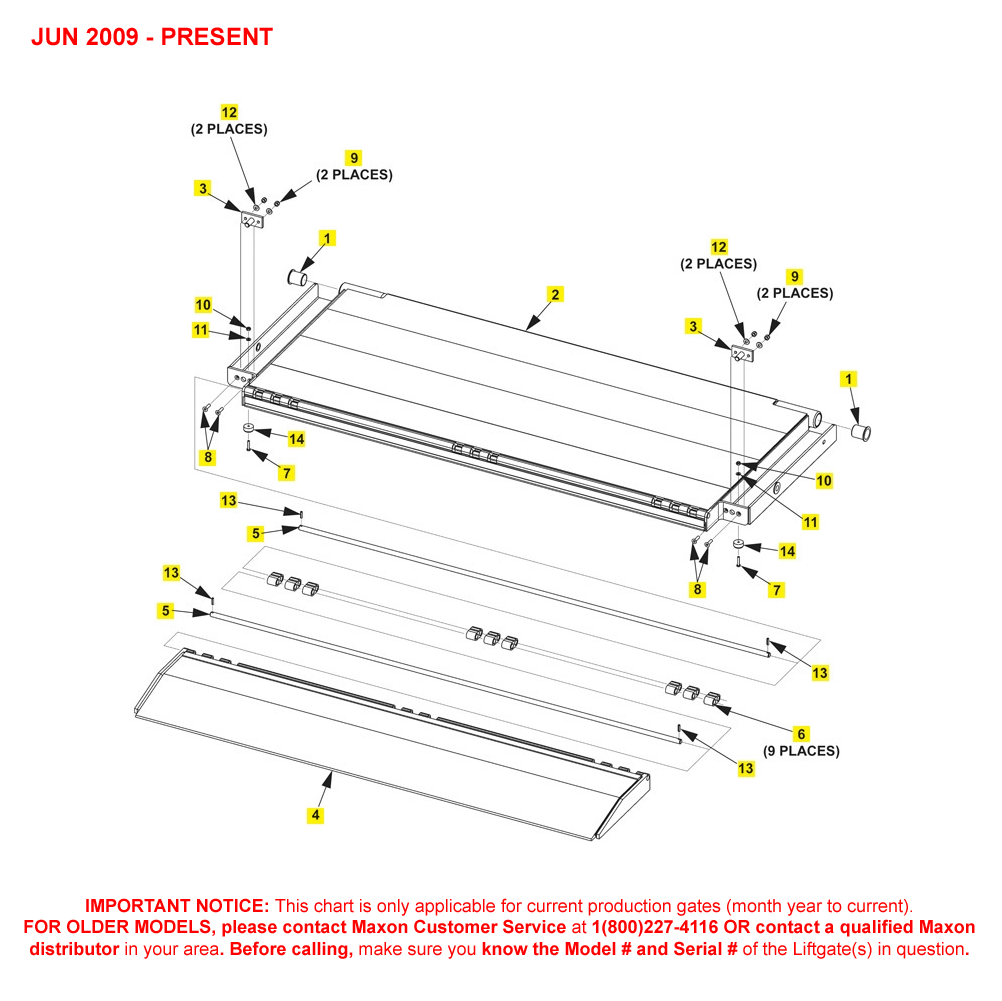

Maxon MM-1300 (Jun 2009 - Present) Aluminum Platform And Flipover Diagram

Maxon MM-1300 (Jun 2009 – Present) Aluminum Platform And Flipover Diagram

SKU: MM-1300-JUN09-PRES-ALPFFO-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 261837-12 - Bushing FLNG PLST 1.121 D X 1.50 InchMaxon 261837-12 - Bushing FLNG PLST 1.121 D X 1.50 Inch261837-12-MAXO$18.35
3Maxon 266347-01 - Latch Holder WeldmentMaxon 266347-01 - Latch Holder Weldment266347-01-MAXO$13.04
6Maxon 280109 - Hinge AssemblyMaxon 280109 - Hinge Assembly280109-MAXO$19.22
7Maxon 900007-7 - Screw PH Pan HD ZC 10-24 X 1.0 InchMaxon 900007-7 - Screw PH Pan HD ZC 10-24 X 1.0 Inch900007-7-MAXO$0.11
8Maxon 900044-6 - Screw SOC FL 1/4-20 X 1 Inch AlloyMaxon 900044-6 - Screw SOC FL 1/4-20 X 1 Inch Alloy900044-6-MAXO$1.05
9Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
10Maxon 901003 - Nut Nylon 10-24 2B ZCMaxon 901003 - Nut Nylon 10-24 2B ZC901003-MAXO$0.11
11Maxon 902000-6 - Washer Flat #10.063 Inch THKMaxon 902000-6 - Washer Flat #10.063 Inch THK902000-6-MAXO$0.99
12Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564902013-09-MAXO$0.11
13Maxon 905015-1 - Pin Roll .188 X .75 ZincMaxon 905015-1 - Pin Roll .188 X .75 Zinc905015-1-MAXO$0.20
14Maxon 905314-04 - Bumper CYL w/ Washer DIA 1.0 X .5Maxon 905314-04 - Bumper CYL w/ Washer DIA 1.0 X .5905314-04-MAXO$6.45

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
