| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 3 |  | Maxon 261837-12 - Bushing FLNG PLST 1.121 D X 1.50 Inch | 261837-12-MAXO | $18.35 | ||
| 4 | | Maxon 900007-7 - Screw PH Pan HD ZC 10-24 X 1.0 Inch | 900007-7-MAXO | $0.11 | ||
| 5 | | Maxon 901003 - Nut Nylon 10-24 2B ZC | 901003-MAXO | $0.11 | ||
| 6 | | Maxon 902000-6 - Washer Flat #10.063 Inch THK | 902000-6-MAXO | $0.99 | ||
| 7 | | Maxon 282144-01 - Holder Weldment | 282144-01-MAXO | $18.53 | ||
| 9 | | Maxon 901000 - Nylon Nut 1/4-20 Inch Zinc | 901000-MAXO | $0.15 | ||
| 10 | | Maxon 905314-04 - Bumper CYL w/ Washer DIA 1.0 X .5 | 905314-04-MAXO | $6.45 |
MM-1650 Diagrams

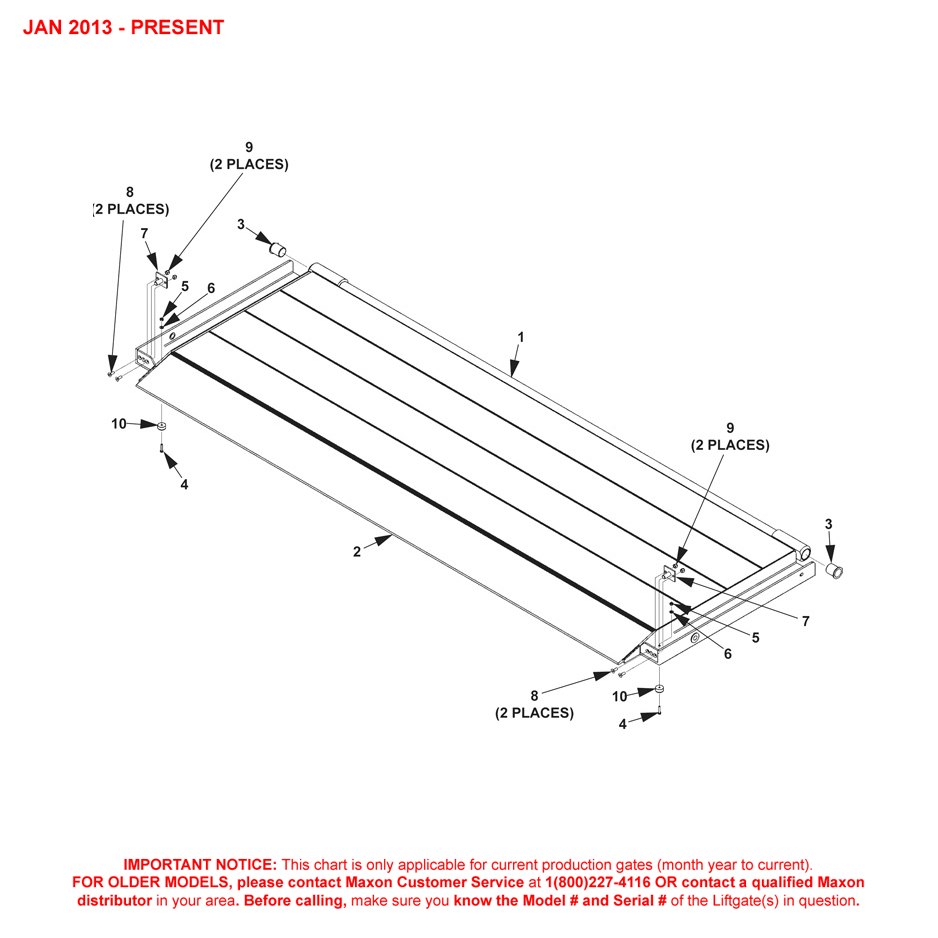

Maxon MM-1650 (Jan 2013 – Present) Aluminum Platform Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
