| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 224370-11 - Hose Plastic X 87 Inch LG | 224370-11-MAXO | $20.01 | ||
| 2 | | Maxon 224370-13 - Hose Plastic .25 X 82 Inch LG | 224370-13-MAXO | $12.92 | ||
| 3 | | Maxon 264349 - Elbow 90 DEG M 1/4 NPT | 264349-MAXO | $9.27 | ||
| 4 | | Maxon 264440 - Hose/A 1/4HP JIC#6F M Pipe 1/4 | 264440-MAXO | $52.89 | ||
| 5 | | Maxon 264392 - Cylinder Seal Kit | 264392-MAXO | $130.04 | ||
| 5 | | Maxon 264442 - Cylinder Assembly | 264442-MAXO | $1,604.85 |
MM-1650 Diagrams

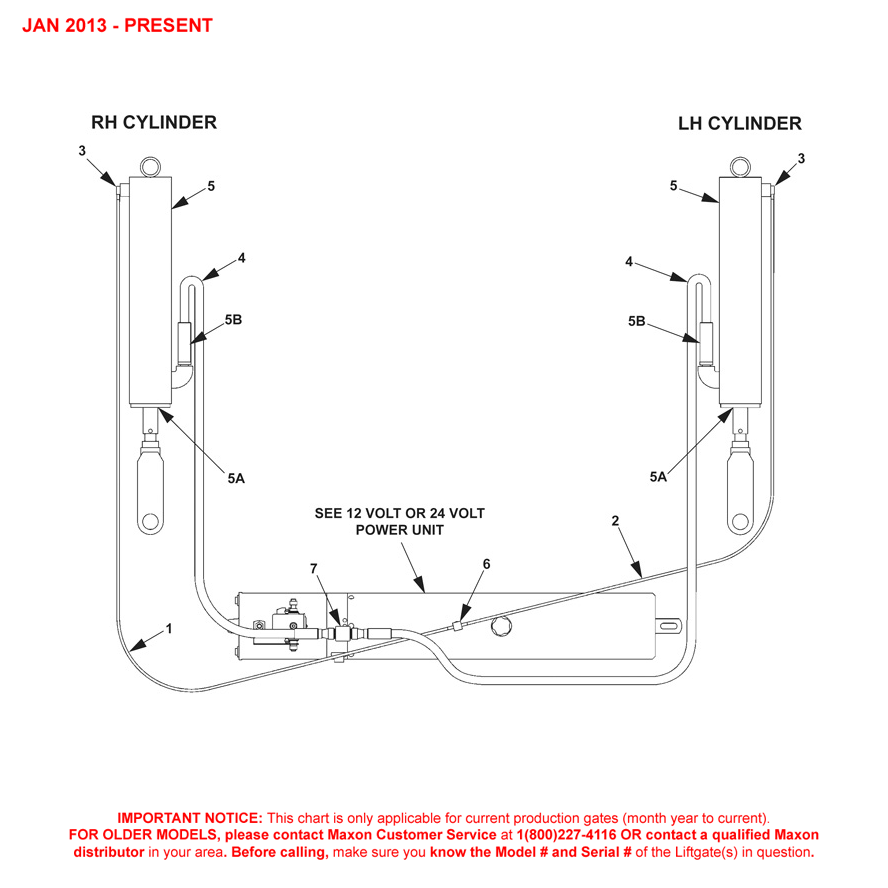

Maxon MM-1650 (Jan 2013 – Present) Hydraulic Components Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
