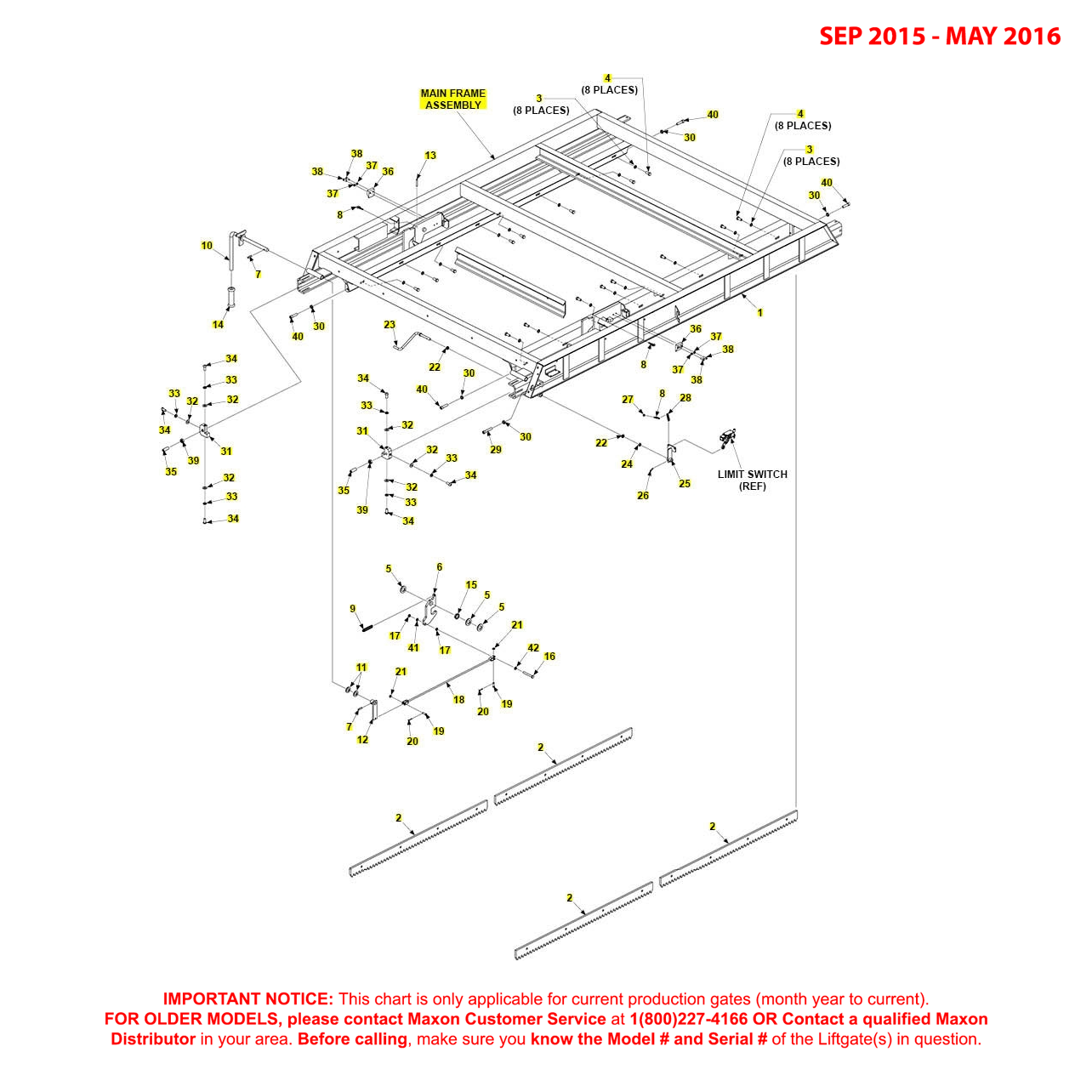

Maxon RA (Sep 2015 - May 2016) Main Frame Assembly Diagram

Maxon RA (Sep 2015 – May 2016) Main Frame Assembly Diagram

SKU: RA-SEP15-MAY16-MFA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 284529-03 - Mainframe Assembly 82 InchMaxon 284529-03 - Mainframe Assembly 82 Inch284529-03-MAXO$4,871.10
2Maxon 286996-01 - RECT Rack RAMaxon 286996-01 - RECT Rack RA286996-01-MAXO$221.57
3Maxon 903448-02 - Washer NORD-Lock .38/M10 SSMaxon 903448-02 - Washer NORD-Lock .38/M10 SS903448-02-MAXO$4.25
4Maxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SSMaxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SS900764-05-MAXO$0.59
5Maxon 903434-15 - Washer Flat M20 SSMaxon 903434-15 - Washer Flat M20 SS903434-15-MAXO$1.10
6Maxon 285368-02 - Latch Hook RA Z/PMaxon 285368-02 - Latch Hook RA Z/P285368-02-MAXO$29.27
7Maxon 905033 - Roll Pin .250 O.D. X 1.00 Inch LGMaxon 905033 - Roll Pin .250 O.D. X 1.00 Inch LG905033-MAXO$0.30
8Maxon 285151-01 - Eye Bolt 10-24Maxon 285151-01 - Eye Bolt 10-24285151-01-MAXO$0.89
9Maxon 215345 - Spring Extension .093 X 2.50Maxon 215345 - Spring Extension .093 X 2.50215345-MAXO$10.25
10Maxon 285369-02 - Rod Handle Weldment RA Z/PMaxon 285369-02 - Rod Handle Weldment RA Z/P285369-02-MAXO$22.95
11Maxon 903434-13 - Washer Flat M16 SSMaxon 903434-13 - Washer Flat M16 SS903434-13-MAXO$0.72
12Maxon 285367-02 - Handle Lever Weldment Z/PMaxon 285367-02 - Handle Lever Weldment Z/P285367-02-MAXO$30.93
13Maxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LGMaxon 905033-1 - Roll Pin .250 O.D. X 1.50 Inch LG905033-1-MAXO$0.32
15Maxon 265072 - Bearing Self Lube .75 ID X .375Maxon 265072 - Bearing Self Lube .75 ID X .375265072-MAXO$2.42
16Maxon 900009-10 - Screw Cap 5/16-18 X 2-1/2 Inch G8 ZCMaxon 900009-10 - Screw Cap 5/16-18 X 2-1/2 Inch G8 ZC900009-10-MAXO$0.69
17Maxon 903114-01 - Nut Hex Thin JAM .312-18 SSMaxon 903114-01 - Nut Hex Thin JAM .312-18 SS903114-01-MAXO$0.24
18Maxon 285370-02 - Link Bar Weldment Z/PMaxon 285370-02 - Link Bar Weldment Z/P285370-02-MAXO$36.00
19Maxon 904724-01 - Pin Clevis 0.25 X 7/8 LG SSMaxon 904724-01 - Pin Clevis 0.25 X 7/8 LG SS904724-01-MAXO$4.97
20Maxon 904725-01 - Pin Cotter 1/16 X 1/2 Inch SSMaxon 904725-01 - Pin Cotter 1/16 X 1/2 Inch SS904725-01-MAXO$0.11
21Maxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZCMaxon 902000-1 - Washer Flat 1/4 X 1/16 Inch USS ZC902000-1-MAXO$0.20
22Maxon 908062-01 - Self Lube Bearing .38 X .25 InchMaxon 908062-01 - Self Lube Bearing .38 X .25 Inch908062-01-MAXO$4.35
23Maxon 284924-01 - Lever Rod Weldment RAMaxon 284924-01 - Lever Rod Weldment RA284924-01-MAXO$16.10
24Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
25Maxon 284925-01 - Protector Arm - Lever WeldmentMaxon 284925-01 - Protector Arm - Lever Weldment284925-01-MAXO$41.76
26Maxon 904719-06 - Pin Roll .188 X .75 Inch LG SSMaxon 904719-06 - Pin Roll .188 X .75 Inch LG SS904719-06-MAXO$0.32
27Maxon 903129-01 - Nut Nylon Insert Thin 10-24 SSMaxon 903129-01 - Nut Nylon Insert Thin 10-24 SS903129-01-MAXO$0.21
28Maxon 908176-02 - Spring Ext .38 OD X .048 WR Inch SSMaxon 908176-02 - Spring Ext .38 OD X .048 WR Inch SS908176-02-MAXO$26.06
30Maxon 903107-02 - Nut Hex .375-16 UNC SSMaxon 903107-02 - Nut Hex .375-16 UNC SS903107-02-MAXO$0.39
31Maxon 284510-03 - Sliding Stop Block FrontMaxon 284510-03 - Sliding Stop Block Front284510-03-MAXO$42.96
32Maxon 903409-03 - Washer - FEND .41 X .88 Inch OD SSMaxon 903409-03 - Washer - FEND .41 X .88 Inch OD SS903409-03-MAXO$0.14
33Maxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID InchMaxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID Inch902019-5-MAXO$0.45
34Maxon 900769-04 - Screw BTN SCT .38-16 X .88 Inch SSMaxon 900769-04 - Screw BTN SCT .38-16 X .88 Inch SS900769-04-MAXO$1.01
35Maxon 901209-07 - Screw Set Hex Cup .50-20 X 1.5 Inch SSMaxon 901209-07 - Screw Set Hex Cup .50-20 X 1.5 Inch SS901209-07-MAXO$4.61
36Maxon 284539-01 - Wear PadMaxon 284539-01 - Wear Pad284539-01-MAXO$16.41
37Maxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID InchMaxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID Inch902019-3-MAXO$0.12
38Maxon 900719-05 - Screw Button .25-20 X .75 Inch SSMaxon 900719-05 - Screw Button .25-20 X .75 Inch SS900719-05-MAXO$0.38
39Maxon 903154-01 - Nut Hex THN 1/2"-20 SSMaxon 903154-01 - Nut Hex THN 1/2"-20 SS903154-01-MAXO$0.74
40Maxon 900065-06 - Screw SCT HD Cap .375-16 X 1.50 InchMaxon 900065-06 - Screw SCT HD Cap .375-16 X 1.50 Inch900065-06-MAXO$1.88
41Maxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID InchMaxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID Inch902019-4-MAXO$0.12
42Maxon 903434-09 - Washer Flat M8 SSMaxon 903434-09 - Washer Flat M8 SS903434-09-MAXO$0.12

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
