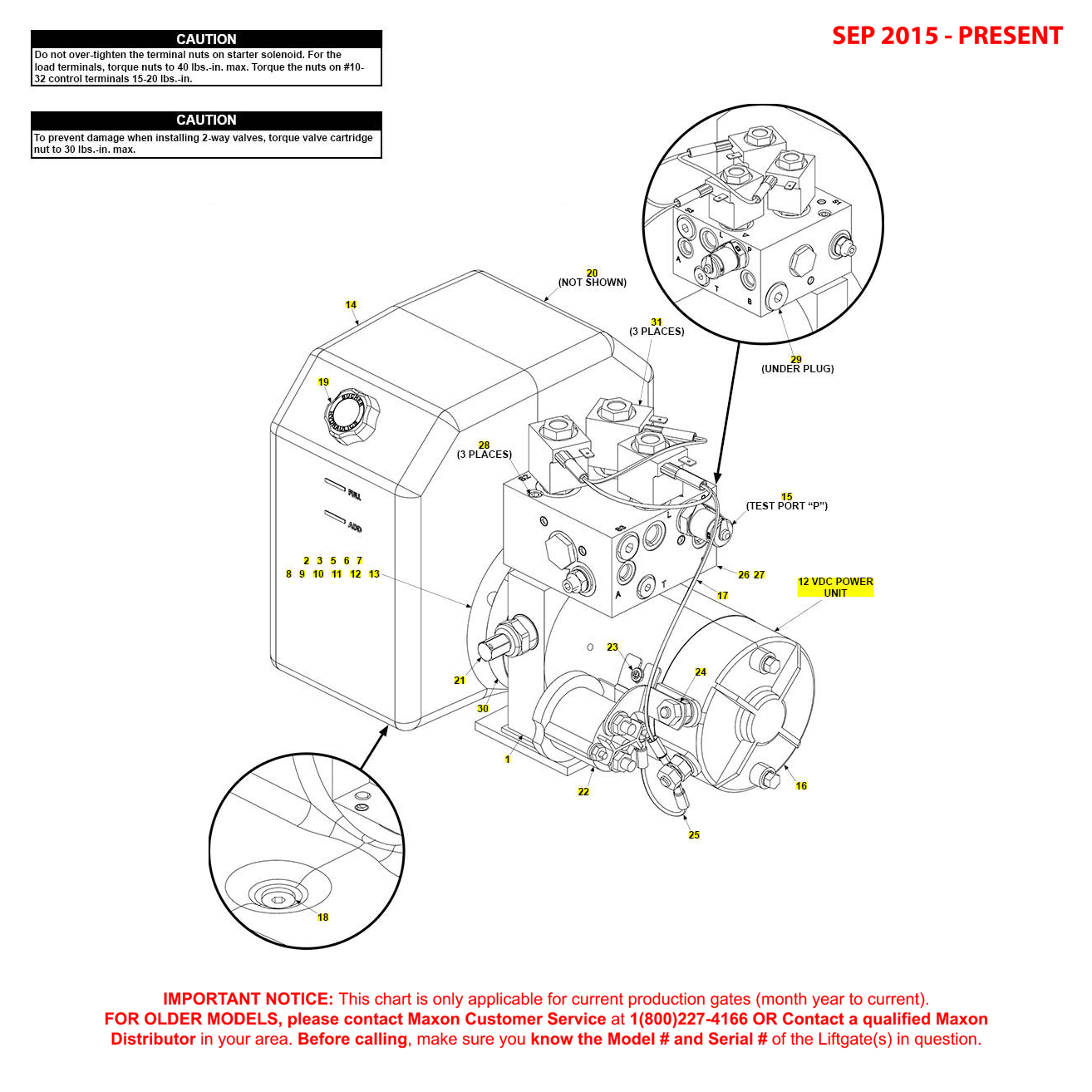

Maxon RA (Sep 2015 - Present) 12VDC Power Unit Diagram

Maxon RA (Sep 2015 – Present) 12VDC Power Unit Diagram

SKU: RA-SEP15-PRES-12VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 269321-01 - Pump Assembly 12V RSG SliderMaxon 269321-01 - Pump Assembly 12V RSG Slider269321-01-MAXO$1,872.00
2Maxon 269324 - O-Ring Shaped - UP100 and UP110Maxon 269324 - O-Ring Shaped - UP100 and UP110269324-MAXO$8.43
3Maxon 290197 - Pump AP100/3.5 EXT TANG NOCVRSMaxon 290197 - Pump AP100/3.5 EXT TANG NOCVRS290197-MAXO$349.59
5Maxon 269326 - O-Ring Shaped Rear Cover AP100Maxon 269326 - O-Ring Shaped Rear Cover AP100269326-MAXO$8.43
6Maxon 269327 - Pin Dowel 5 X 7 MM AP100Maxon 269327 - Pin Dowel 5 X 7 MM AP100269327-MAXO$3.41
7Maxon 269328 - Cover Rear AP100 309 .375 NPTMaxon 269328 - Cover Rear AP100 309 .375 NPT269328-MAXO$64.73
8Maxon 269329 - Screw SHC M8 X 80 Grade 8.8 ZincMaxon 269329 - Screw SHC M8 X 80 Grade 8.8 Zinc269329-MAXO$3.66
10Maxon 269331 - Filter Screen M-Series SUCTMaxon 269331 - Filter Screen M-Series SUCT269331-MAXO$7.82
13Maxon 269350 - Tube Suction STR 3/8 NPT NylonMaxon 269350 - Tube Suction STR 3/8 NPT Nylon269350-MAXO$7.62
14Maxon 288205 - RE Plastic 9.4 X 9.6 X 7.1 3/4 Inch NPTMaxon 288205 - RE Plastic 9.4 X 9.6 X 7.1 3/4 Inch NPT288205-MAXO$310.95
16Maxon 269334 - Motor DC 12V 4.5 Inch 2 TERMMaxon 269334 - Motor DC 12V 4.5 Inch 2 TERM269334-MAXO$920.31
18Maxon 288206 - Plug SAE O-Ring 3/4-16 Hex SocketMaxon 288206 - Plug SAE O-Ring 3/4-16 Hex Socket288206-MAXO$10.32
19Maxon 210050 - Plug Reservoir Breather-FillerMaxon 210050 - Plug Reservoir Breather-Filler210050-MAXO$50.97
20Maxon 269337 - Plug 3/4-14 PTFM Flush SteelMaxon 269337 - Plug 3/4-14 PTFM Flush Steel269337-MAXO$20.39
21Maxon 269338 - Valve MAX VM01 HDM10 T.95-210Maxon 269338 - Valve MAX VM01 HDM10 T.95-210269338-MAXO$128.39
22Maxon 269339 - Switch SOL ACT MTR ST 12 VDCMaxon 269339 - Switch SOL ACT MTR ST 12 VDC269339-MAXO$114.96
23Maxon 269340 - Screw Pan HD TORX 10-32 X 5/16 InchMaxon 269340 - Screw Pan HD TORX 10-32 X 5/16 Inch269340-MAXO$1.52
26Maxon 269343 - O-Ring 0.63 X 0.75 X 0.06-016 InchMaxon 269343 - O-Ring 0.63 X 0.75 X 0.06-016 Inch269343-MAXO$2.24
27Maxon 269344 - Valve Assembly 12VDC 3W/3W CartMaxon 269344 - Valve Assembly 12VDC 3W/3W Cart269344-MAXO$1,023.32
29Maxon 269346 - Poppet Assembly PRSS CMP FL CNTRLMaxon 269346 - Poppet Assembly PRSS CMP FL CNTRL269346-MAXO$90.11
31Maxon 290126 - Cartridge Only 3W/2P GPS-LRMaxon 290126 - Cartridge Only 3W/2P GPS-LR290126-MAXO$390.33

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
