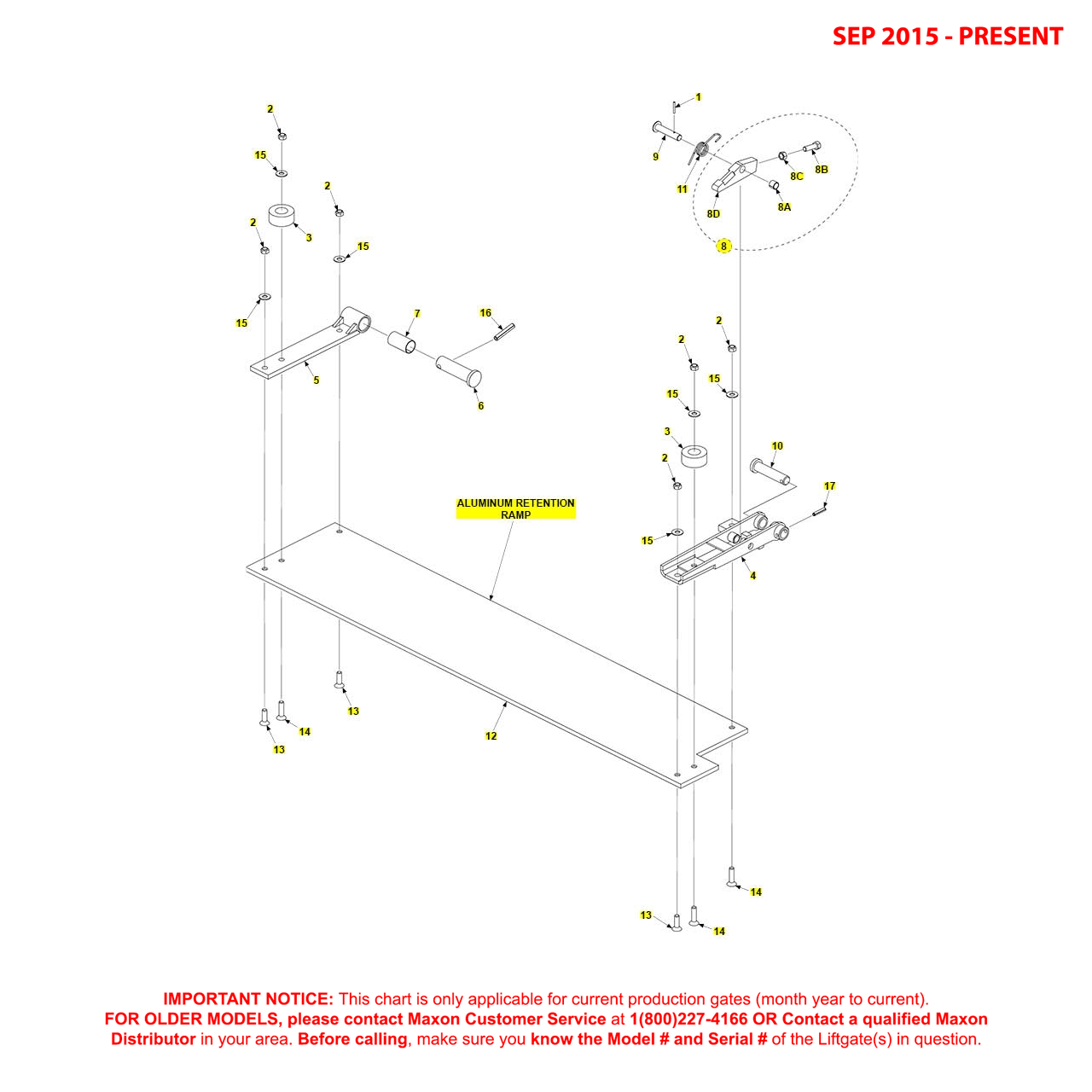

Maxon RA (Sep 2015 - Present) Aluminum Retention Ramp Diagram

Maxon RA (Sep 2015 – Present) Aluminum Retention Ramp Diagram

SKU: RA-SEP15-PRES-ARR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
3Maxon 905363-01 - Rubber Bumper 2.0 X .88 InchMaxon 905363-01 - Rubber Bumper 2.0 X .88 Inch905363-01-MAXO$5.15
4Maxon 280526-02 - DMD Hinge Weldment RHMaxon 280526-02 - DMD Hinge Weldment RH280526-02-MAXO$186.80
6Maxon 253528 - PinMaxon 253528 - Pin253528-MAXO$42.69
7Maxon 253541 - Bearing Self Lube 1X2Maxon 253541 - Bearing Self Lube 1X2253541-MAXO$22.46
8Maxon 253542 - Bearing Self Lube 1/2 X 1/2 InchMaxon 253542 - Bearing Self Lube 1/2 X 1/2 Inch253542-MAXO$13.04
8Maxon 269553-01 - Locking Arm AssemblyMaxon 269553-01 - Locking Arm Assembly269553-01-MAXO$58.11
8Maxon 900033-2 - Screw Cap .5-20 X 1.25 GR8 ZCMaxon 900033-2 - Screw Cap .5-20 X 1.25 GR8 ZC900033-2-MAXO$1.04
8Maxon 901011-10 - Nut Hex Head .500-20 UNF-2BMaxon 901011-10 - Nut Hex Head .500-20 UNF-2B901011-10-MAXO$0.44
9Maxon 264577 - Pin Weldment 0.50Maxon 264577 - Pin Weldment 0.50264577-MAXO$12.05
10Maxon 264586 - Pin Weldment 0.750Maxon 264586 - Pin Weldment 0.750264586-MAXO$14.70
11Maxon 264638 - Torsion Spring LHMaxon 264638 - Torsion Spring LH264638-MAXO$23.31
13Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZCMaxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC900040-5-MAXO$1.47
14Maxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZCMaxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZC900040-6-MAXO$1.50
15Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
16Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
17Maxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINCMaxon 905033-2 - Roll Pin - 1/4 X 1-1/4 Inch ZINC905033-2-MAXO$0.33

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
