| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 2 |  | Maxon 266428-04 - Grommet 1.0 Diaph .38 Hole | 266428-04-MAXO | $2.91 | ||
| 3 | | Maxon 266428-07 - Grommet 1.0 DIAPH .63 Hole | 266428-07-MAXO | $2.88 | ||
| 4 | | Maxon 266428-12 - Grom 1 DIA PH .374/.31 Holes | 266428-12-MAXO | $2.75 | ||
| 5 | | Maxon 902002-1 - Washer Flat 5/16 X 1/16 Inch ZC | 902002-1-MAXO | $0.11 | ||
| 6 | | Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC | 902011-3-MAXO | $0.11 | ||
| 9 | | Maxon 903444-01 - Washer Flat #10 SS | 903444-01-MAXO | $0.50 | ||
| 11 | | Maxon 901003 - Nut Nylon 10-24 2B ZC | 901003-MAXO | $0.11 | ||
| 12 | | Maxon 263814 - Grommet 1.0 ID Diaphragm | 263814-MAXO | $1.94 | ||
| 13 | | Maxon 250479-01 - Bracket Battery X 30.14 Inch | 250479-01-MAXO | $39.60 | ||
| 14 | | Maxon 227722 - Rod L-Shape 1/4 X 11.5 Inch BAT HLDN | 227722-MAXO | $14.84 | ||
| 15 | | Maxon 903412-01 - Flat Washer .25 SS | 903412-01-MAXO | $0.20 | ||
| 16 | | Maxon 902011-2 - Lock Washer .25 X .062 Inch THK | 902011-2-MAXO | $0.08 | ||
| 17 | | Maxon 903107-03 - Nut Hex .25-20 UNC SS | 903107-03-MAXO | $0.20 | ||
| 21 | | Maxon 269321-01 - Pump Assembly 12V RSG Slider | 269321-01-MAXO | $1,872.00 | ||
| 22 | | Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC | 902001-2-MAXO | $0.18 | ||
| 23 | | Maxon 902011-4 - Washer Lock 3/8 X .094 ZC | 902011-4-MAXO | $0.15 | ||
| 24 | | Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC | 900014-5-MAXO | $0.72 | ||
| 25 | | Maxon 284343-02 - Pump Cover Assembly | 284343-02-MAXO | $127.80 | ||
| 26 | | Maxon 215139 - Catch and Fastener 5-1/8 Inch Zinc | 215139-MAXO | $18.81 | ||
| 26 | | Maxon 284343-03 - 4 BAT Cover Assembly | 284343-03-MAXO | $200.99 |
RA (Sep 2015 - Present) Diagrams

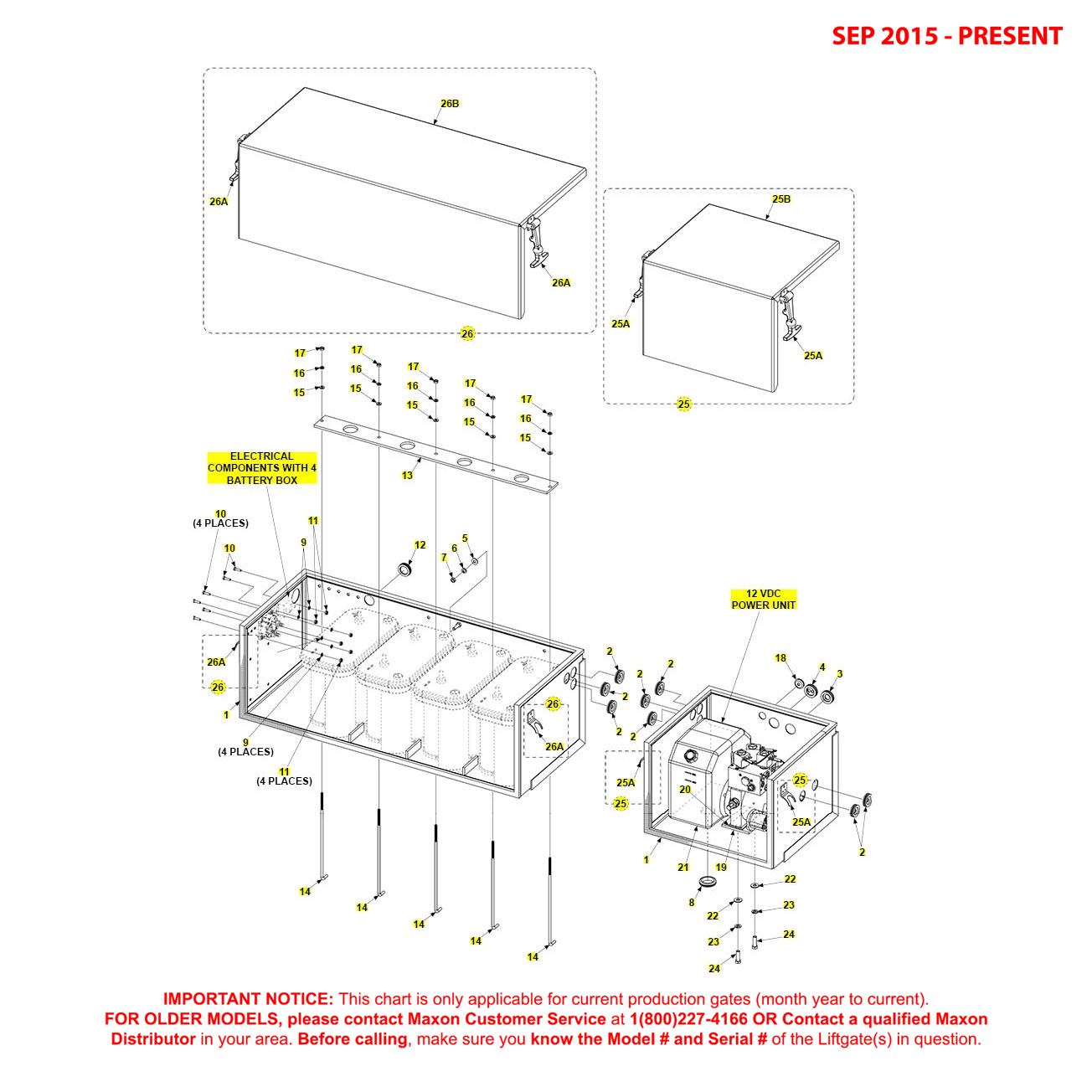

Maxon RA (Sep 2015 – Present) Battery And Pump Box Assembly For 82-Inch Mainframe With 4 Battery Box Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
