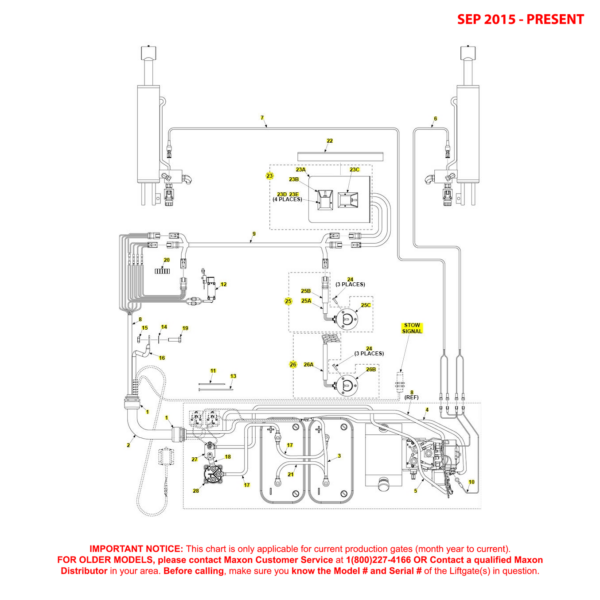

Maxon RA (Sep 2015 - Present) Electrical Components For 2 Battery Box Diagram

Maxon RA (Sep 2015 – Present) Electrical Components For 2 Battery Box Diagram

SKU: RA-SEP15-PRES-ELEC-2BB-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 906559-01 - Fitting Straight ConnectorMaxon 906559-01 - Fitting Straight Connector906559-01-MAXO$38.79
2Maxon 907297-01 - Spiral Bundling Wrap 76 Inch LGMaxon 907297-01 - Spiral Bundling Wrap 76 Inch LG907297-01-MAXO$57.45
3Maxon 268226-07 - Cable Assembly 2GA .31 / .38 RING 18 InchMaxon 268226-07 - Cable Assembly 2GA .31 / .38 RING 18 Inch268226-07-MAXO$29.16
6Maxon 268274-03 - Cable Right Side 72 IN LGMaxon 268274-03 - Cable Right Side 72 IN LG268274-03-MAXO$39.03
7Maxon 268274-04 - Cable Left Side 96 IN LGMaxon 268274-04 - Cable Left Side 96 IN LG268274-04-MAXO$52.86
8Maxon 289396-01 - Cable EXT Control AssemblyMaxon 289396-01 - Cable EXT Control Assembly289396-01-MAXO$365.63
9Maxon 289397-01 - Cable EXT Control Assembly 48 InchMaxon 289397-01 - Cable EXT Control Assembly 48 Inch289397-01-MAXO$284.69
9Maxon 289397-02 - Cable EXT Control Assembly 60 InchMaxon 289397-02 - Cable EXT Control Assembly 60 Inch289397-02-MAXO$292.73
11Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
12Maxon 286133-01 - Limit Switch Assembly Normally ClosedMaxon 286133-01 - Limit Switch Assembly Normally Closed286133-01-MAXO$244.05
14Maxon 903409-03 - Washer - FEND .41 X .88 Inch OD SSMaxon 903409-03 - Washer - FEND .41 X .88 Inch OD SS903409-03-MAXO$0.14
15Maxon 903107-02 - Nut Hex .375-16 UNC SSMaxon 903107-02 - Nut Hex .375-16 UNC SS903107-02-MAXO$0.39
17Maxon 288211-01 - Cable Assembly 2GA R .38/.38 Ring 10.5 InchMaxon 288211-01 - Cable Assembly 2GA R .38/.38 Ring 10.5 Inch288211-01-MAXO$18.86
19Maxon 900764-07 - Screw Hex Cap .38-16 X 1.25 Inch SSMaxon 900764-07 - Screw Hex Cap .38-16 X 1.25 Inch SS900764-07-MAXO$0.60
21Maxon 288210-01 - Cable Assembly 2GA .38/.38 Ring 10.5 InchMaxon 288210-01 - Cable Assembly 2GA .38/.38 Ring 10.5 Inch288210-01-MAXO$17.57
23Maxon 285511-01 - Assembly Bracket SwitchMaxon 285511-01 - Assembly Bracket Switch285511-01-MAXO$391.31
23Maxon 285512-01 - SW and CBL Assembly Molded 6POSNMaxon 285512-01 - SW and CBL Assembly Molded 6POSN285512-01-MAXO$130.41
23Maxon 285512-02 - Switch and Cable Assembly MOL 6POSN In-OutMaxon 285512-02 - Switch and Cable Assembly MOL 6POSN In-Out285512-02-MAXO$152.79
23Maxon 900007-6 - Screw PH Pan HD ZC 10-24 X .75 InchMaxon 900007-6 - Screw PH Pan HD ZC 10-24 X .75 Inch900007-6-MAXO$0.14
23Maxon 901003 - Nut Nylon 10-24 2B ZCMaxon 901003 - Nut Nylon 10-24 2B ZC901003-MAXO$0.11
25Maxon 285508-01 - Cable Assembly SwitchMaxon 285508-01 - Cable Assembly Switch285508-01-MAXO$211.05
26Maxon 285508-02 - Cable Assembly SwitchMaxon 285508-02 - Cable Assembly Switch285508-02-MAXO$189.23
26Maxon 285509-01 - Assembly Switch Up-DownMaxon 285509-01 - Assembly Switch Up-Down285509-01-MAXO$104.79
27Maxon 221736 - Circuit Breaker 150A MAN RESETMaxon 221736 - Circuit Breaker 150A MAN RESET221736-MAXO$94.17
28Maxon 228754 - Master SW O-Ring Sealed ShaftMaxon 228754 - Master SW O-Ring Sealed Shaft228754-MAXO$119.85

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
