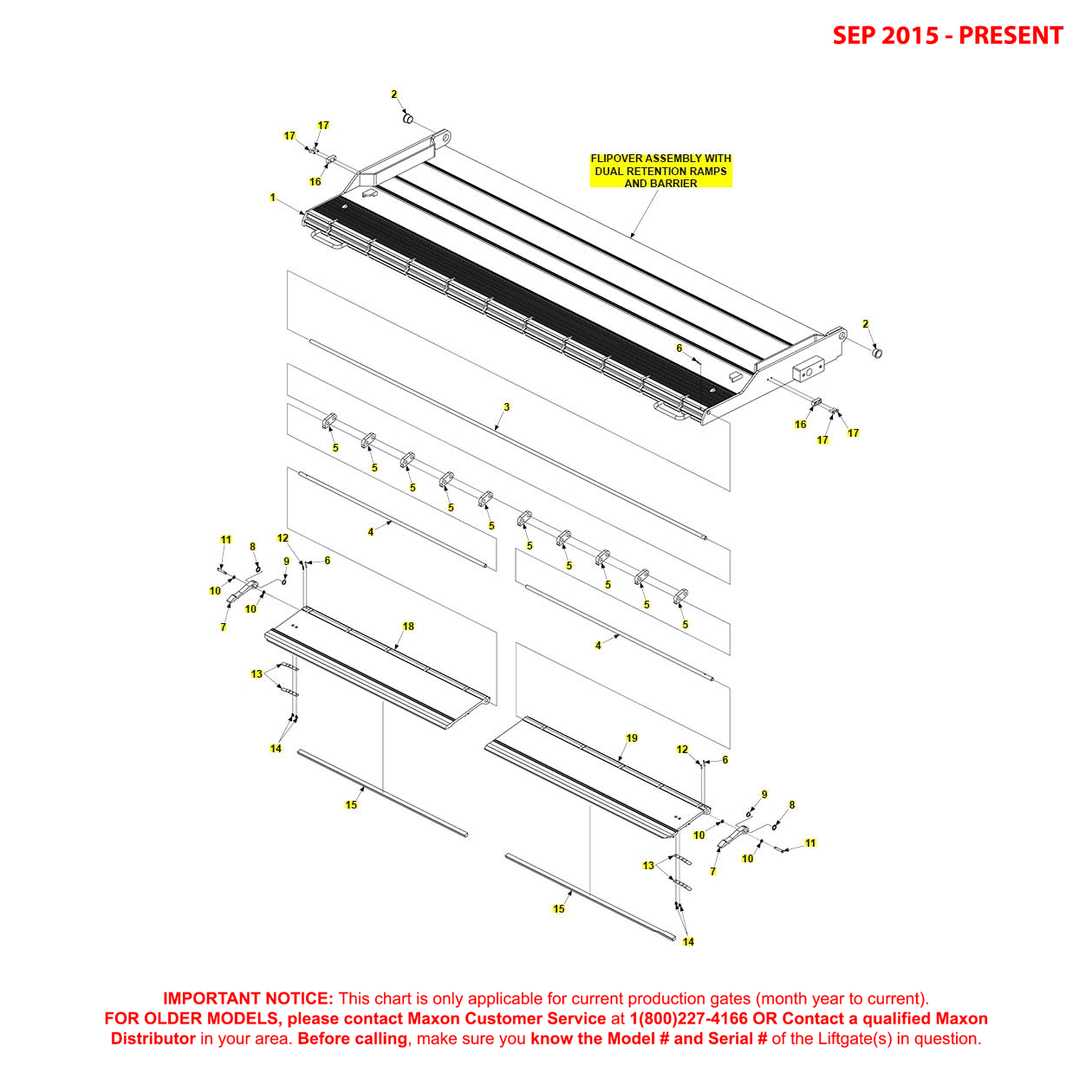

Maxon RA (Sep 2015 - Present) Flipover Assembly With Dual Retention Ramps And Barrier Diagram

Maxon RA (Sep 2015 – Present) Flipover Assembly With Dual Retention Ramps And Barrier Diagram

SKU: RA-SEP15-PRES-FOA-DRRB-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 InchMaxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 Inch261837-02-MAXO$15.95
3Maxon 267045-10 - Rod Hinge .50 DIA X 82.25 Inch LGMaxon 267045-10 - Rod Hinge .50 DIA X 82.25 Inch LG267045-10-MAXO$69.77
4Maxon 267045-28 - Rod Hinge .50 DIA X 38.75 Inch LGMaxon 267045-28 - Rod Hinge .50 DIA X 38.75 Inch LG267045-28-MAXO$46.52
5Maxon 311022-10 - Hinge F/O Ramp .50LGMaxon 311022-10 - Hinge F/O Ramp .50LG311022-10-MAXO$2.72
6Maxon 905007-07 - Pin Roll .156 X 1.00 Inch ZincMaxon 905007-07 - Pin Roll .156 X 1.00 Inch Zinc905007-07-MAXO$0.24
7Maxon 311038-11 - Hook Retention RampMaxon 311038-11 - Hook Retention Ramp311038-11-MAXO$15.53
8Maxon 903420-01 - Ring Retain SLF/LCK .50 SSMaxon 903420-01 - Ring Retain SLF/LCK .50 SS903420-01-MAXO$1.58
9Maxon 903413-02 - Washer 6/6 Nylon .5 ID X .062 Inch THMaxon 903413-02 - Washer 6/6 Nylon .5 ID X .062 Inch TH903413-02-MAXO$0.18
10Maxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch THMaxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch TH903421-02-MAXO$0.18
11Maxon 283951-01 - Clevis Pin 1/4 X 1-5/8 InchMaxon 283951-01 - Clevis Pin 1/4 X 1-5/8 Inch283951-01-MAXO$6.90
12Maxon 905007-03 - Roll Pin DIM .156 X .63 Inch ZincMaxon 905007-03 - Roll Pin DIM .156 X .63 Inch Zinc905007-03-MAXO$0.17
13Maxon 267326-01 - Spring Hook Retention RampMaxon 267326-01 - Spring Hook Retention Ramp267326-01-MAXO$13.83
14Maxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 InchMaxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 Inch904005-1-MAXO$0.48
15Maxon 905318-23 - Bumper Extrusion .56 X .41 X 34.81 InchMaxon 905318-23 - Bumper Extrusion .56 X .41 X 34.81 Inch905318-23-MAXO$47.03
16Maxon 287473-01 - Stop LatchMaxon 287473-01 - Stop Latch287473-01-MAXO$10.95
17Maxon 900711-04 - Screw SOC FL .25-20 X .88 Inch SSMaxon 900711-04 - Screw SOC FL .25-20 X .88 Inch SS900711-04-MAXO$0.32
18Maxon 267041-31 - Ramp Dual LH F/O 38.06 Inch LGMaxon 267041-31 - Ramp Dual LH F/O 38.06 Inch LG267041-31-MAXO$337.46
19Maxon 267041-32 - Ramp Dual RH F/O 38.06 Inch LGMaxon 267041-32 - Ramp Dual RH F/O 38.06 Inch LG267041-32-MAXO$337.46

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
