Maxon RC (Oct 2012 - Present) CAM Follower Assembly Diagram
,

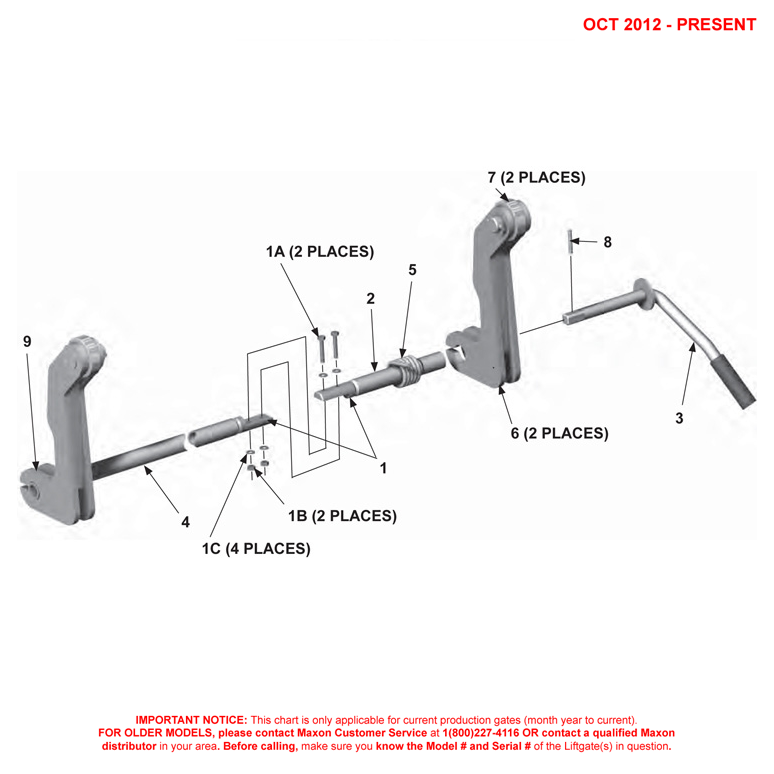

Maxon RC (Oct 2012 – Present) CAM Follower Assembly Diagram

SKU: RC-OCT12-PRES-CAMFA-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
0Maxon 262418 - Cam Follower Assembly For 90 Inch WMaxon 262418 - Cam Follower Assembly For 90 Inch W262418-MAXO$721.82
0Maxon 262419-01 - Cam Follower Assembly For 96 Inch W ABMaxon 262419-01 - Cam Follower Assembly For 96 Inch W AB262419-01-MAXO$713.49
0Maxon 262419 - Cam Follower Assembly For 96 Inch WMaxon 262419 - Cam Follower Assembly For 96 Inch W262419-MAXO$733.70
0Maxon 262420-01 - Cam Follower Assembly For 102 Inch W ABMaxon 262420-01 - Cam Follower Assembly For 102 Inch W AB262420-01-MAXO$713.49
0Maxon 262420 - Cam Follower Assembly For 102 Inch WMaxon 262420 - Cam Follower Assembly For 102 Inch W262420-MAXO$733.47
1Maxon 262268 - Coupling AssemblyMaxon 262268 - Coupling Assembly262268-MAXO$101.90
1Maxon 900004-6 - Screw Cap 1/4-20 X 1-1/2 Inch GR8 ZCMaxon 900004-6 - Screw Cap 1/4-20 X 1-1/2 Inch GR8 ZC900004-6-MAXO$0.36
1Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564902013-09-MAXO$0.11
2Maxon 262267 - Tube Anchor WeldmentMaxon 262267 - Tube Anchor Weldment262267-MAXO$77.93
3Maxon 262417 - Cam Follower Handle AssemblyMaxon 262417 - Cam Follower Handle Assembly262417-MAXO$70.13
4Maxon 262270-01 - Cam Follower Shaft 83.25 Inch LGMaxon 262270-01 - Cam Follower Shaft 83.25 Inch LG262270-01-MAXO$79.38
4Maxon 262270-02 - Cam Follower Shaft 70.50 Inch LGMaxon 262270-02 - Cam Follower Shaft 70.50 Inch LG262270-02-MAXO$105.42
4Maxon 262270 - Cam Follower Shaft - USE 262270-04Maxon 262270 - Cam Follower Shaft - USE 262270-04262270-MAXO$77.63
5Maxon 217643 - Spring Torsion .25 X 1.94 Inch LG LHWMaxon 217643 - Spring Torsion .25 X 1.94 Inch LG LHW217643-MAXO$39.35
6Maxon 251231 - Cam Weldment RHMaxon 251231 - Cam Weldment RH251231-MAXO$99.95
7Maxon 250844 - Roller AssemblyMaxon 250844 - Roller Assembly250844-MAXO$45.35
9Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
