| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 0 |  | Maxon 202698-01 - Chain X 60 Inch (1/4) | 202698-01-MAXO | $70.35 | ||
| 0 | | Maxon 202698-02 - Chain X 64 Inch | 202698-02-MAXO | $74.64 | ||
| 0 | | Maxon 202698-04 - Chain X 72 Inch (1/4) | 202698-04-MAXO | $94.62 | ||
| 0 | | Maxon 202698-05 - Chain X 77 Inch (1/4) | 202698-05-MAXO | $100.35 | ||
| 0 | | Maxon 202698-06 - Chain X 82 Inch (1/4) | 202698-06-MAXO | $93.74 | ||
| 0 | | Maxon 202698-10 - Chain X 86 Inch (1/4) | 202698-10-MAXO | $107.82 | ||
| 0 | | Maxon 202698-11 - Chain X 84 Inch (1/4) | 202698-11-MAXO | $113.36 | ||
| 0 | | Maxon 202698-12 - Chain X 88 Inch | 202698-12-MAXO | $87.44 | ||
| 0 | | Maxon 202698-13 - Chain X 92 Inch (1/4) | 202698-13-MAXO | $103.92 | ||
| 0 | | Maxon 202698-14 - Chain X 97 Inch (1/4) | 202698-14-MAXO | $98.19 | ||
| 0 | | Maxon 202698-15 - Chain X 102 Inch (1/4) | 202698-15-MAXO | $103.11 | ||
| 0 | | Maxon 202698-16 - Chain X 112 Inch (1/4) | 202698-16-MAXO | $112.94 | ||
| 0 | | Maxon 202698-18 - Chain X 108 Inch (1/4) | 202698-18-MAXO | $130.95 | ||
| 0 | | Maxon 202698-19 - Chain X 118 Inch (1/4) | 202698-19-MAXO | $140.78 | ||
| 1 | | Maxon 227426 - Bumper - 3/4 x 1-5/8 x 5 Inch End Slots | 227426-MAXO | $27.14 | ||
| 2 | | Maxon 250784 - Chain Retention - 1 Piece - P/F | 250784-MAXO | $32.69 | ||
| 2 | | Maxon 252452 - Retention Chain Weldment - RC-2PC | 252452-MAXO | $30.77 | ||
| 5 | | Maxon 202840 - Cover Chain 1 X 1.5 X 9 2HOLE RUB | 202840-MAXO | $24.36 | ||
| 6 | | Maxon 203853 - Nylon Lock Nut 3/8-24 ZC | 203853-MAXO | $0.30 | ||
| 7 | | Maxon 202671 - Runner Link - 3-3/8 Inch | 202671-MAXO | $2.63 | ||
| 8 | | Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches | 904717-06-MAXO | $0.60 | ||
| 9 | | Maxon 251859 - Pin FS - 4-7/8 Inch | 251859-MAXO | $14.81 | ||
| 10 | | Maxon 222210-01 - Chain Anchor RC | 222210-01-MAXO | $67.98 | ||
| 11 | | Maxon 222210-02 - Chain Anchor RC | 222210-02-MAXO | $67.62 | ||
| 12 | | Maxon 280594-01 - Nylon Roller | 280594-01-MAXO | $44.01 | ||
| 13 | | Maxon 901016-1 - Nut Hex THN HD LKG .500-20UNF | 901016-1-MAXO | $0.99 | ||
| 14 | | Maxon 280596-01 - Bushing | 280596-01-MAXO | $3.98 | ||
| 15 | | Maxon 202466 - Bolt 1/2-20 X 3-5/8 Inch GR8 ZC | 202466-MAXO | $17.33 | ||
| 16 | | Maxon 225279 - Screw 1/4-14 x 1-1/2 TEK ZC | 225279-MAXO | $0.57 | ||
| 17 | | Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole | 225278-02-MAXO | $24.86 | ||
| 18 | | Maxon 253343 - Pin P/F Hinge RC's | 253343-MAXO | $57.68 | ||
| 19 | | Maxon 221905 - Cam Follower Pin - 7-3/4 Inch | 221905-MAXO | $20.93 | ||
| 20 | | Maxon 221931 - Hinge Pin - 1-1/2 X 4-7/8 Inch | 221931-MAXO | $81.68 | ||
| 21 | | Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564 | 902013-09-MAXO | $0.11 | ||
| 22 | | Maxon 202527 - Torsion Spring - RC | 202527-MAXO | $41.03 | ||
| 24 | | Maxon 207644 - Rivet BLND 0.19 X.58 Dome | 207644-MAXO | $0.32 |
RC Diagrams, RC-CS Diagrams

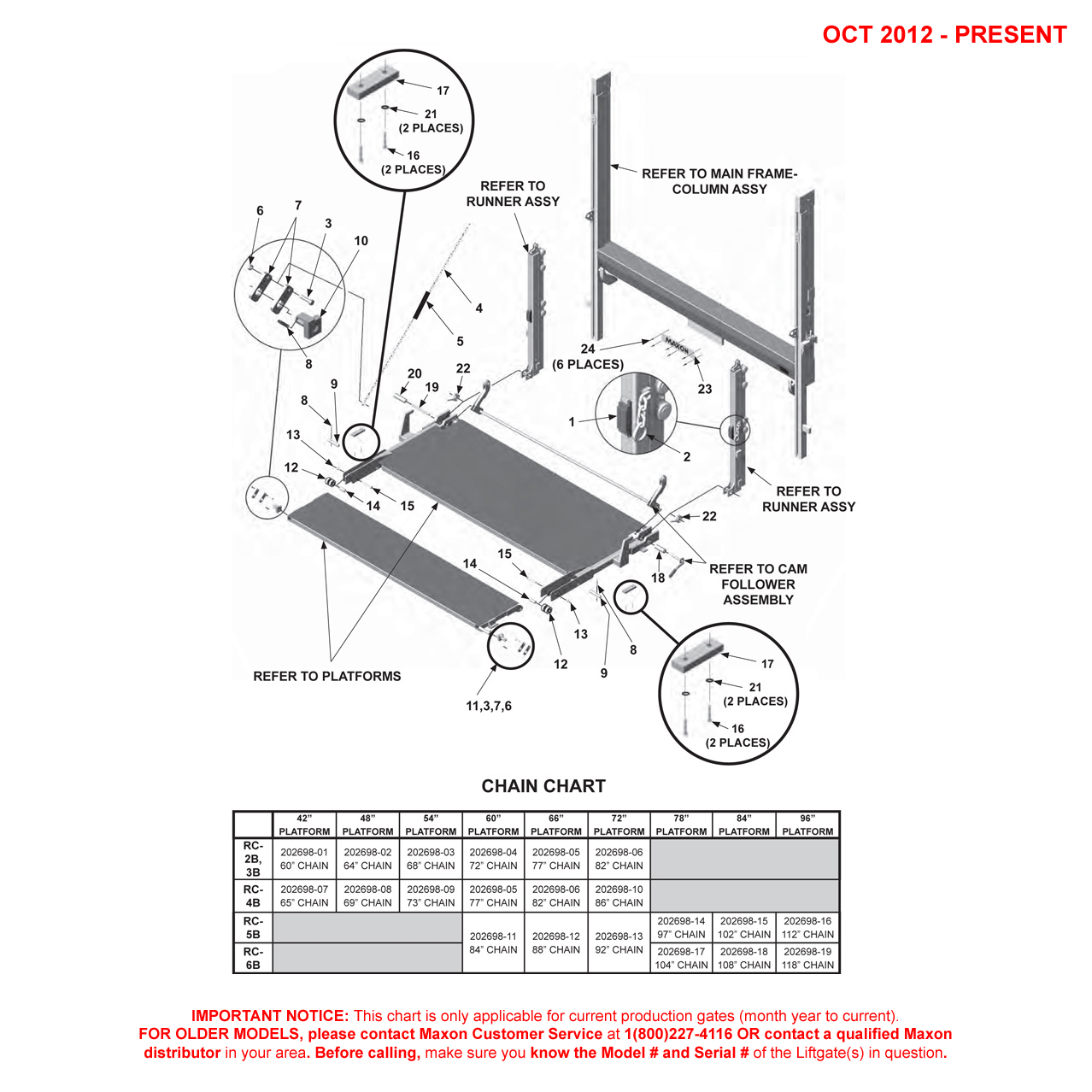

Maxon RC (Oct 2012 – Present) Main Assembly Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
