| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 7 |  | Maxon 202777 - Cover R/H Upper Sheave | 202777-MAXO | $19.79 | ||
| 7 | | Maxon 202928 - Pulley Cover RC4 9-5/16 X 7-1/4 Inch | 202928-MAXO | $21.08 | ||
| 7 | | Maxon 203213 - Pulley Cover RC5/6 | 203213-MAXO | $23.00 | ||
| 8 | | Maxon 250635 - Internal Stop Plate Weldment | 250635-MAXO | $15.69 | ||
| 9 | | Maxon 250634 - INTL Stop PL X 3-1/2 | 250634-MAXO | $4.40 | ||
| 10 | | Maxon 226889 - Toggle Switch SP 3 POSN | 226889-MAXO | $42.74 | ||
| 10 | | Maxon 250876 - Boot Rubber Seal Switch | 250876-MAXO | $14.16 | ||
| 10 | | Maxon 250916 - ELEC.SW/Harness Assembly 240 Inch LG CAM | 250916-MAXO | $249.36 | ||
| 11 | | Maxon 250800 - Pin Weldment Safety Latch R/H | 250800-MAXO | $27.90 | ||
| 12 | | Maxon 250800-01 - Pin Weldment Safety Latch L/H | 250800-01-MAXO | $33.71 | ||
| 13 | | Maxon 226088 - Cover M/F 11-1/8 X 87-7/8 Inch | 226088-MAXO | $130.86 | ||
| 13 | | Maxon 226089 - Cover M/F 11-1/8 X 93-7/8 Inch | 226089-MAXO | $132.68 | ||
| 13 | | Maxon 226202 - Cover M/F 87-7/8 Inch X 7-1/2 Inch | 226202-MAXO | $98.66 | ||
| 13 | | Maxon 226203 - Cover M/F 93-7/8 X 7-1/2 Inch | 226203-MAXO | $99.60 | ||
| 15 | | Maxon 203853 - Nylon Lock Nut 3/8-24 ZC | 203853-MAXO | $0.30 | ||
| 16 | | Maxon 227195 - Lug Link 3-7/16 X 5-15/16 Inch | 227195-MAXO | $17.76 | ||
| 18 | | Maxon 902011-8 - Washer Lock .625 .156 Inch THK | 902011-8-MAXO | $0.30 | ||
| 19 | | Maxon 202562 - Cylinder Anchor Plate X 7 Inch | 202562-MAXO | $20.60 | ||
| 19 | | Maxon 202926 - Anchor Plate Weldment Cylinder Rod End | 202926-MAXO | $146.85 | ||
| 19 | | Maxon 203210 - Cylinder Anchor Plate Weldment RC5/6 | 203210-MAXO | $206.39 | ||
| 20 | | Maxon 252425 - Anchor PL Cylinder RD Weldment | 252425-MAXO | $40.61 | ||
| 21 | | Maxon 253460 - Washer 3 X 17/32 X .033 ZC | 253460-MAXO | $3.99 | ||
| 22 | | Maxon 253330 - Bolt SPL 1/2-20 X 2-3/4 Inch GR8 ZC | 253330-MAXO | $31.37 | ||
| 23 | | Maxon 253331 - Bolt SPL 1/2-20 X 3-5/8 Inch GR8 ZC | 253331-MAXO | $44.51 | ||
| 24 | | Maxon 253333 - Bolt SPL 1/2-20 X 3 Inch GR8 ZC | 253333-MAXO | $33.65 | ||
| 24 | | Maxon 253334 - Bolt SPL 1/2-20 X 4.75 Inch GR8 ZC | 253334-MAXO | $47.30 | ||
| 25 | | Maxon 253338 - Cylinder Assembly 3 Inch DIA X 28 Inch | 253338-MAXO | $1,341.60 | ||
| 25 | | Maxon 253339 - Cylinder Assembly 3-1/2 Inch DIA X 28 Inch (253465) | 253339-MAXO | $940.59 | ||
| 25 | | Maxon 253340 - CYL Assembly 4 Inch DIA X 28 Inch | 253340-MAXO | $1,513.20 | ||
| 25 | | Maxon 253466 - Seal Kit 4 X 28 Inch HCE-TX | 253466-MAXO | $201.32 | ||
| 26 | | Maxon 900004-3 - Screw Cap 1/4-20 X 1 Inch GR8 ZC | 900004-3-MAXO | $0.27 | ||
| 27 | | Maxon 901000 - Nylon Nut 1/4-20 Inch Zinc | 901000-MAXO | $0.15 |
RC Diagrams, RC-CS Diagrams

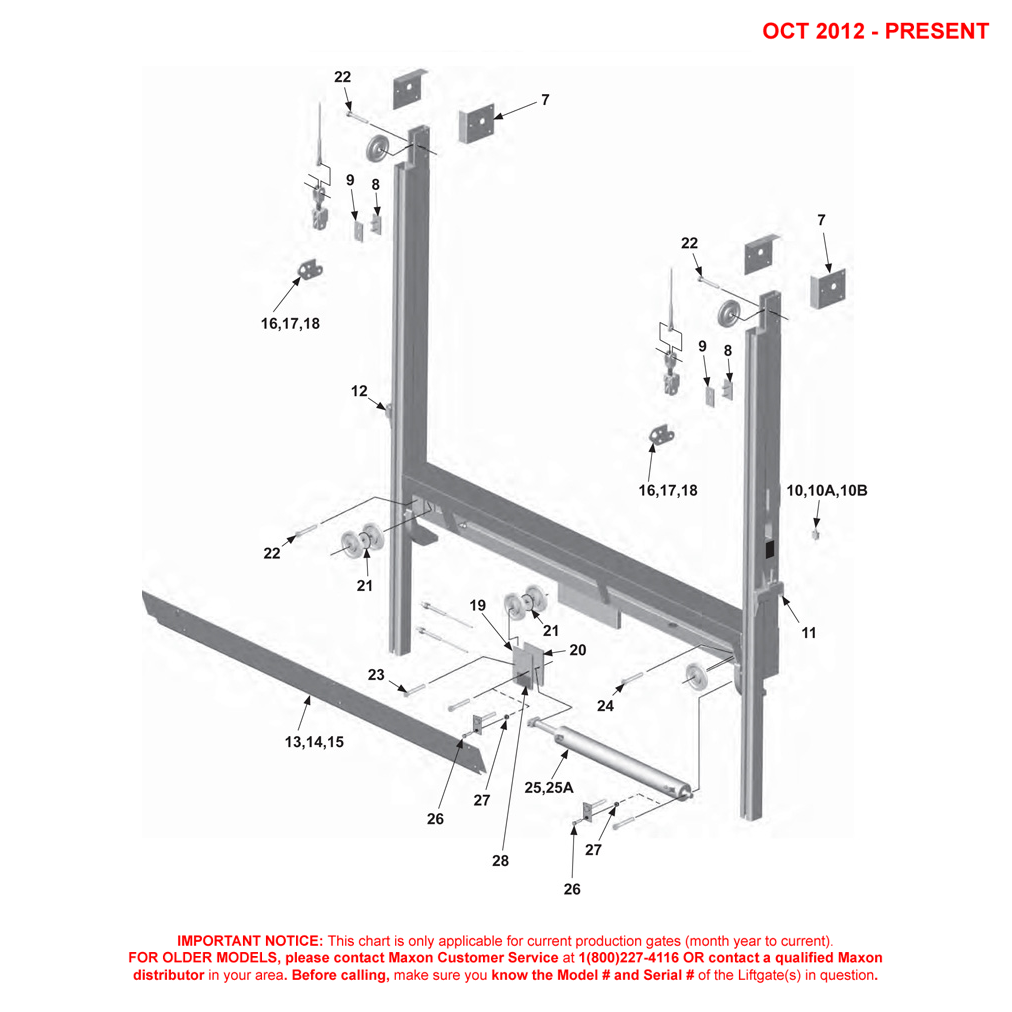

Maxon RC (Oct 2012 – Present) Main Frame Column Assembly Diagram (2 OF 2)
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
