| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 250093 - Motor EL 12V HD MMY(39200398) | 250093-MAXO | $541.37 | ||
| 2 | | Maxon 226594 - Oil Seal Kit | 226594-MAXO | $7.07 | ||
| 2 | | Maxon 253353 - 2-Way Solenoid Valve (38502407) | 253353-MAXO | $158.97 | ||
| 3 | | Maxon 229200 - Coupling MTE - 37901000 | 229200-MAXO | $30.14 | ||
| 4 | | Maxon 251885 - Check Valve Assembly | 251885-MAXO | $28.98 | ||
| 5 | | Maxon 260229 - Relief Valve Assembly (10901282) | 260229-MAXO | $54.92 | ||
| 6 | | Maxon 229193 - Filler Breather Cap (69420006) | 229193-MAXO | $28.76 | ||
| 7 | | Maxon 260263 - Reservoir 2.5 Gallon | 260263-MAXO | $268.13 | ||
| 8 | | Maxon 260250 - Filter - 37201037 | 260250-MAXO | $19.58 | ||
| 9 | | Maxon 290003 - 3 Piece Gear Pump | 290003-MAXO | $219.33 | ||
| 10 | | Maxon 251884 - O-Ring - Reservoir (60120041) | 251884-MAXO | $11.40 | ||
| 12 | | Maxon 260261 - Oil Seal - Pump | 260261-MAXO | $6.32 | ||
| 13 | | Maxon 262966 - Bus Bar PRESTOLITE Start SOL | 262966-MAXO | $19.50 | ||
| 14 | | Maxon 262939 - Start Solenoid PREST SAZ-4201FP-1 | 262939-MAXO | $48.44 | ||
| 15 | | Maxon 229202 - HX Washer HD Cap Screw | 229202-MAXO | $1.71 | ||
| 16 | | Maxon 261740 - Oil Level Label - Pump Assembly | 261740-MAXO | $3.15 |
RC Diagrams, RC-CS Diagrams

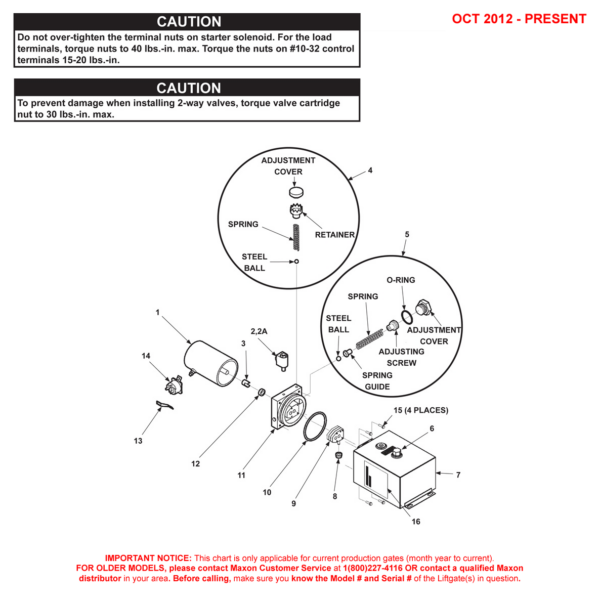

Maxon RC (Oct 2012 – Present) Pump For CAM Platform Closer Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
