| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 202800 - Roller Bearing Assembly | 202800-MAXO | $38.72 | ||
| 2 | | Maxon 202796 - Ball Race Tandem Shaft | 202796-MAXO | $20.70 | ||
| 3 | | Maxon 203002 - Tandem Support Plate X 8 Inch | 203002-MAXO | $14.75 | ||
| 4 | | Maxon 227395 - Tandem Support Plate X 5-3/4 Inch | 227395-MAXO | $10.14 | ||
| 5 | | Maxon 202771 - Washer Flat Retainer | 202771-MAXO | $0.48 | ||
| 6 | | Maxon 202797 - Bolt 1/2 X 3/4 Inch Grip 3/8-16 Alloy | 202797-MAXO | $7.22 | ||
| 7 | | Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC | 902001-2-MAXO | $0.18 | ||
| 9 | | Maxon 224342 - 1/4 Self Drill Grease Fitting | 224342-MAXO | $0.45 | ||
| 10 | | Maxon 260057 - RC Steel Roller Plastic Insert | 260057-MAXO | $2.79 |
RC Diagrams, RC-CS Diagrams

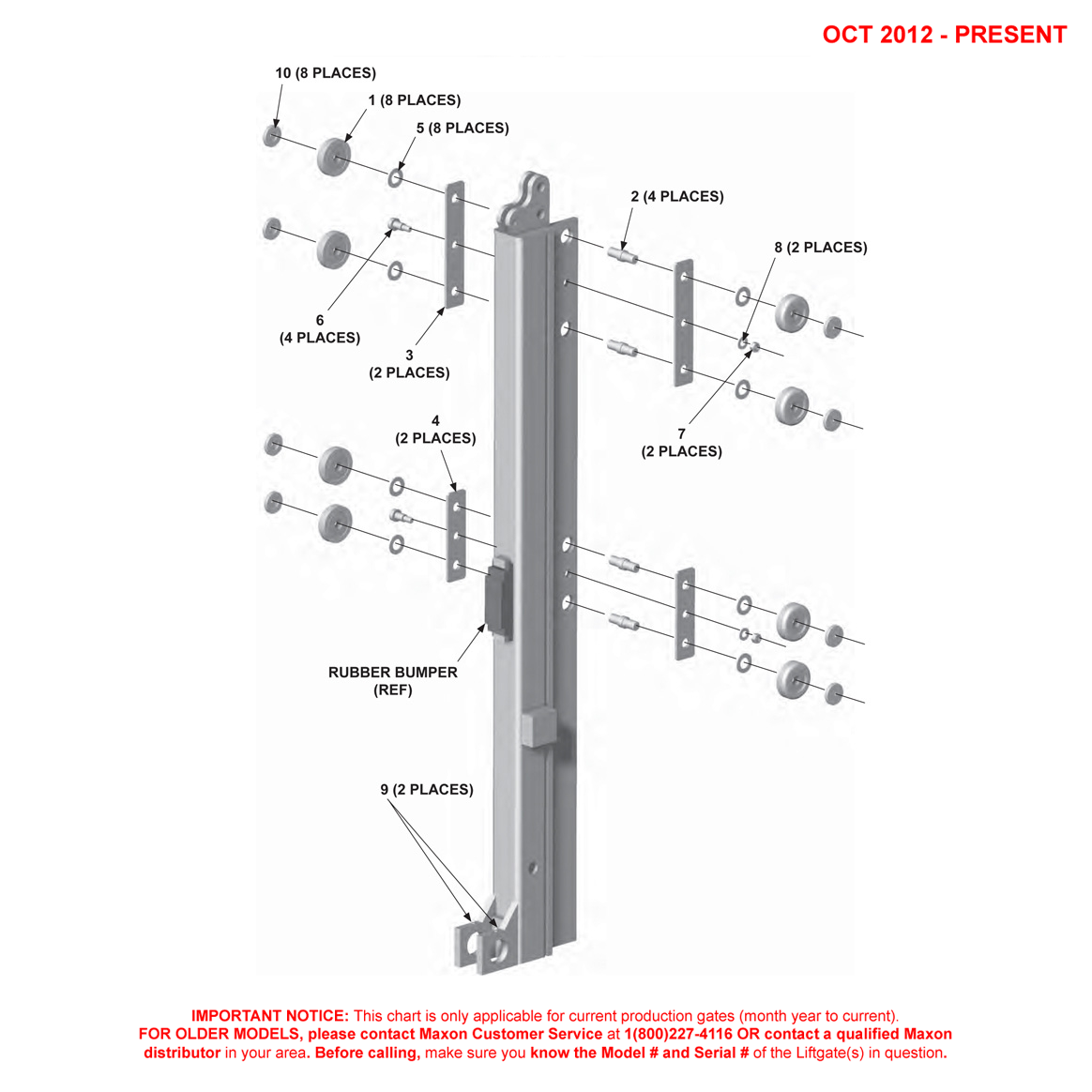

Maxon RC (Oct 2012 – Present) Runner Assembly Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
