Maxon RC (Oct 2012 - Present) Single Frame Assembly Diagram
,

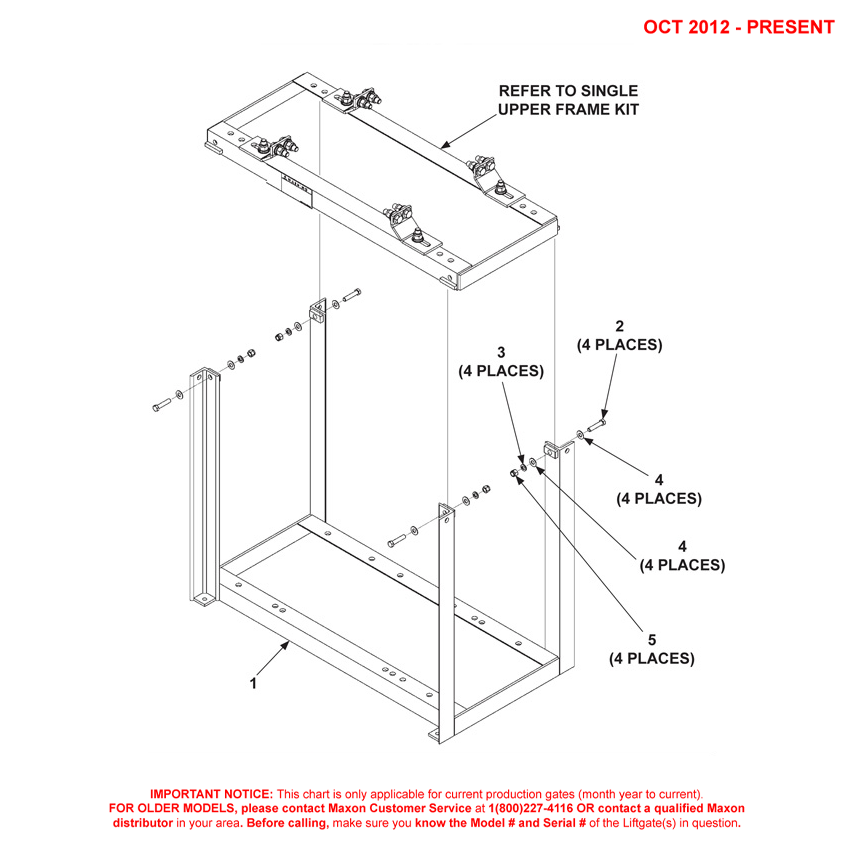

Maxon RC (Oct 2012 – Present) Single Frame Assembly Diagram

SKU: RC-OCT12-PRES-SFA-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
2Maxon 900014-7 - Screw Hex Cap 0.38-16 X 1.75 Inch - G8 - ZCMaxon 900014-7 - Screw Hex Cap 0.38-16 X 1.75 Inch - G8 - ZC900014-7-MAXO$0.90
3Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
4Maxon 903409-03 - Washer - FEND .41 X .88 Inch OD SSMaxon 903409-03 - Washer - FEND .41 X .88 Inch OD SS903409-03-MAXO$0.14
5Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
