Maxon RC (Oct 2012 - Present) Single Upper Frame Kit Diagram

RC Diagrams, RC-CS Diagrams

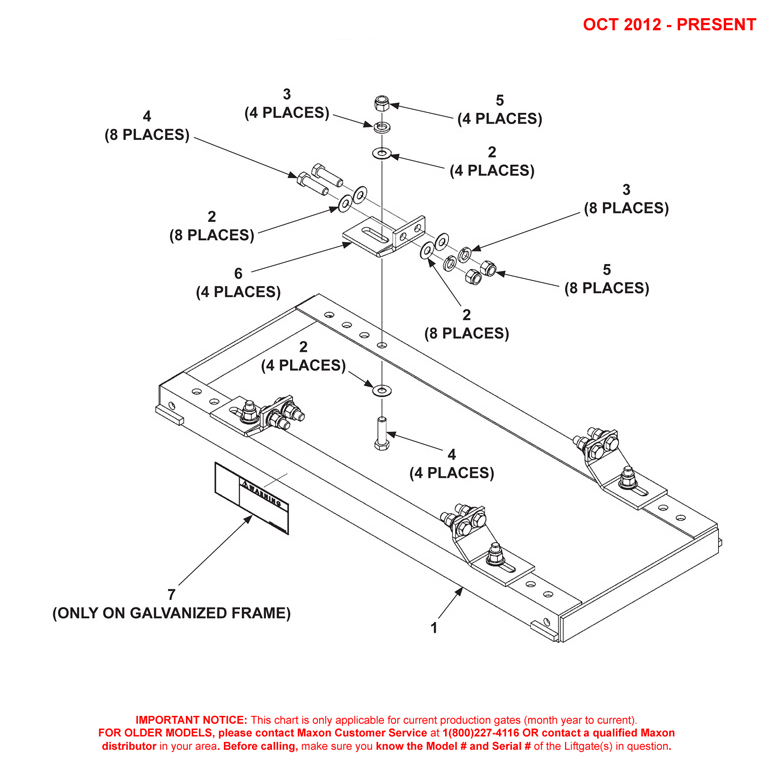

Maxon RC (Oct 2012 – Present) Single Upper Frame Kit Diagram

SKU: RC-OCT12-PRES-SUFK-DG Categories: RC Diagrams, RC-CS Diagrams

Options
Description

ID	Image	Title	SKU	Price	Quantity	Add to Cart
3		Maxon 902011-7 - Washer Lock .563 .141 THK	902011-7-MAXO	$0.26
4		Maxon 900033-4 - Screw Cap .5-20 X 1.75 Inch GR8 ZC	900033-4-MAXO	$1.52
5		Maxon 901008 - Nut Nylon 1/2-20 ZC	901008-MAXO	$1.28
6		Maxon 285837-01 - Mounting Bracket	285837-01-MAXO	$14.25

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
