| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 221736 - Circuit Breaker 150A MAN RESET | 221736-MAXO | $94.17 | ||
| 2 | | Maxon 268226-07 - Cable Assembly 2GA .31 / .38 RING 18 Inch | 268226-07-MAXO | $29.16 | ||
| 3 | | Maxon 268226-06 - Cable Assembly 2GA .31 / .38 RING 74 Inch | 268226-06-MAXO | $64.22 | ||
| 4 | | Maxon 251871-14 - Cable 2 GA Assembly 8 Inch | 251871-14-MAXO | $29.16 | ||
| 5 | | Maxon 285487-02 - Cable Assembly 2GA Red 200AMP 3.5FT | 285487-02-MAXO | $96.98 |
RCT Diagrams

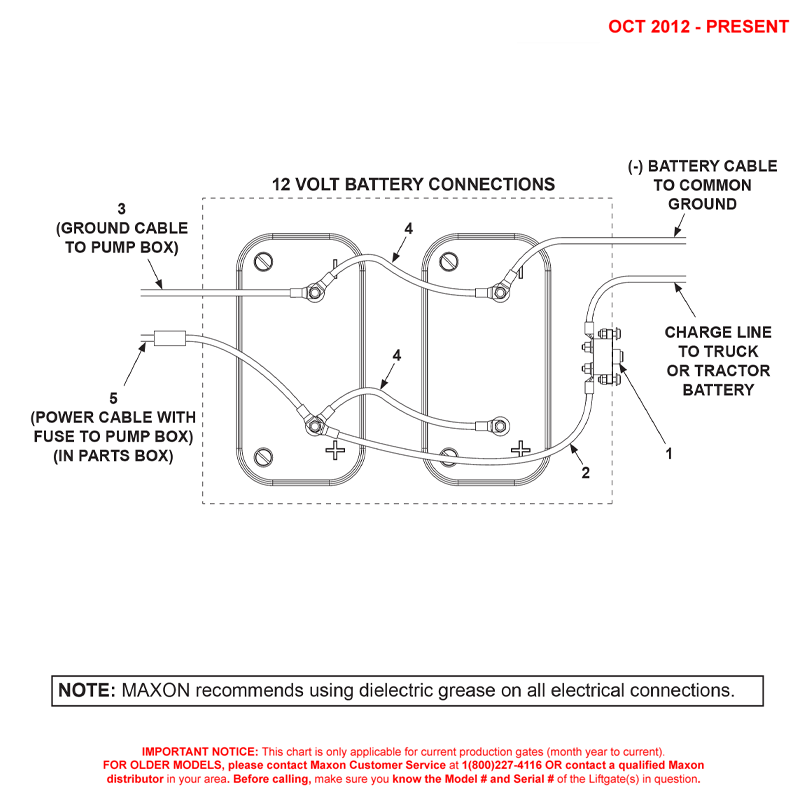

Maxon RCT (Oct 2012 – Present) Battery Box Electrical Components Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
