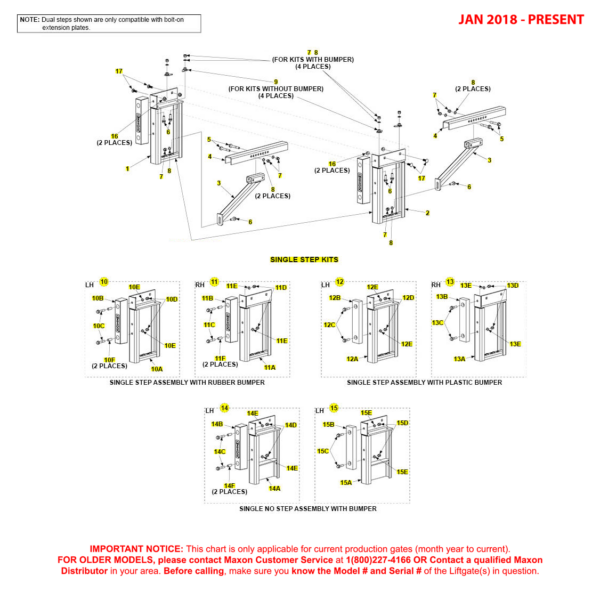

Maxon TE-25 And TE-30 (Jan 2018 - Present) Single Step Kit Diagram

Maxon TE-25 And TE-30 (Jan 2018 – Present) Single Step Kit Diagram

SKU: TE25-TE30-JAN18-PRES-SSK-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 288705-11G - Kit Single Steps 14 Inch Rubber Bumper GMaxon 288705-11G - Kit Single Steps 14 Inch Rubber Bumper G288705-11G-MAXO$1,042.28
0Maxon 288705-11 - Kit Single Steps 14 Inch Rubber BumperMaxon 288705-11 - Kit Single Steps 14 Inch Rubber Bumper288705-11-MAXO$956.55
0Maxon 288705-12G - Kit SNGL Steps 13.5 Inch PE Bumper GMaxon 288705-12G - Kit SNGL Steps 13.5 Inch PE Bumper G288705-12G-MAXO$1,053.00
0Maxon 288705-12 - Kit Single Steps 13.5 Inch PE BumperMaxon 288705-12 - Kit Single Steps 13.5 Inch PE Bumper288705-12-MAXO$967.40
0Maxon 288705-15G - Kit Single Steps No Bumpers GMaxon 288705-15G - Kit Single Steps No Bumpers G288705-15G-MAXO$929.51
0Maxon 288705-15 - Kit Single Steps No BumpersMaxon 288705-15 - Kit Single Steps No Bumpers288705-15-MAXO$844.29
3Maxon 288688-01G - Steps Support Weldment - GALMaxon 288688-01G - Steps Support Weldment - GAL288688-01G-MAXO$119.06
3Maxon 288688-01 - Support Weldment - StepsMaxon 288688-01 - Support Weldment - Steps288688-01-MAXO$117.75
4Maxon 288419-01 - Step Mount ChannelMaxon 288419-01 - Step Mount Channel288419-01-MAXO$80.06
5Maxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LGMaxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LG901024-10-MAXO$2.73
6Maxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LGMaxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LG901024-5-MAXO$1.55
9Maxon 283700-01 - Tear Drop WeldmentMaxon 283700-01 - Tear Drop Weldment283700-01-MAXO$5.93
10Maxon 288675-11G - Single Step Weldment LH GMaxon 288675-11G - Single Step Weldment LH G288675-11G-MAXO$270.47
10Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
10Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
11Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
11Maxon 288675-12G - Single Step Weldment RH GMaxon 288675-12G - Single Step Weldment RH G288675-12G-MAXO$270.47
11Maxon 288675-12 - Single Step Weldment RHMaxon 288675-12 - Single Step Weldment RH288675-12-MAXO$255.53
11Maxon 288690-12 - Single Step Assembly RH 14 Inch Rubber BumperMaxon 288690-12 - Single Step Assembly RH 14 Inch Rubber Bumper288690-12-MAXO$315.78
11Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
11Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
11Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
11Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
12Maxon 288675-11G - Single Step Weldment LH GMaxon 288675-11G - Single Step Weldment LH G288675-11G-MAXO$270.47
12Maxon 288690-13G - Single Step Assembly LH 13.5 Inch PE Bumper GMaxon 288690-13G - Single Step Assembly LH 13.5 Inch PE Bumper G288690-13G-MAXO$325.25
12Maxon 288690-13 - Single Step Assembly LH 13.5 Inch PE BumperMaxon 288690-13 - Single Step Assembly LH 13.5 Inch PE Bumper288690-13-MAXO$286.83
12Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
12Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
13Maxon 288675-12G - Single Step Weldment RH GMaxon 288675-12G - Single Step Weldment RH G288675-12G-MAXO$270.47
13Maxon 288675-12 - Single Step Weldment RHMaxon 288675-12 - Single Step Weldment RH288675-12-MAXO$255.53
13Maxon 288690-14G - Single Step Assembly RH 13.5 Inch PE Bumper GMaxon 288690-14G - Single Step Assembly RH 13.5 Inch PE Bumper G288690-14G-MAXO$338.40
13Maxon 288690-14 - Single Step Assembly RH 13.5 Inch PE BumperMaxon 288690-14 - Single Step Assembly RH 13.5 Inch PE Bumper288690-14-MAXO$325.47
13Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
13Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
13Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
13Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
14Maxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L InchMaxon 092036-10 - RD Mech Tube - 0.625OD X 0.058W X 1.44L Inch092036-10-MAXO$1.56
14Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
14Maxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LGMaxon 901024-9 - Bolt Hex Frame 0.5-13 X 2.75 Inch LG901024-9-MAXO$3.71
14Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
14Maxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 InchMaxon 905344-02 - Rubber Bumper BLK 2.5 X 3 X 14 Inch905344-02-MAXO$29.96
15Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
15Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
15Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98
15Maxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LGMaxon 905386-01 - Bumper Plastic 1.5 X 2.85 X 13.5 Inch LG905386-01-MAXO$36.30
16Maxon 901023 - Flange Lock NutMaxon 901023 - Flange Lock Nut901023-MAXO$1.29
17Maxon 900820-01 - Square Neck Carriage Bolt - 1/2 Inch-13Maxon 900820-01 - Square Neck Carriage Bolt - 1/2 Inch-13900820-01-MAXO$1.56

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
