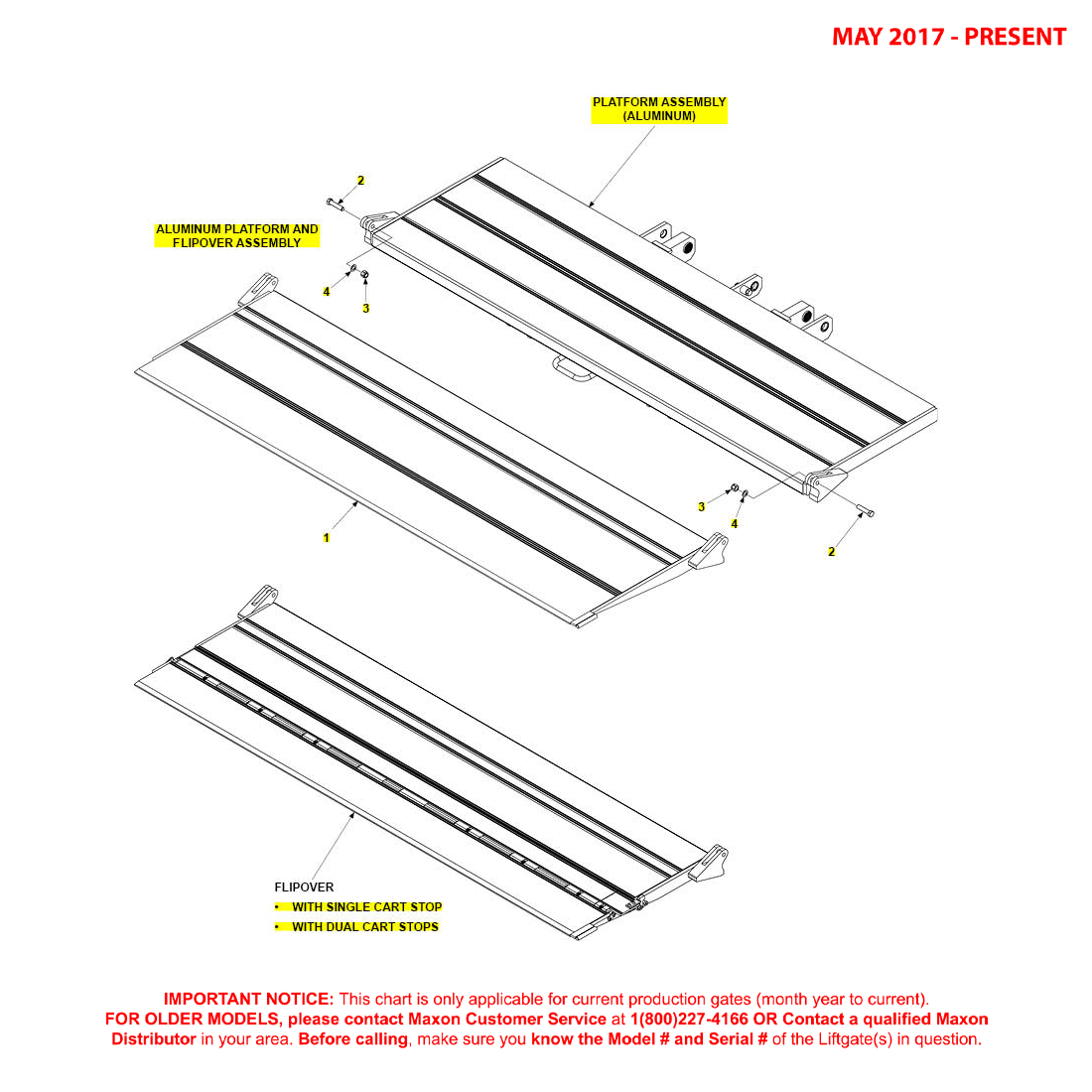

Maxon TE-25 And TE-30 (May 2017 - Present) Aluminum Platform And Flipover Assembly Diagram

Maxon TE-25 And TE-30 (May 2017 – Present) Aluminum Platform And Flipover Assembly Diagram

SKU: TE25-TE30-MAY17-PRES-ALPFFOA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 296650-10 - P/F and F/O Assembly 80 X 24+24 AL-AL NCSMaxon 296650-10 - P/F and F/O Assembly 80 X 24+24 AL-AL NCS296650-10-MAXO$2,895.75
0Maxon 296650-11 - P/F and F/O Assembly 80 X 26+26 AL-AL NCSMaxon 296650-11 - P/F and F/O Assembly 80 X 26+26 AL-AL NCS296650-11-MAXO$3,084.90
0Maxon 296650-14 - P/F and F/O Assembly 80 X 24+24 AL-AL DCSMaxon 296650-14 - P/F and F/O Assembly 80 X 24+24 AL-AL DCS296650-14-MAXO$3,711.83
1Maxon 296879-01 - F/O Weldment AL 80 X 24 NCSMaxon 296879-01 - F/O Weldment AL 80 X 24 NCS296879-01-MAXO$1,142.70
3Maxon 901008 - Nut Nylon 1/2-20 ZCMaxon 901008 - Nut Nylon 1/2-20 ZC901008-MAXO$1.28
4Maxon 902000-14 - Flat Washer .500 X .063 THKMaxon 902000-14 - Flat Washer .500 X .063 THK902000-14-MAXO$0.98

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
