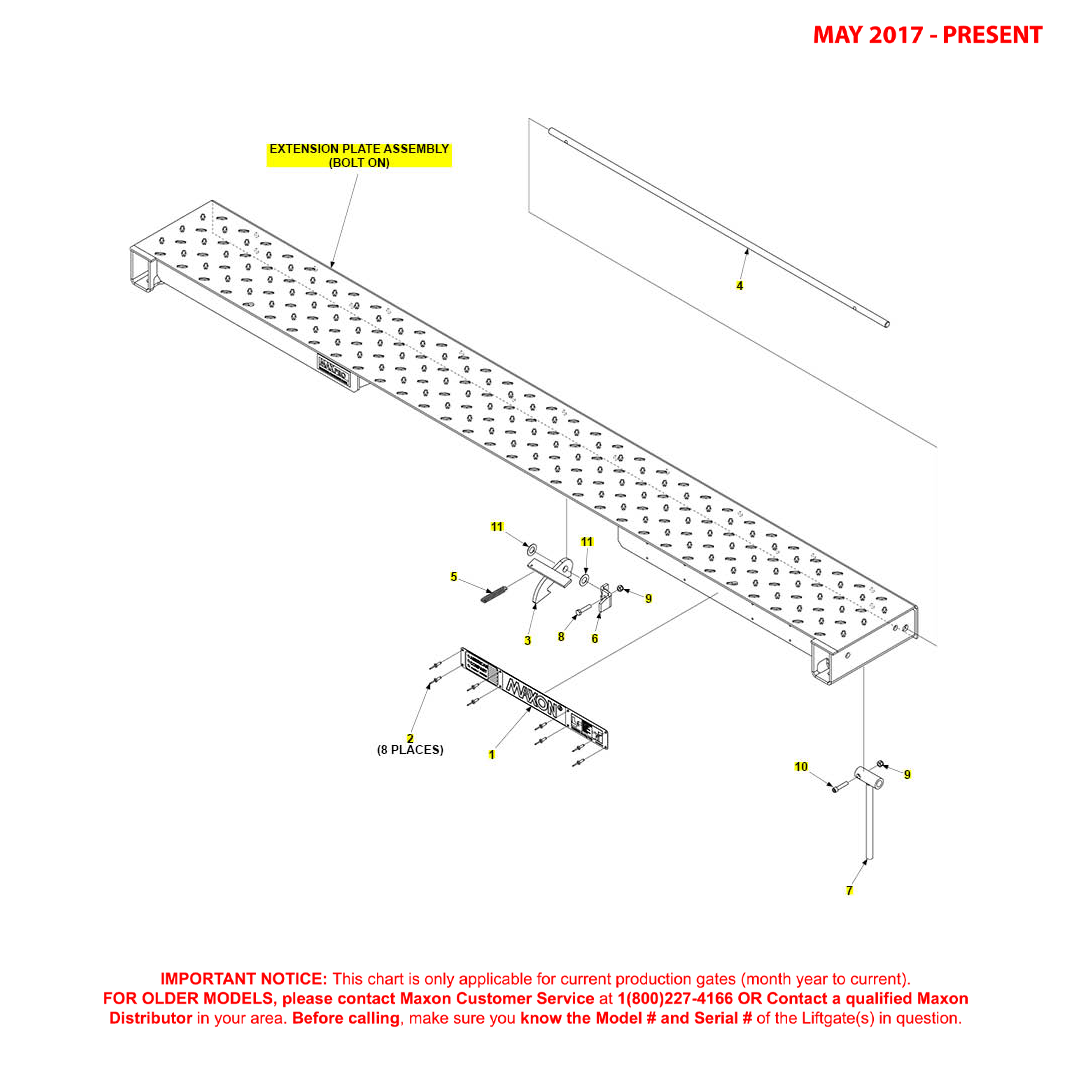

Maxon TE-25 And TE-30 (May 2017 - Present) Galvanized Main Assembly With Single Torsion Spring Diagram From ITEParts.com

ID	Title	SKU	Price
0	Maxon 297260-01G - Extension Plate Assembly STD TUKS 96 Inch Bolt On G	297260-01G-MAXO	$980.81
0	Maxon 297260-01 - Extension Plate Assembly STD TUKS 96 Inch Bolt On	297260-01-MAXO	$716.39
0	Maxon 297260-02G - Extension Plate Assembly STD TUKS 102 Inch Bolt On G	297260-02G-MAXO	$933.24
0	Maxon 297260-02 - Extension Plate Assembly STD TUKS 102 Inch Bolt On	297260-02-MAXO	$769.04
2	Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565	904005-2-MAXO	$0.72
4	Maxon 297256-01 - Bar Hook Release 46 Inch LG	297256-01-MAXO	$34.35
4	Maxon 297256-02 - Bar Hook Release 49 Inch LG	297256-02-MAXO	$39.89
5	Maxon 215345 - Spring Extension .093 X 2.50	215345-MAXO	$10.25
6	Maxon 297768-01 - Bracket Lever - Long	297768-01-MAXO	$8.16
7	Maxon 297769-01 - Handle Weldment	297769-01-MAXO	$31.11
8	Maxon 900009-6 - Screw Cap 5/16-18 X 1-1/2 Inch G8 ZC	900009-6-MAXO	$0.71
9	Maxon 901001 - Nut - Nylon - 5/16-18 Zinc	901001-MAXO	$0.18
11	Maxon 902000-17 - Washer Flat .625 .032 Inch THK	902000-17-MAXO	$0.57

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
