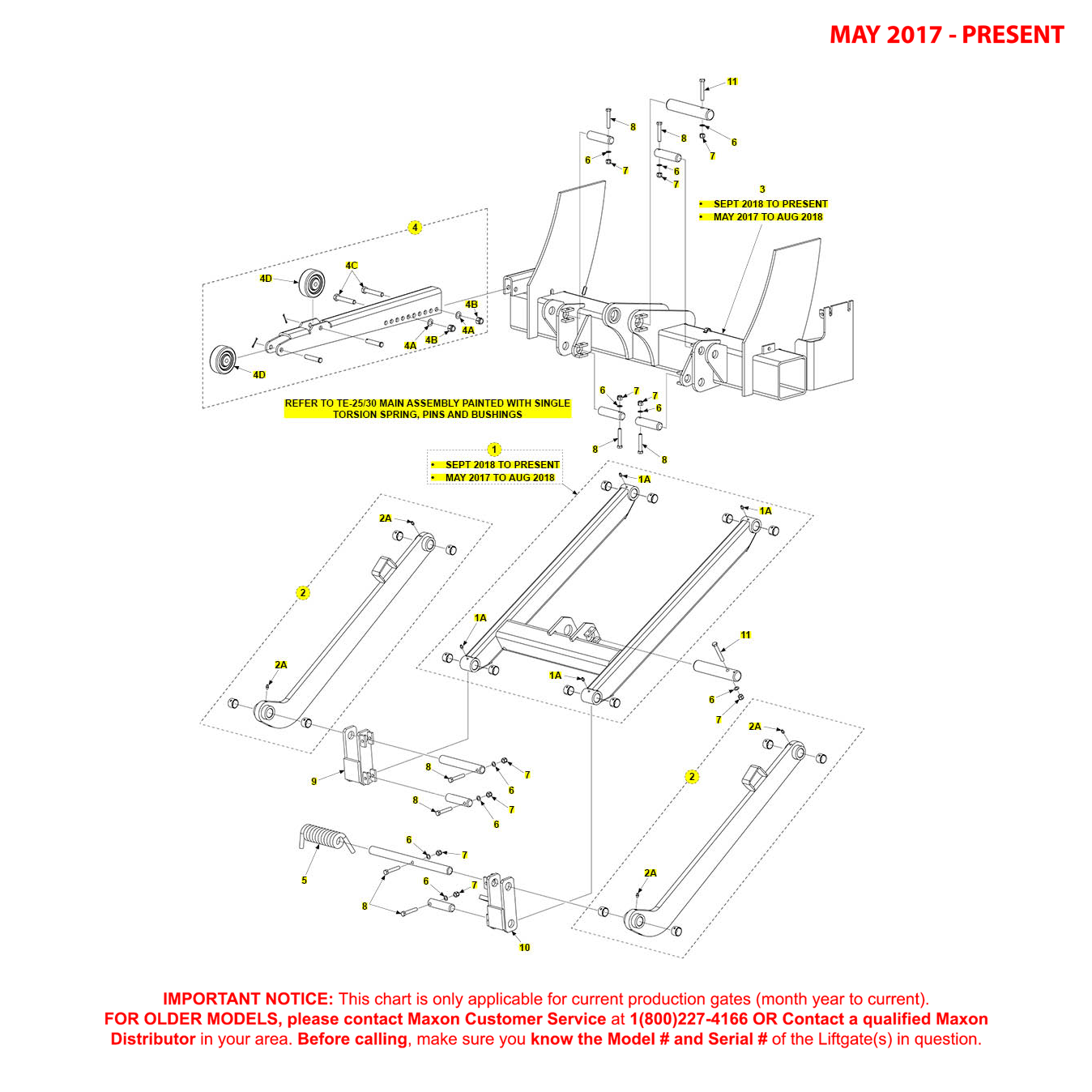

Maxon TE-25 And TE-30 (May 2017 - Present) Painted Main Assembly With Single Torsion Spring Diagram

Maxon TE-25 And TE-30 (May 2017 – Present) Painted Main Assembly With Single Torsion Spring Diagram

SKU: TE25-TE30-MAY17-PRES-PMA-STS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286009-01 - Lift Frame AssemblyMaxon 286009-01 - Lift Frame Assembly286009-01-MAXO$851.06
0Maxon 298073-01G - Lift Frame Assembly GALMaxon 298073-01G - Lift Frame Assembly GAL298073-01G-MAXO$704.55
2Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
2Maxon 286007-01 - Parallel Arm AssemblyMaxon 286007-01 - Parallel Arm Assembly286007-01-MAXO$323.27
4Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5280082-01-MAXO$23.28
4Maxon 287060-01 - Kit Opener TUK-A-WAYMaxon 287060-01 - Kit Opener TUK-A-WAY287060-01-MAXO$148.98
4Maxon 900035-9 - Screw Cap HXHD .5-13 UNC-2A 3.00 InchMaxon 900035-9 - Screw Cap HXHD .5-13 UNC-2A 3.00 Inch900035-9-MAXO$1.56
4Maxon 901010 - Nylon Lock Nut 1/2-13 ZCMaxon 901010 - Nylon Lock Nut 1/2-13 ZC901010-MAXO$0.54
4Maxon 902000-13 - Flat Washer .500 .032 Inch THKMaxon 902000-13 - Flat Washer .500 .032 Inch THK902000-13-MAXO$0.18
5Maxon 286038-01 - Torsion SpringMaxon 286038-01 - Torsion Spring286038-01-MAXO$44.67
6Maxon 902000-9 - Washer Flat .375 X .032 THKMaxon 902000-9 - Washer Flat .375 X .032 THK902000-9-MAXO$0.32
7Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
8Maxon 900014-9 - Screw Hex Cap .38-16 X 2.25 Inch G8 ZCMaxon 900014-9 - Screw Hex Cap .38-16 X 2.25 Inch G8 ZC900014-9-MAXO$0.80
10Maxon 296872-02 - Shackle Weldment HB RH 4.63Maxon 296872-02 - Shackle Weldment HB RH 4.63296872-02-MAXO$109.58
10Maxon 296872-04 - Shackle Weldment HB/LB RH 5Maxon 296872-04 - Shackle Weldment HB/LB RH 5296872-04-MAXO$110.33
11Maxon 900014-18 - Screw Hex Cap 0.38-16 X 2.75 Inch G8 ZCMaxon 900014-18 - Screw Hex Cap 0.38-16 X 2.75 Inch G8 ZC900014-18-MAXO$0.87

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
