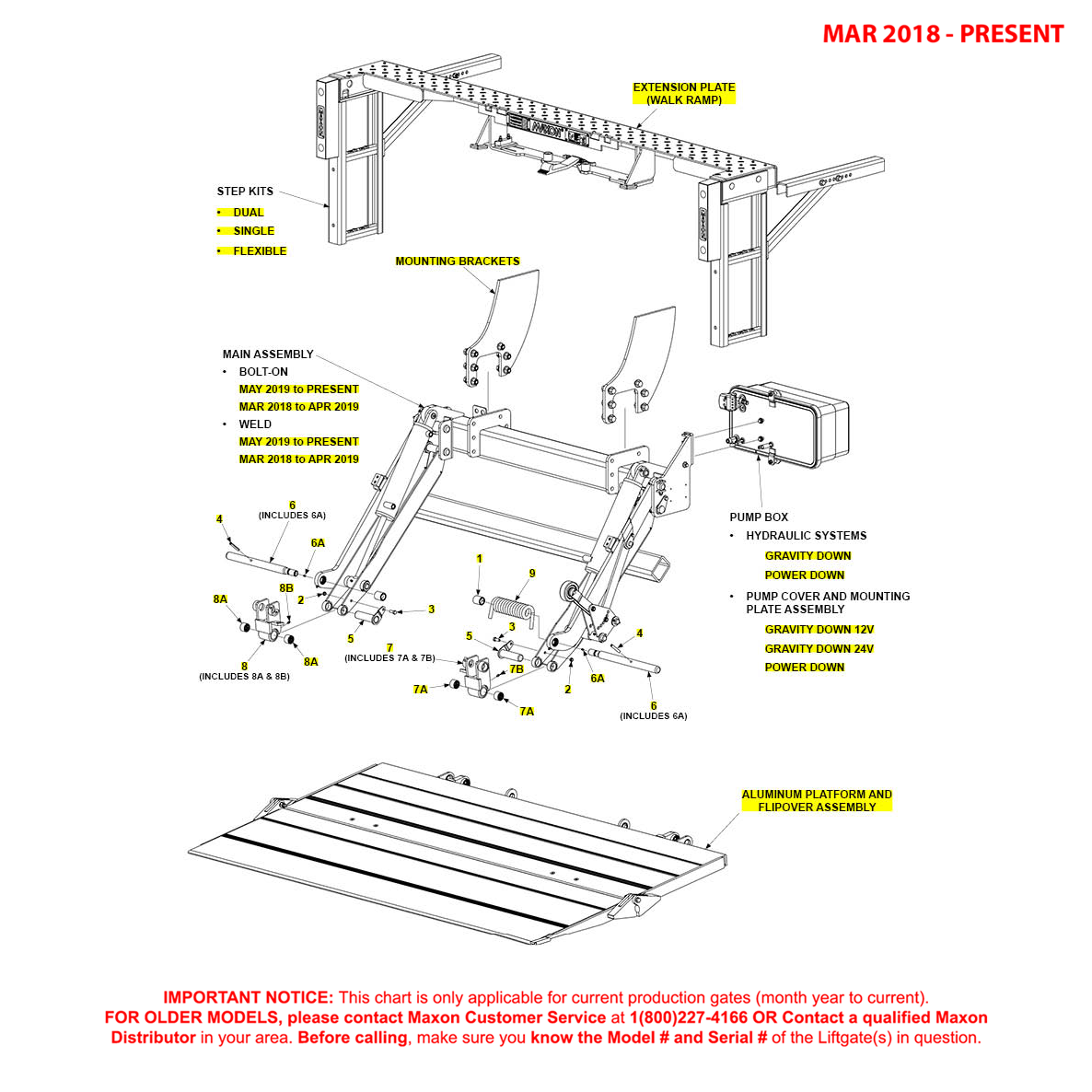

Maxon TE-25DC (Mar 2018 - Present) Final Assembly With Aluminum Platform Walk Ramp Diagram

Maxon TE-25DC (Mar 2018 – Present) Final Assembly With Aluminum Platform Walk Ramp Diagram

SKU: TE25DC-MAR18-PRES-FAALPFWR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 285098-01 - Bushing Assembly P/F SpringMaxon 285098-01 - Bushing Assembly P/F Spring285098-01-MAXO$69.15
2Maxon 226941 - Nut Nylon Lock 3/8-24 Thin ZincMaxon 226941 - Nut Nylon Lock 3/8-24 Thin Zinc226941-MAXO$0.33
4Maxon 904717-08 - Roll Pin - 0.38 X 2.5 ZincMaxon 904717-08 - Roll Pin - 0.38 X 2.5 Zinc904717-08-MAXO$0.93
5Maxon 284210-01 - Shackle Pin AssemblyMaxon 284210-01 - Shackle Pin Assembly284210-01-MAXO$40.61
6Maxon 288348-01 - Pin Spring AssemblyMaxon 288348-01 - Pin Spring Assembly288348-01-MAXO$81.93
7Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
7Maxon 284202-04G - Shackle Assembly RH LB GALVMaxon 284202-04G - Shackle Assembly RH LB GALV284202-04G-MAXO$192.26
7Maxon 284202-04 - Shackle Assembly RH LBMaxon 284202-04 - Shackle Assembly RH LB284202-04-MAXO$250.65
7Maxon 284215-04G - Shackle Assembly RH HB GALVMaxon 284215-04G - Shackle Assembly RH HB GALV284215-04G-MAXO$198.05
7Maxon 284215-04 - Shackle Assembly RH HBMaxon 284215-04 - Shackle Assembly RH HB284215-04-MAXO$261.80
8Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
8Maxon 284202-01G - Shackle Assembly LH LB GALVMaxon 284202-01G - Shackle Assembly LH LB GALV284202-01G-MAXO$187.64
8Maxon 284202-01 - Shackle Assembly LH LBMaxon 284202-01 - Shackle Assembly LH LB284202-01-MAXO$234.84
8Maxon 284215-01G - Shackle Assembly LH HB GALVMaxon 284215-01G - Shackle Assembly LH HB GALV284215-01G-MAXO$194.13
8Maxon 284215-01 - LH Shackle AssemblyMaxon 284215-01 - LH Shackle Assembly284215-01-MAXO$268.43
8Maxon 908177-02 - Pre-Lubricated Bearing (1.25 ID X 1)Maxon 908177-02 - Pre-Lubricated Bearing (1.25 ID X 1)908177-02-MAXO$22.77
9Maxon 284541-01 - RH Torsion Spring P/FMaxon 284541-01 - RH Torsion Spring P/F284541-01-MAXO$201.74

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
