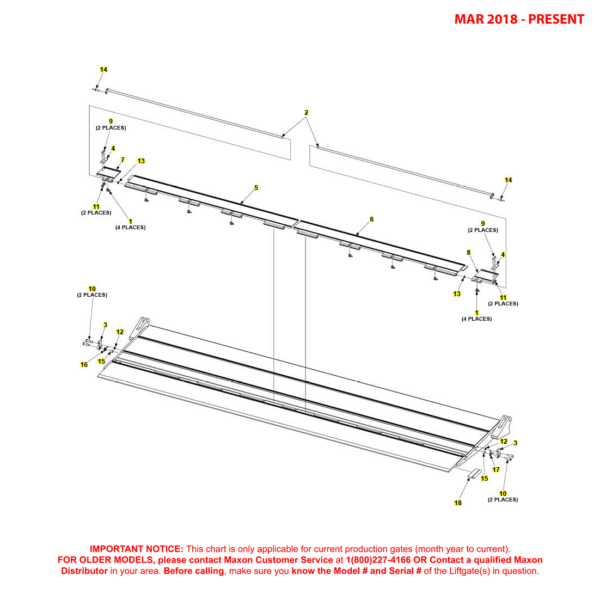

Maxon TE-33 (Mar 2018 - Present) Flipover With Dual Cart Stops For Aluminum Platform Diagram

Maxon TE-33 (Mar 2018 – Present) Flipover With Dual Cart Stops For Aluminum Platform Diagram

SKU: TE33-MAR18-PRES-FODCS-ALPF-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 285518-02-100 - F/O Assembly AL/AL P/F DCS 26 LGMaxon 285518-02-100 - F/O Assembly AL/AL P/F DCS 26 LG285518-02-100-MAXO$1,710.15
1Maxon 282729-01 - Spring C/S .08 Wire 302 SSMaxon 282729-01 - Spring C/S .08 Wire 302 SS282729-01-MAXO$12.39
2Maxon 282738-02 - Pin Weldment Cart StopMaxon 282738-02 - Pin Weldment Cart Stop282738-02-MAXO$35.34
3Maxon 282739-01 - Hook Cart Stop LockingMaxon 282739-01 - Hook Cart Stop Locking282739-01-MAXO$25.01
4Maxon 282748-01 - Flat C/S Lock SupportMaxon 282748-01 - Flat C/S Lock Support282748-01-MAXO$16.68
5Maxon 285304-01 - Dual Cart Stop LH F/O MAX15TMaxon 285304-01 - Dual Cart Stop LH F/O MAX15T285304-01-MAXO$146.18
6Maxon 285304-02 - Dual Cart Stop RH F/O MAX15TMaxon 285304-02 - Dual Cart Stop RH F/O MAX15T285304-02-MAXO$156.78
7Maxon 286099-01 - Lock-Hinge Cart Stop LHMaxon 286099-01 - Lock-Hinge Cart Stop LH286099-01-MAXO$23.00
8Maxon 286099-02 - Lock-Hinge Cart Stop RHMaxon 286099-02 - Lock-Hinge Cart Stop RH286099-02-MAXO$23.00
9Maxon 900005-4 - Screw Button 1/4-20 X 1 AlloyMaxon 900005-4 - Screw Button 1/4-20 X 1 Alloy900005-4-MAXO$0.90
10Maxon 900723-05 - Screw SHLDR .38 X .75 Inch LG SSMaxon 900723-05 - Screw SHLDR .38 X .75 Inch LG SS900723-05-MAXO$4.44
11Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
12Maxon 902000-8 - Flat Washer - .312 .063 THKMaxon 902000-8 - Flat Washer - .312 .063 THK902000-8-MAXO$0.32
13Maxon 903402-08 - Washer Flat Nylon .38ID X .56ODMaxon 903402-08 - Washer Flat Nylon .38ID X .56OD903402-08-MAXO$0.18
14Maxon 903715-06 - Rivet BL/DM AL/AL .25 X .62-.75Maxon 903715-06 - Rivet BL/DM AL/AL .25 X .62-.75903715-06-MAXO$0.57
15Maxon 905328-01 - Bearing NYL .38ID X .5OD X .38LGMaxon 905328-01 - Bearing NYL .38ID X .5OD X .38LG905328-01-MAXO$2.07
16Maxon 282749-01 - Spring LH Hook .078 Wire 302SSMaxon 282749-01 - Spring LH Hook .078 Wire 302SS282749-01-MAXO$8.30
17Maxon 282749-02 - Spring RH Hook .078 Wire 302SSMaxon 282749-02 - Spring RH Hook .078 Wire 302SS282749-02-MAXO$8.30
18Maxon 265819-01 - Handle-Weldment AL F/OMaxon 265819-01 - Handle-Weldment AL F/O265819-01-MAXO$20.94

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
