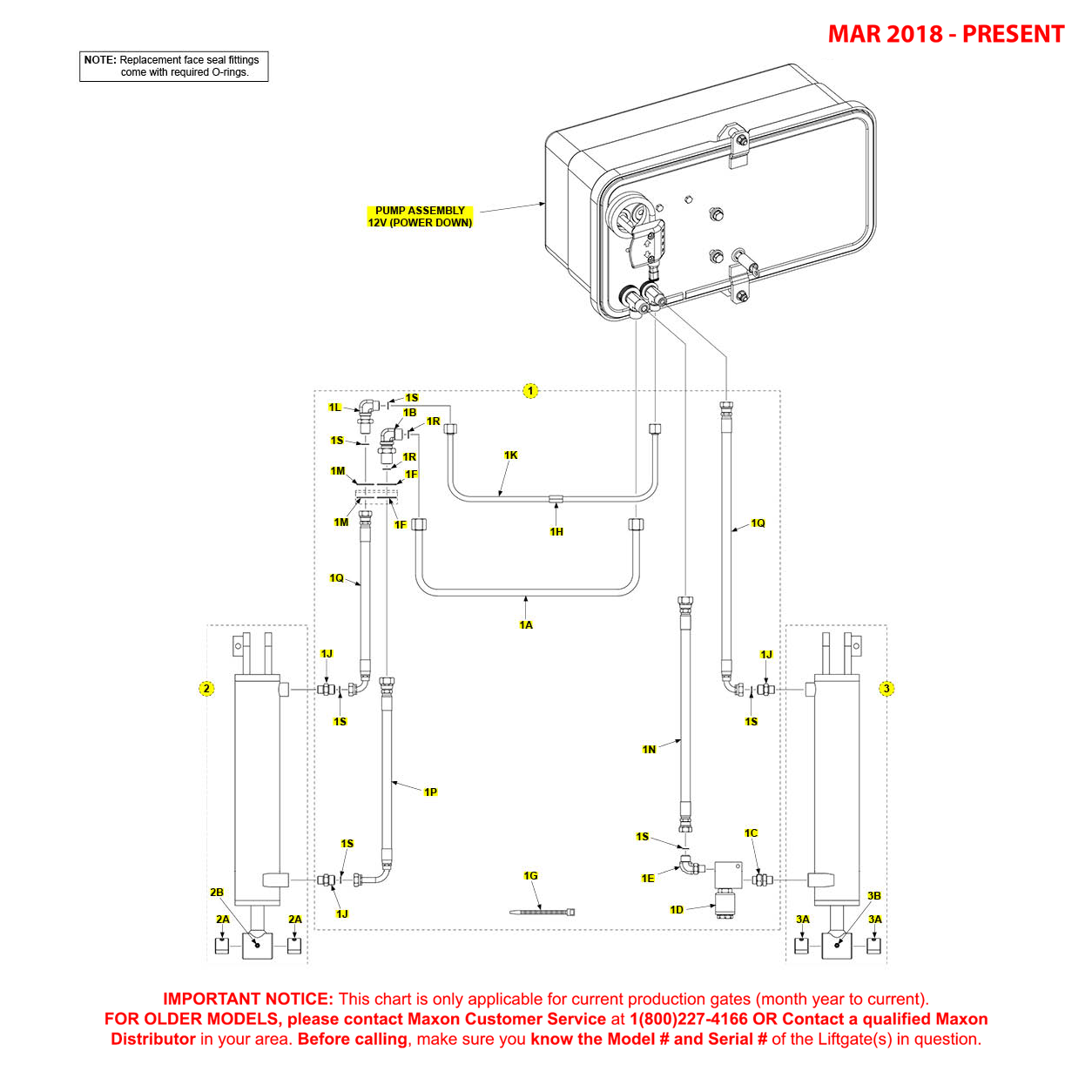

Maxon TE-33 (Mar 2018 - Present) Power Down Hydraulic Systems Diagram

Maxon TE-33 (Mar 2018 – Present) Power Down Hydraulic Systems Diagram

SKU: TE33-MAR18-PRES-PD-HYDS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 282999-01 - Lock Valve Assembly 12VMaxon 282999-01 - Lock Valve Assembly 12V282999-01-MAXO$133.85
1Maxon 285655-01 - F/S Tube Assembly TE-33Maxon 285655-01 - F/S Tube Assembly TE-33285655-01-MAXO$73.47
1Maxon 285656-01 - F/S Tube Assembly TE-33Maxon 285656-01 - F/S Tube Assembly TE-33285656-01-MAXO$82.16
1Maxon 299064-01 - H/A .38HP SAE 6 F-F 29 Inch LGMaxon 299064-01 - H/A .38HP SAE 6 F-F 29 Inch LG299064-01-MAXO$38.79
1Maxon 902028-12 - Washer Flat - 1.250 OD X .757 IDMaxon 902028-12 - Washer Flat - 1.250 OD X .757 ID902028-12-MAXO$0.77
1Maxon 902028-14 - Washer Flat 1.437 OD X .884 IDMaxon 902028-14 - Washer Flat 1.437 OD X .884 ID902028-14-MAXO$0.96
1Maxon 905162 - Elbow Bulkhead Union F/S #6Maxon 905162 - Elbow Bulkhead Union F/S #6905162-MAXO$38.60
1Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
1Maxon 905322-01 - Plastic Tie 8 Inch (120LB) BlackMaxon 905322-01 - Plastic Tie 8 Inch (120LB) Black905322-01-MAXO$0.50
1Maxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-M906707-01-MAXO$8.45
1Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
1Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39
1Maxon 906786-01 - Union STR SAE #6 M-M O-Ring ADJMaxon 906786-01 - Union STR SAE #6 M-M O-Ring ADJ906786-01-MAXO$6.75
1Maxon 906858-01 - Elbow Bulkhead Union F/S #8Maxon 906858-01 - Elbow Bulkhead Union F/S #8906858-01-MAXO$33.99
2Maxon 284947-01 - Hydraulic Cylinder D/ACT 2.75BX12STX1RD LMaxon 284947-01 - Hydraulic Cylinder D/ACT 2.75BX12STX1RD L284947-01-MAXO$782.87
3Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
3Maxon 284947-02 - Hydraulic Cylinder D/Act 2.75BX12STX1RD RMaxon 284947-02 - Hydraulic Cylinder D/Act 2.75BX12STX1RD R284947-02-MAXO$782.87
3Maxon 908178-02 - Bearing - Pre Lubricating 1.00 ID X 1.0 LG InchMaxon 908178-02 - Bearing - Pre Lubricating 1.00 ID X 1.0 LG Inch908178-02-MAXO$12.32

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
