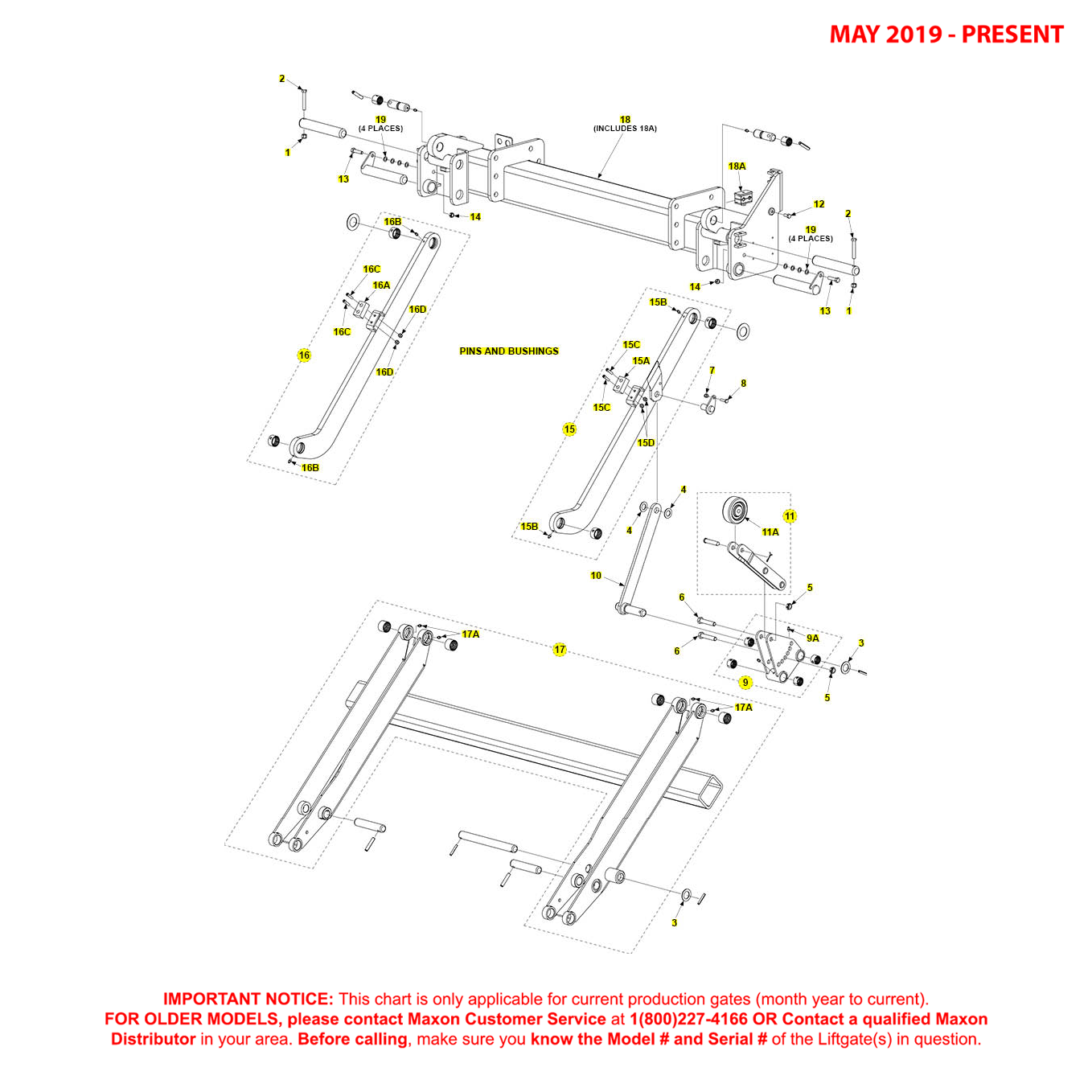

Maxon TE-33 (May 2019 - Present) Bolt-On Main Assembly Diagram

Maxon TE-33 (May 2019 – Present) Bolt-On Main Assembly Diagram

SKU: TE33-MAY19-PRES-BOMA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
2Maxon 900014-10 - Screw Hex Cap .38-16 X 2.5 Inch G8 ZCMaxon 900014-10 - Screw Hex Cap .38-16 X 2.5 Inch G8 ZC900014-10-MAXO$0.89
3Maxon 902000-25 - Washer FlatMaxon 902000-25 - Washer Flat902000-25-MAXO$2.09
4Maxon 902020-1 - Washer Flat Nyon 1-5/16 X .765Maxon 902020-1 - Washer Flat Nyon 1-5/16 X .765902020-1-MAXO$1.56
5Maxon 901016-1 - Nut Hex THN HD LKG .500-20UNFMaxon 901016-1 - Nut Hex THN HD LKG .500-20UNF901016-1-MAXO$0.99
6Maxon 900033-7 - Screw Cap .5-20 X 2.5 Inch GR8 ZCMaxon 900033-7 - Screw Cap .5-20 X 2.5 Inch GR8 ZC900033-7-MAXO$2.18
8Maxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZCMaxon 900000-4 - Hex Bolt 1/4-20 X 1 Inch GR8 ZC900000-4-MAXO$0.23
9Maxon 286536-01G - Bracket Assembly Opener GALVMaxon 286536-01G - Bracket Assembly Opener GALV286536-01G-MAXO$278.96
10Maxon 286538-01 - Arm WeldmentMaxon 286538-01 - Arm Weldment286538-01-MAXO$90.60
11Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5Maxon 280082-01 - Roller Opener 3.5 X 1.25 X .5280082-01-MAXO$23.28
11Maxon 286541-01G - Opener Assembly GALVMaxon 286541-01G - Opener Assembly GALV286541-01G-MAXO$153.83
12Maxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZCMaxon 900009-3 - Hex Bolt 5/16-18 X 3/4 - GR8 ZC900009-3-MAXO$0.38
14Maxon 226941 - Nut Nylon Lock 3/8-24 Thin ZincMaxon 226941 - Nut Nylon Lock 3/8-24 Thin Zinc226941-MAXO$0.33
15Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
15Maxon 285715-02G - Parallel Arm Assembly RH GALVMaxon 285715-02G - Parallel Arm Assembly RH GALV285715-02G-MAXO$365.12
15Maxon 285715-02 - Parallel Arm Assembly RHMaxon 285715-02 - Parallel Arm Assembly RH285715-02-MAXO$366.03
15Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
16Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
16Maxon 285715-01G - Parallel Arm Assembly LH GALVMaxon 285715-01G - Parallel Arm Assembly LH GALV285715-01G-MAXO$344.52
16Maxon 285715-01 - Parallel Arm Assembly LHMaxon 285715-01 - Parallel Arm Assembly LH285715-01-MAXO$302.33
16Maxon 900025-1 - Screw Soc 1/4-20 X 1 Inch AlloyMaxon 900025-1 - Screw Soc 1/4-20 X 1 Inch Alloy900025-1-MAXO$0.32
16Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
17Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
17Maxon 298230-01G - Lift Frame Assembly GALVMaxon 298230-01G - Lift Frame Assembly GALV298230-01G-MAXO$1,654.58
18Maxon 908190-01 - Clamp Dual HoseMaxon 908190-01 - Clamp Dual Hose908190-01-MAXO$7.20
19Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
