- Maintain smooth operation with easily greasable design.
- Durable one-piece cast iron housing increases bearing life.
- Easy installation even in tight places.
- Set screw design helps avoid shaft slippage.

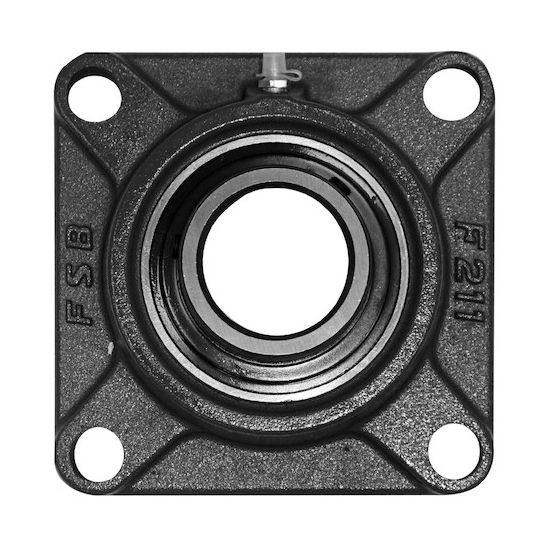

Buyers Products 2 Inch Set Screw Locking Flange Bearing (4 Bolt) is built for long life with simple installation and maintenance.
The driveline-grade steel bearing is mounted in a cast iron housing, which helps make the flanges rugged and durable. The included grease fitting ensures ease of maintenance for continual smooth operation. The standard 4 bolt mounting design makes installation easy even in tight places. Its set screw design helps avoid shaft slippage.
| Bearing Insert Material | Carbon Steel |
| Bolt Hole Center To Center | 5.125 Inches |
| Bolt Pattern | Square |
| Bolt Size | 0.625 Inches |
| Greasable (Y/N) | Yes |
| Housing Material | Cast Iron |
| Bore Diameter | 2 Inches |
| I (Diagram) | 0.98 Inches |
| Bearing Insert Type | Self-Aligning |
| G (Diagram) | 0.78 Inches |
| L (Diagram) | 1.69 Inch |
| Locking Type | Set Screw |
| S (Diagram/Bolt Hole Diameter) | 0.750 Inches |
| Bi (Diagram) | 2.189 Inches |
| Overall Width | 6.38 Inches |
| Overall Height | 6.38 Inches |
| Overall Depth | 2.31 Inches |
| Swenson | 04080-04700 |
| Warren | 70030046 |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 390 |
| Sell Pack Type | Box |
| Shipping Weight | 8 Lbs |
| UPC | 724920074391 |
Product Common Use: Remote Mount Hydraulic Pumps Shaft Driven Water Pumps, Shaft Driven Air Compressors, Shaft Driven Generators, Shaft Driven Water Pumps
