- Spring-loaded bolt can be locked in the open position as needed.
- Choose between a 5/8 in. stainless steel or heat-treated steel pin.
- Can be ordered unassembled for custom installation.
- Stainless steel spring and spring pin provides the ultimate in corrosion resistance.

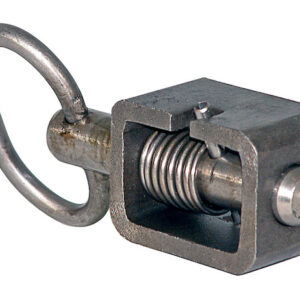

Buyers Products Weld-On Spring Latch is designed for 90° engage application. The spring-loaded mechanism can be locked in the open position; turn to put the spring in the closed position.
The latch comes with either a heat-treated or stainless steel tube. Both feature a stainless steel pin and spring.
Latch can be ordered unassembled for a custom installation. Extended plunger model is also available.
| Bolt Finish | Plain |
| Bolt Material | Stainless Steel |
| Handle Finish | Plain |
| Handle Material | Stainless Steel |
| Housing Finish | Plain |
| Housing Material | Stainless Steel |
| Latch Style | Spring Latch |
| Pin Diameter | 0.63 Inches |
| Housing Length | 2 Inches |
| Bolt Width | 0.62 Inches |
| Housing Width | 1.50 Inches |
| Housing Height | 1.22 Inches |
| Pin Length | 0.84 Inches |
| Handle Length | 1.75 Inches |
| Mounting Style | Weld-On |
| Keeper Included (Y/N) | No |
| Min Order Qty | 1 |
| Multiple Sale Qty | 1 |
| Product Code | 510 |
| Sell pack Type | Each |
| Shipping Weight | 1 Lb |
| UPC | 724920080965 |
Product Common Use: SHPE Spreader / Trailer Equipment / Truck Equipment
