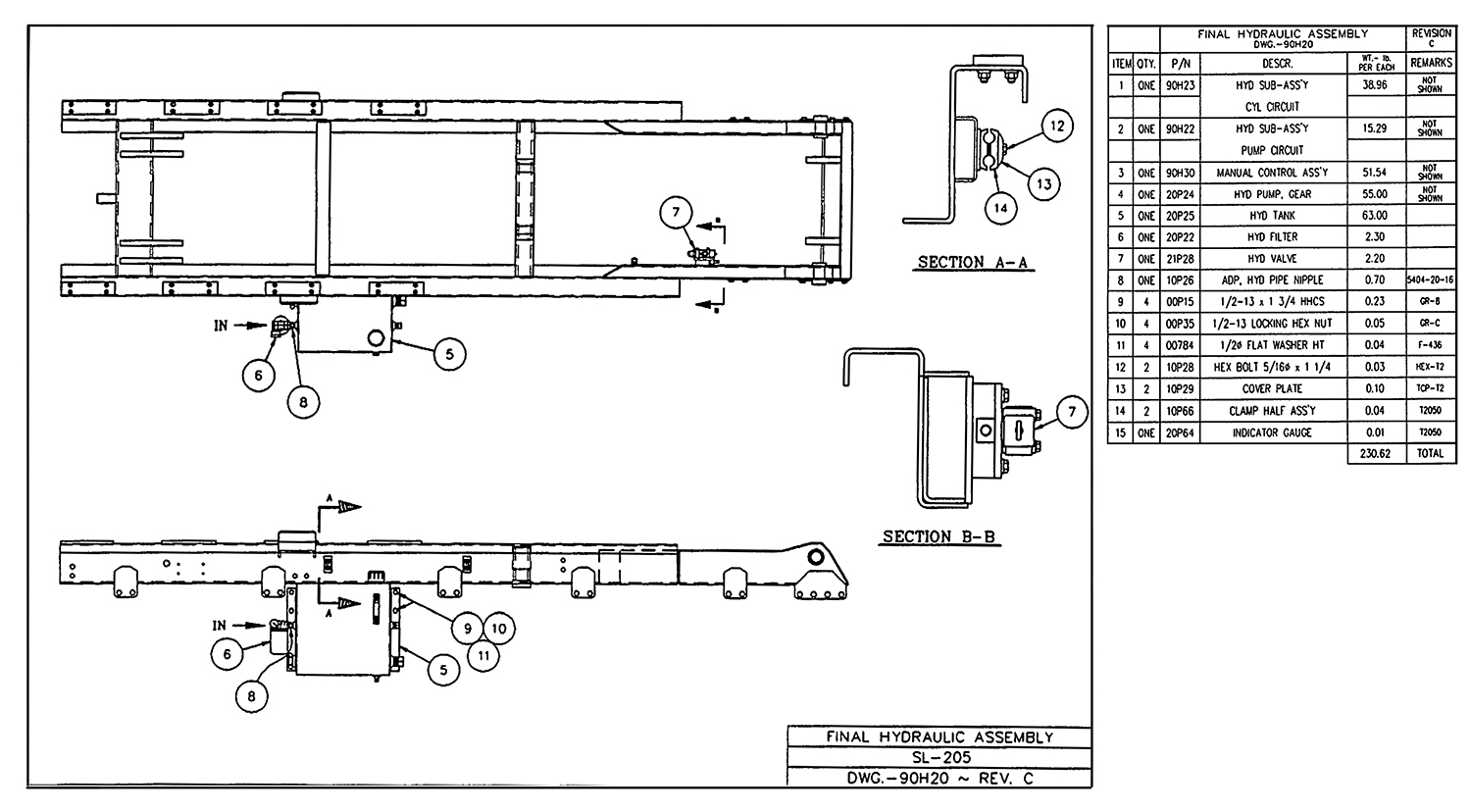

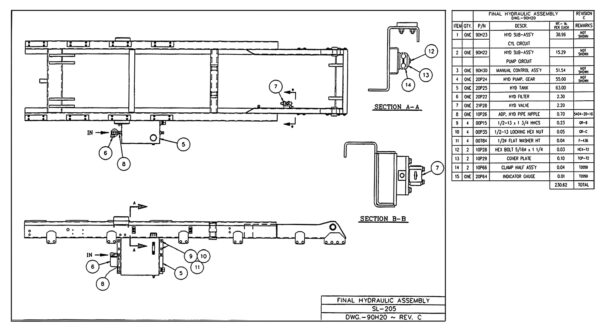

SL-205 Final Hydraulic Assembly Diagram

SL-205 Final Hydraulic Assembly Diagram

SKU: SL-205-FHA-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
4Swaploader 20P24 - Hydraulic Pump LH 4.46 - 20FB/16FBSwaploader 20P24 - Hydraulic Pump LH 4.46 - 20FB/16FB20P24-SWAP$2,215.95
5Swaploader 20P25 - Hyd Tank 25 GallonSwaploader 20P25 - Hyd Tank 25 Gallon20P25-SWAP$1,005.68
6Swaploader 20P22 - Hyd Filter Assy 25 GPMSwaploader 20P22 - Hyd Filter Assy 25 GPM20P22-SWAP$85.31
8Swaploader 10P26 - Adp Hyd 20MP/16MPSwaploader 10P26 - Adp Hyd 20MP/16MP10P26-SWAP$11.64
9Swaploader 00P15 - HHCS 1/2-13 UNC x 1-3/4 Gr8Swaploader 00P15 - HHCS 1/2-13 UNC x 1-3/4 Gr800P15-SWAP$0.78
10Swaploader 00P35 - Nut Lock 1/2-13 UNC GrCSwaploader 00P35 - Nut Lock 1/2-13 UNC GrC00P35-SWAP$0.26
11Swaploader 00784 - Washer Flat 1/2 ZPSwaploader 00784 - Washer Flat 1/2 ZP00784-SWAP$0.12
12Swaploader 10P28 - HHCS 5-16-18 UNC x 1-1/4 ZPSwaploader 10P28 - HHCS 5-16-18 UNC x 1-1/4 ZP10P28-SWAP$1.29
13Swaploader 10P29 - Cover Plate Clamp 7/8Swaploader 10P29 - Cover Plate Clamp 7/810P29-SWAP$1.77
14Swaploader 10P66 - Clamp Assy Twin 5/8Swaploader 10P66 - Clamp Assy Twin 5/810P66-SWAP$2.34
15Swaploader 20P64 - Hyd Filter Indicator GaugeSwaploader 20P64 - Hyd Filter Indicator Gauge20P64-SWAP$16.91
