| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Swaploader 43H32 - SL-406 Decal Assembly | 43H32-SWAP | $76.02 | ||
| 2 | | Swaploader 43H33 - SL-406 Parts and Operations Manual | 43H33-SWAP | $54.45 | ||
| 3 | | Swaploader 40H31 - Spring Mounting Bracket | 40H31-SWAP | $294.12 | ||
| 4 | | Swaploader 81H23 - Mnt Bkt 7x3/8x8 | 81H23-SWAP | $15.39 | ||
| 5 | | Swaploader 81H24 - Rear Mounting Bracket (8 x 3/8 x 12 Inches) | 81H24-SWAP | $29.96 | ||
| 6 | | Swaploader 00752 - Washer Lock 5/16 | 00752-SWAP | $0.04 | ||
| 7 | | Swaploader 00755 - Washer Lock 3/8 | 00755-SWAP | $0.04 | ||
| 8 | | Swaploader 00785 - Washer Flat 5/8 ZP | 785-SWAP | $0.23 | ||
| 9 | | Swaploader 00P14 - Nut Hex 3/8-16 UNC Gr8 | 00P14-SWAP | $0.08 | ||
| 10 | | Swaploader 00P19 - HHCS 5/16-18 UNC x 2-3/4 Gr8 | 00P19-SWAP | $0.36 | ||
| 11 | | Swaploader 00P20 - Nut Hex 5/16-18 UNC Gr8 | 00P20-SWAP | $0.05 | ||
| 12 | | Swaploader 00P44 - HHCS 3/8-16 UNC x 1-1/2 Gr8 | 00P44-SWAP | $0.35 | ||
| 13 | | Swaploader 00P55 - Nut Lock 5/8-11 UNC Gr8 | 00P55-SWAP | $0.43 | ||
| 14 | | Swaploader 00P69 - HHCS 5/8-11 UNC x 2 Gr8 | 00P69-SWAP | $1.17 | ||
| 15 | | Swaploader 10P28 - HHCS 5-16-18 UNC x 1-1/4 ZP | 10P28-SWAP | $1.14 | ||
| 16 | | Swaploader 10P29 - Cover Plate Clamp 7/8 | 10P29-SWAP | $2.00 | ||
| 17 | | Swaploader 10P66 - Clamp Assy Twin 5/8 | 10P66-SWAP | $1.89 |
Uncategorized

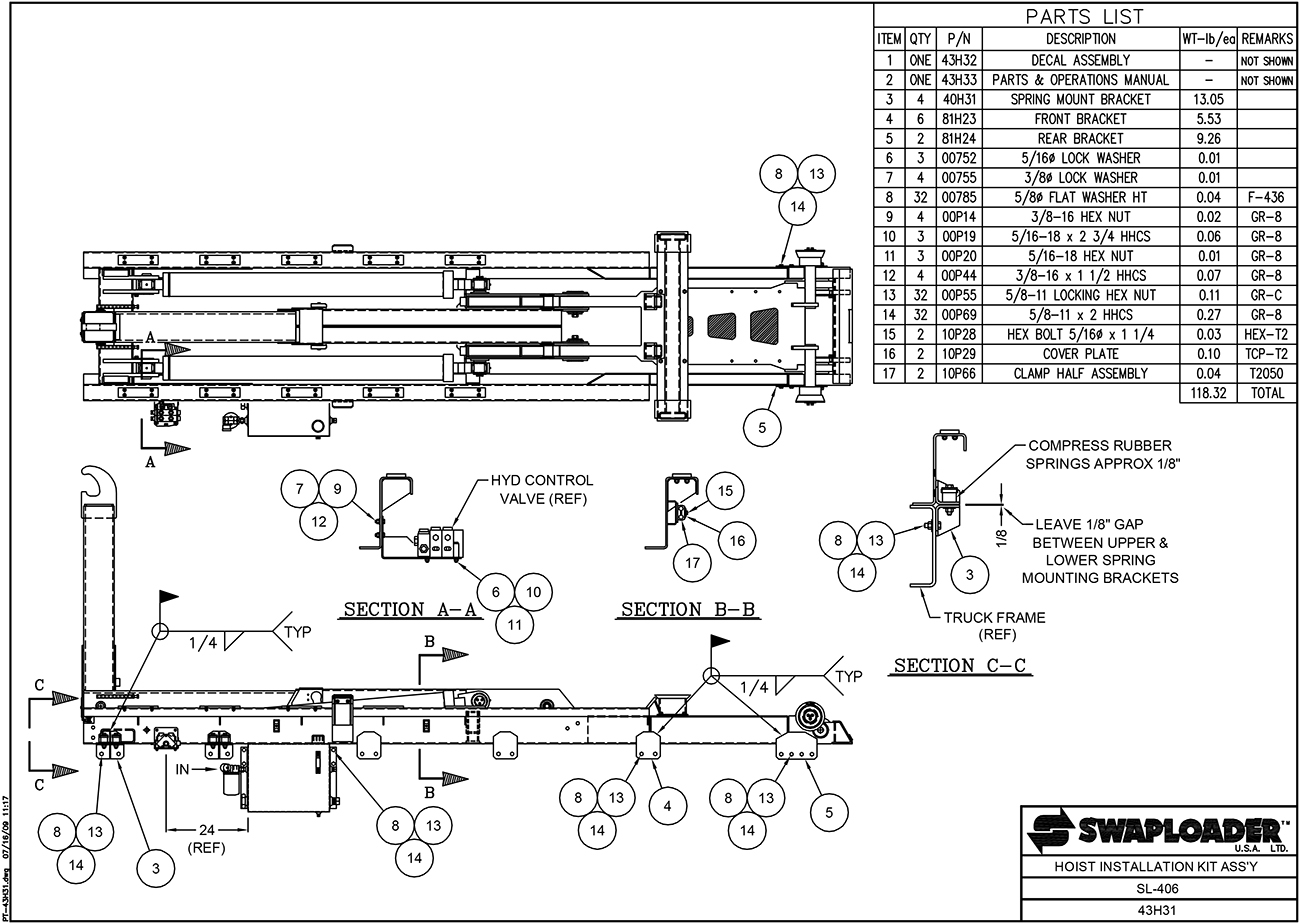

SL-406 Hoist Installation Kit Assembly Diagram
