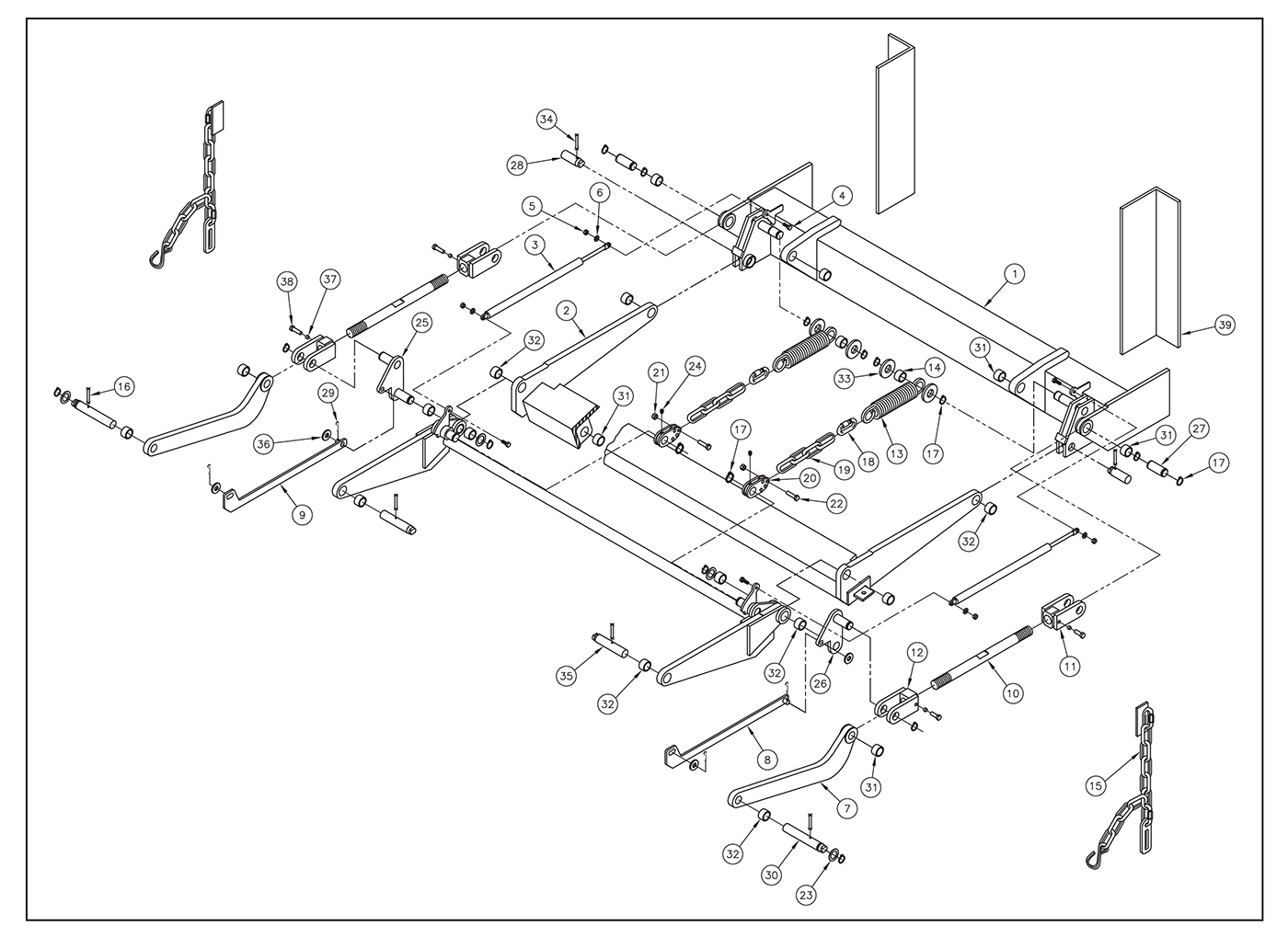

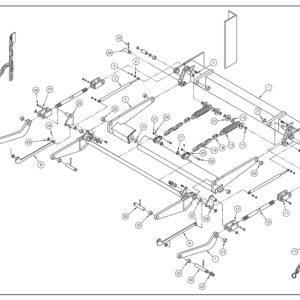

SL15 EST/SL20 EST Trunnion Lift Arm And Idler Arm Assembly (10 Inches) Diagram

SL15 EST/SL20 EST Trunnion Lift Arm And Idler Arm Assembly (10 Inches) Diagram

SKU: SL15EST-SL20EST-LAIAA10-DG Category: Brand:
ID Image Title SKU Price Quantity Add to Cart
1Thieman 31046 - SL15/SL20 Trunnion Assembly (48 Inches Wide)Thieman 31046 - SL15/SL20 Trunnion Assembly (48 Inches Wide)31046-THIE$752.22
3Thieman 5770 - Hydraulic DamperThieman 5770 - Hydraulic Damper5770-THIE$105.25
6Thieman 8107-004 - SST Flat Washer (0.31)Thieman 8107-004 - SST Flat Washer (0.31)8107-004-THIE$0.76
7Thieman 31059 - Idler Arm (10 Inch)Thieman 31059 - Idler Arm (10 Inch)31059-THIE$83.71
8Thieman 3110-002 - RH Strap Weld (10 Inches)Thieman 3110-002 - RH Strap Weld (10 Inches)3110-002-THIE$50.96
9Thieman 3110-001 - LH Strap Weld (10 Inches)Thieman 3110-001 - LH Strap Weld (10 Inches)3110-001-THIE$50.96
10Thieman 5109 - Adjustment RodThieman 5109 - Adjustment Rod5019-THIE$34.31
11Thieman 31374 - Clevis LH ThreadThieman 31374 - Clevis LH Thread31374-THIE$39.56
12Thieman 31373 - Clevis RH ThreadThieman 31373 - Clevis RH Thread31373-THIE$39.56
13Thieman 5101120 - Closing Assist SpringThieman 5101120 - Closing Assist Spring5101120-THIE$35.33
14Thieman 5507-0001 - Bronze BushingThieman 5507-0001 - Bronze Bushing5507-001-THIE$13.64
15Thieman 31606 - Platform Chain With S-HookThieman 31606 - Platform Chain With S-Hook31606-THIE$38.11
16Thieman 5708-001 - Spring Pin (0.25 x 2 Inches)Thieman 5708-001 - Spring Pin (0.25 x 2 Inches)5708-001-THIE$1.50
17Thieman 5781008 - Retaining RingThieman 5781008 - Retaining Ring5781008-THIE$1.20
21Thieman 9413534 - Lock Nut (0.38-16)Thieman 9413534 - Lock Nut (0.38-16)9413534-THIE$0.76
22Thieman 5793002 - Hex Head Screw (0.38-16 x 1.25 Inches)Thieman 5793002 - Hex Head Screw (0.38-16 x 1.25 Inches)5793002-THIE$0.76
23Thieman 8107-008 - 1 Inch Flat Washer ShimThieman 8107-008 - 1 Inch Flat Washer Shim8107-008-THIE$0.76
24Thieman 8271291 - Zerk FittingThieman 8271291 - Zerk Fitting8271291-THIE$0.76
25Thieman 31284-001 - Left Hand Leveling StrapThieman 31284-001 - Left Hand Leveling Strap31284-001-THIE$70.21
26Thieman 31284-002 - Right Hand Leveling StrapThieman 31284-002 - Right Hand Leveling Strap31284-002-THIE$70.21
27Thieman 5009 - PinThieman 5009 - Pin5009-THIE$19.73
28Thieman 5024 - PinThieman 5024 - Pin5024-THIE$33.71
29Thieman 8121222 - Cotter Pin (0.094 x 0.75 Inch)Thieman 8121222 - Cotter Pin (0.094 x 0.75 Inch)8121222-THIE$0.44
30Thieman 5018 - PinThieman 5018 - Pin5018-THIE$35.84
31Thieman 5504-001 - Steel Platform Bushing For Lift/Idler ArmsThieman 5504-001 - Steel Platform Bushing For Lift/Idler Arms5504-001-THIE$10.66
32Thieman 5504-005 - BushingThieman 5504-005 - Bushing5504-005-THIE$9.54
33Thieman 8107-010 - 1 Inch Flat Washer (2 Inch OD)Thieman 8107-010 - 1 Inch Flat Washer (2 Inch OD)8107-010-THIE$1.50
34Thieman 5702371 - Spring Pin (0.25 x 1.50 Inches)Thieman 5702371 - Spring Pin (0.25 x 1.50 Inches)5702371-THIE$0.44
35Thieman 5017 - PinThieman 5017 - Pin5017-THIE$34.38
36Thieman 8120396 - Flat Washer (0.50)Thieman 8120396 - Flat Washer (0.50)8120396-THIE$0.44
37Thieman 4220240 - Nylon Insert LockThieman 4220240 - Nylon Insert Lock4220240-THIE$0.76
38Thieman 8181635 - Set Screw (0.38-24 x 0.75 Inches)Thieman 8181635 - Set Screw (0.38-24 x 0.75 Inches)8181635-THIE$0.76
39Thieman 2037000 - Mounting AngleThieman 2037000 - Mounting Angle2037000-THIE$56.56

LIFTGATE PARTS ORDERED WITHOUT PROVIDING YOUR LIFTGATE MODEL/SERIAL NUMBERS ARE NOT ELIGIBLE FOR RETURN.

PLEASE NOTE THAT THE PRICES BELOW ARE FOR A SINGLE ITEM. THE QTY COLUMN ON THE DIAGRAM SHOWS THE TOTAL NUMBER YOU WILL NEED FOR A COMPLETE ASSEMBLY.
